Quick Details
-
Custom Sizes & Options of:
-
HM Clear Quartz Cover Slip Microscope Lab Glass Slides
-
Square/rectangles:
-
10mm-700mm
-
Diameters:
-
10mm-600mm
-
Edges:
-
Ground
-
Materials:
-
quartz
-
Standard:
-
ISO9001 and CE/ROHS
-
OEM:
-
Accpet
-
Coating:
-
N/A
Quick Details
-
Brand Name:
-
huamei
-
Model Number:
-
lab glass slides
-
Place of Origin:
-
Liaoning, China
-
Custom Sizes & Options of:
-
HM Clear Quartz Cover Slip Microscope Lab Glass Slides
-
Square/rectangles:
-
10mm-700mm
-
Diameters:
-
10mm-600mm
-
Edges:
-
Ground
-
Materials:
-
quartz
-
Standard:
-
ISO9001 and CE/ROHS
-
OEM:
-
Accpet
-
Coating:
-
N/A

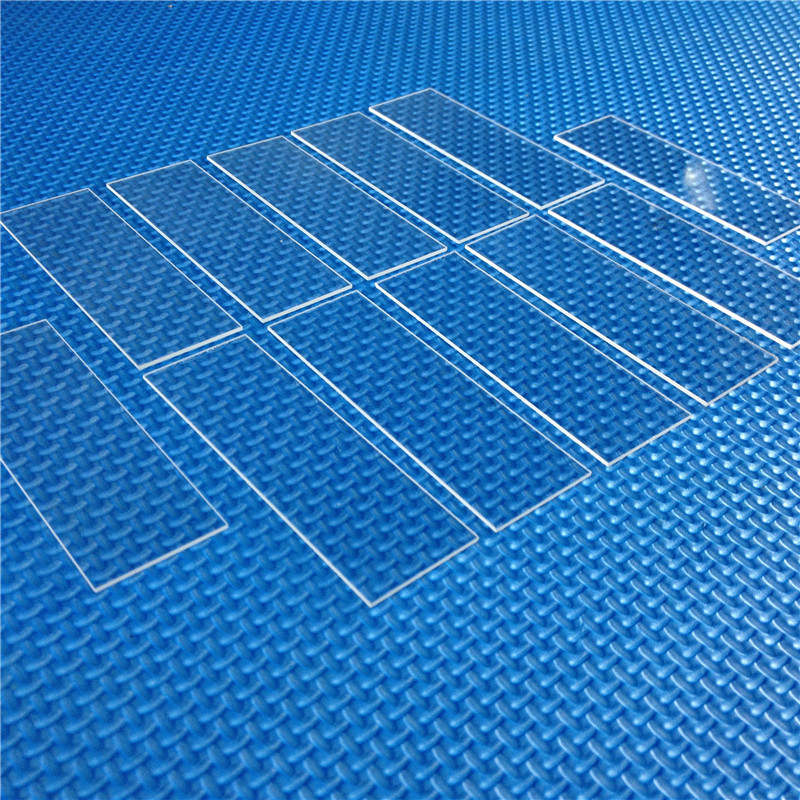

HM Clear Quartz Cover Slip Microscope Lab Glass Slides
1. HM Clear Quartz Cover Slip Microscope Lab Glass Slides is made from high purity quartz sand, it can work under 1200 °C continuously,and in short time can even work under 1450 °C,
softening point is 1650 °C ,and the melting point is 1650-1800°C.
2. Corrosion resistant, Except hydrofluoric acid, Quartz Glass Plate do not react with any acid and base except hydrofluoric acid .the stability is 30 times of the ceramic ,and 150 times of stainless steel .
3. Excellent thermal shock stability
4. High transmission to 85%
5. Electric insulation ,it is 10000 times of usual glass.
|
Compressive Strength |
>1100Mpa |
Coefficient of thermal expansion |
5.5×10-7cm/cm.°C |
|
Bending Strength |
67Mpa |
Hot work temperature |
1750~2050°C |
|
Tensile Strength |
48.3Mpa |
The temperature for a short time |
1500°C |
|
Poisson's Ratio |
0.14~0.17 |
The temperature for a long time |
1200°C |
|
Elastic Modulus |
71700Mpa |
Resistivity |
7×107Ω.cm |
|
Shearing Modulus |
31000Mpa |
Dielectric Strength |
250~400Kv/cm |
|
Moths Hardness |
5.3~6.5(Moths Scale) |
Dielectric Constant |
3.7~3.9 |
|
Deformation Point |
1350°C |
Dielectric absorption coefficient |
<4×104 |
|
Specific Heat(20~350°C) |
670J/kg °C |
Dielectric loss coefficient |
<1×104 |
|
Thermal Conductivity(20 °C ) |
1.4W/m °C |
Typical Mechanical Property of optical flat of fused quartz glass |
|
1.sample :
We could like to give you suitable suggestion on optical flat of fused quartz glass to your detail application.
supply sample as required within 2-5days .
as the sample,we usually deliveried it by EMS,DHL,or SF-express.
So,customer can receive the sample within 4-10days .
2.OEM
accept OEM orders
3. after-sales service
We promise that we can change or refund the products if there is any quality problem.
