Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
BL4235
-
Torque:
-
230~490 g-cm
-
Product Name:
-
BL4235 bldc motor
-
Motor type:
-
PMDC Brushless Motor
-
Power:
-
up to 35W
-
Shaft diameter:
-
diameter 5mm
-
Feature:
-
Inrunner bldc motor
-
Drive:
-
Built-in driver board with hall sensor
-
Stator case diameter:
-
42 mm
-
Stator body length:
-
35 mm
-
Voltage:
-
from 8V to 30V DC free custom
-
Bearing:
-
Ball bearing
Quick Details
-
Speed(RPM):
-
3000RPM - 10000RPM
-
Continuous Current(A):
-
0.5- 5 A
-
Efficiency:
-
60% - 85%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foneacc Motor
-
Model Number:
-
BL4235
-
Torque:
-
230~490 g-cm
-
Product Name:
-
BL4235 bldc motor
-
Motor type:
-
PMDC Brushless Motor
-
Power:
-
up to 35W
-
Shaft diameter:
-
diameter 5mm
-
Feature:
-
Inrunner bldc motor
-
Drive:
-
Built-in driver board with hall sensor
-
Stator case diameter:
-
42 mm
-
Stator body length:
-
35 mm
-
Voltage:
-
from 8V to 30V DC free custom
-
Bearing:
-
Ball bearing

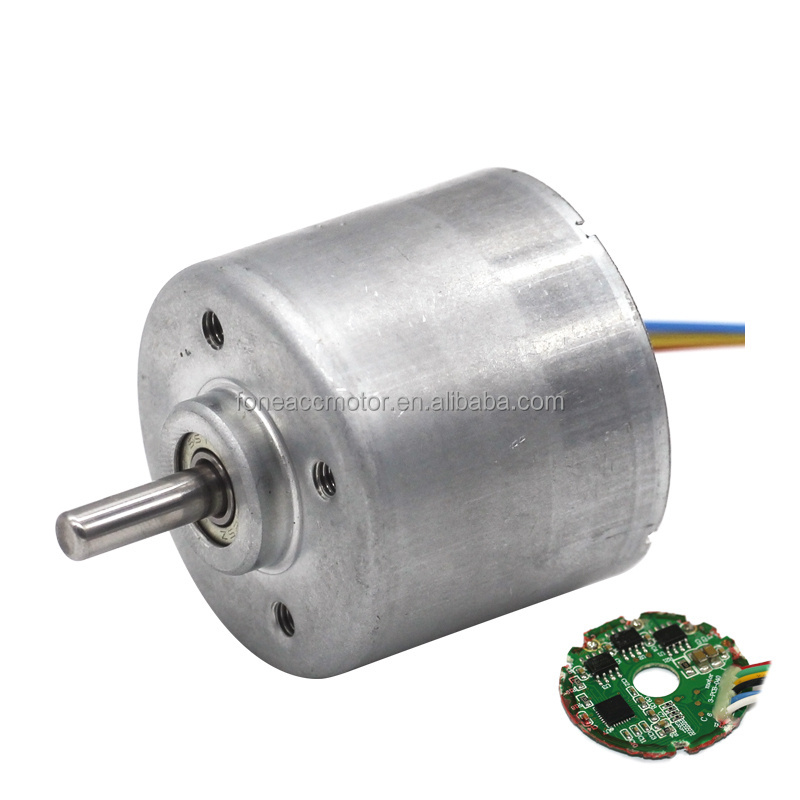

BL4235 Diameter 42mm cylindrical Small Inrunner Brushless DC BLDC Motor with internal driver controller with hall sensor
Key features:
| - Model Number: BL4235I
| - Shell Stator Size : Ø42* L 35 mm(Ø 1.65 inch * 1.38 inch)
| - Shaft : Ø5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 5W - 30W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 480 gf-cm(47 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - PWM pulse wide speed range
| - Clockwise/counter-clockwise rotation
| - FG speed feedback signal
| - Low EMC | - Low noise
| - Long lifespan: up to 20000hrs
| - Over-current protection | - Over-voltage protection | - Under-voltage protection
BL4235I dc motor data examples:
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
| V | R/min | A | R/min | A | gf·cm | W | % | gf·cm | A | ||
| BL4235I-V1 | 8~26 | 12 | 2,860 | 0.21 | 2,050 | 1.16 | 410.2 | 8.63 | 62.0 | 1,439 | 2.50 |
| BL4235I-V2 | 8~26 | 24 | 6,370 | 0.3 | 5,100 | 1.17 | 357.1 | 18.70 | 66.6 | 1,794 | 2.50 |
| BL4235I-V3 | 8~26 | 24 | 9,400 | 0.53 | 8,530 | 1.16 | 184.2 | 16.13 | 57.9 | 1,989 | 2.50 |
| BL4235I-V4 | 8~26 | 24 | 5,539 | 0.25 | 4,393 | 1.41 | 561.5 | 25.33 | 74.8 | 2,697 | 2.50 |
| BL4235I-V5 | 8~26 | 24 | 8,455 | 0.33 | 7,580 | 1.64 | 408.2 | 31.76 | 80.7 | 3,947 | 2.50 |
| BL4235I-V6 | 8~16 | 12 | 2,860 | 0.21 | 2,288 | 0.874 | 282.5 | 6.64 | 63.3 | 14,122 | 3.53 |
| BL4235I-V7 | 8~26 | 18 | 4,290 | 0.25 | 3,518 | 1.127 | 381.3 | 13.77 | 67.9 | 2,119 | 5.12 |
| BL4235I-V8 | 8~26 | 24 | 5,200 | 0.3 | 4,160 | 1.214 | 457.1 | 19.52 | 67.0 | 2,286 | 4.87 |
Dimensions and performance curves of BL4235I dc motor for reference:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
