Quick Details
-
Model Number:
-
RS-GYL-*-1
-
Type:
-
Optical Rain Sensor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Theory:
-
Principle of Optical Sensing
-
Output:
-
RS485/Pulse output
-
Product name:
-
Optical Rain Sensor
-
Sense of rain diameter:
-
6CM
-
Supply voltage:
-
10~30V DC
-
Accuracy:
-
±5%
-
Max. instantaneous rainfall:
-
24mm/min
-
Working temperature:
-
-40~60℃
-
Working humidity:
-
0~99%RH (non-condensing)
-
Working pressure range:
-
±10%
-
Power consumption:
-
<0.24W
-
Resolution:
-
0.1mm
Quick Details
-
Usage:
-
rain sensor
-
Mounting Type:
-
Optical Rain Sensor
-
Description:
-
Optical Rain Sensor, Optical Rain Sensor
-
Model Number:
-
RS-GYL-*-1
-
Type:
-
Optical Rain Sensor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Theory:
-
Principle of Optical Sensing
-
Output:
-
RS485/Pulse output
-
Product name:
-
Optical Rain Sensor
-
Sense of rain diameter:
-
6CM
-
Supply voltage:
-
10~30V DC
-
Accuracy:
-
±5%
-
Max. instantaneous rainfall:
-
24mm/min
-
Working temperature:
-
-40~60℃
-
Working humidity:
-
0~99%RH (non-condensing)
-
Working pressure range:
-
±10%
-
Power consumption:
-
<0.24W
-
Resolution:
-
0.1mm

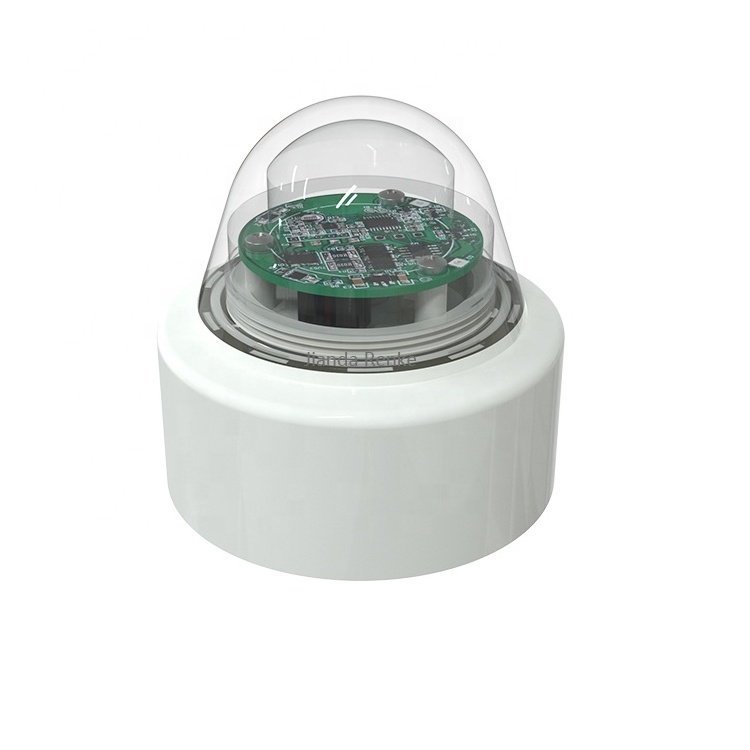

High Precision RS485 Output Weather Station Optical Rain Sensor For Irrigation
Product Description
Optical rain sensor family is a reliable and cost-effective choice for precipitation measurements.Optical sensing technology overcomes many of the shortcomings of conventional tipping bucket rain gauges. The sensor works in mobile environments, there is no collecting funnel to clog with leaves, and the round shape makes it essentially self-cleaning.
Parameter of
Optical rain sensor
|
Supply voltage
|
10~30V DC
|
|
Sense of rain diameter
|
6CM
|
|
Power consumption
|
＜0.24W (12V DC, current less than 20mA)
|
|
Resolution
|
0.1mm
|
|
Accuracy
|
±5%
|
|
Maximum instantaneous rainfall
|
24mm/min
|
|
Working temperature
|
-40~60℃
|
|
Working humidity
|
0~99%RH (non-condensing)
|
|
Working pressure range
|
Standard atmospheric pressure ±10%
|
|
Output method
|
RS485/pulse output
|
Detailed Images
Feature of
optical rain sensor
1. Built-in multiple optical probes, based on the principle of optical sensing, to accurately measure rainfall.
2. Compared with mechanical rain gauges, optical rain gauges are smaller, more sensitive, easy to maintain, and more intelligent.
3. The equipment adopts low power consumption design and can work normally under high temperature and high humidity environment.
4. The optical rain sensor is smaller, more sensitive, reliable, smarter, and easier to maintain.
5. The optical rain sensor is RS485/pulse output
Installation Notes
1. Install the rain sensor in an open place, and there should be no obstructions around and above it.
2. Install the device on the bracket in the accessories first, and fix the device and the bracket with 4 M4*35 304 stainless steel screws and nuts.
3. Install the bracket to the position to be installed (the position to be installed requires a φ5 round hole). The bracket should be installed horizontally. Finally, the bracket and equipment are fixed by three M4*10 304 stainless steel screws and nuts.
