Quick Details
-
Span:
-
2515mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JNDO
-
Warranty:
-
1 Year
-
Product name:
-
capacity 1000kg pickup crane
-
Power:
-
12V DC 310amps
-
Line speed with no load:
-
8.6m/min
-
Rotation with Brake:
-
360 degree manual
-
Lifting cable:
-
7.2mm*10m
-
Gross Weight:
-
140kg
-
Electric winch:
-
6000lbs
-
Mounting base:
-
300mm*300mm*14mm
-
Switch cable:
-
1.8m
-
Finish:
-
hot-galvanized
-
Certification:
-
ISO CE
Quick Details
-
Application:
-
Construction
-
Rated Loading Capacity:
-
1000kg
-
Max. Lifting Height:
-
10m
-
Span:
-
2515mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JNDO
-
Warranty:
-
1 Year
-
Product name:
-
capacity 1000kg pickup crane
-
Power:
-
12V DC 310amps
-
Line speed with no load:
-
8.6m/min
-
Rotation with Brake:
-
360 degree manual
-
Lifting cable:
-
7.2mm*10m
-
Gross Weight:
-
140kg
-
Electric winch:
-
6000lbs
-
Mounting base:
-
300mm*300mm*14mm
-
Switch cable:
-
1.8m
-
Finish:
-
hot-galvanized
-
Certification:
-
ISO CE
Product Description

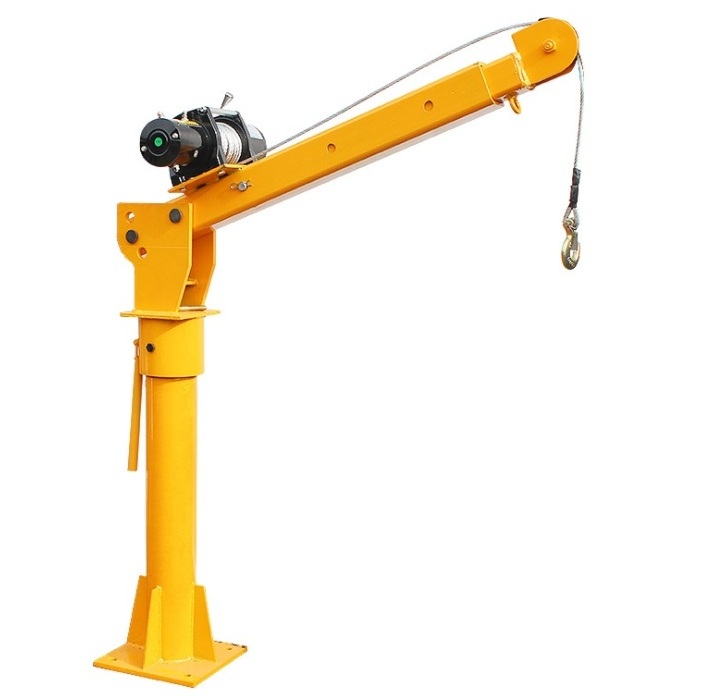

6000lbs electric winch 1000kg small pickup trailer vehicle mounted crane
JN1000 is one of our professional products, with 12/24 volt DC as the power. It is widely used in pick-up trucks, caravan cars, loading docks, platforms etc. With outstanding features such as structurally compact, small sized, light weighted, and minimal space required, JN1000 is a good helper for lifting goods equal to or less than 1000kg in weight.
Can work with 12v 6000lbs electric winch or 220v 1phase electric hoist.
parameters of trailer mounted crane
|
Product name
|
Mini truck crane
|
Model
|
JN1000
|
|
Line speed(no load)
|
8.6m/min,single line
|
Rotation with brake
|
360° manual
|
|
Lifting capacity
|
1000kg
|
Power
|
12V DC 310amps
|
|
Lifting cable
|
Φ7.2mm×10m
|
Lifting height
|
3000mm
|
|
Reach
|
2515mm
|
Gross weight
|
140kg
|
|
Switch cable
|
4.2m
|
Mounting base
|
300mm×300mm×14mm
|
|
Finish
|
Hot-galvanized
|
Mounting bolt hole pattern
|
220mm×220mm
|
