Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System
Hanging Chain Conveyor Overhead Conveying System

Hanging Chain Conveyor Overhead Conveying System

FOB Reference Price: Get Latest Price
≥1 Sets
US $999
≥100 Sets
US $899
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/110V/380V, 220V/380 Customized
Power:
2.2KW
Dimension(L*W*H):
Customized
Weight (KG):
1000
Operating frequency:
50~60HZ
Speed:
adjustable
Operation:
Automatic
Application:
Powder Coating or Painting
Weight:
1 ton

Quick Details

Machine Type:
overhead conveyor system, Coating Equipment
Place of Origin:
Zhejiang, China
Brand Name:
COLO
Voltage:
220V/110V/380V, 220V/380 Customized
Power:
2.2KW
Dimension(L*W*H):
Customized
Weight (KG):
1000
Operating frequency:
50~60HZ
Speed:
adjustable
Operation:
Automatic
Application:
Powder Coating or Painting
Weight:
1 ton
Products Description

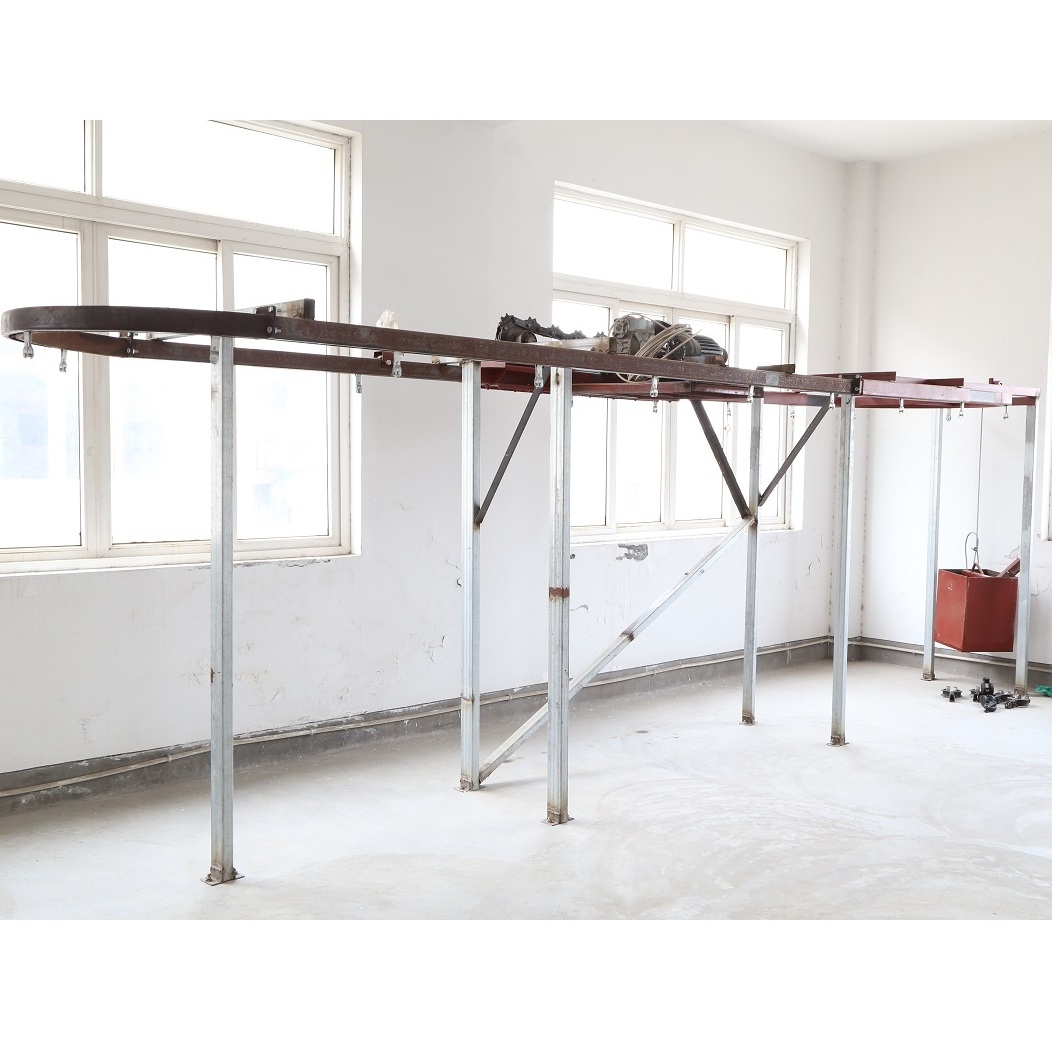

Hanging Chain Conveyor Overhead Conveying System

Overhead conveyor system is the most commonly used solution for wet paint or powder coating finishing. The type of conveyor selected for your operation will depend on the weight, size and even the shape of the items being transported. We provide conveyor systems based on your specific products, designs varies from product weight, size and even the shape.
Conveyor System is driven through a geared motor unit to the track chains. Pusher dog in the track throw the chains. Then make the chain moving. Track type ensures free and smooth transmission of power COLO's conveyor system has features of *Longer Chain Life *Smoother Operation *Quieter Operation *Less Downtime *Greater Reliability
Specification
Main Components
Description
Light-weight Chain
QXG150 series, QXG200 series, QXG250 series, loading capacity from 15kgs to 100kgs.
Heavy-duty chain for I beam
X348, X458. X678 conveyor chain, loading capacity from 100kgs to 500kgs.
Track
includes straight rail, up-down curved rail, horizontal curved rail, length can be cut as needed on site
I Beam
Rivetless chain are drop-forged from high strength carbon steel to minimize the chain stretch and maximize service life
Drive Unit
moves the chain with smoothness and low noise.
Tension
Maintain the conveyor always as original tensioning state, prevent the distortion from the pulling and temperature effect.
Hangers
We supply various types of hangers : Y type, C type, U type, Cross Type, Disc Type, etc.The choice depends on the shape of being
coated workparts.
Light Weight Overhead Conveyor System

* Single point loading capacity less than 100kgs

* Applied to long-distance transportion in continuous space with low noise, simple installation and maintenance

* Can endure the the harsh chemicals used during the washing, degreasing, phosphating, etc. Able to withstand high temperature during curing process.
Conveyor System
Curved Track
Traight Track
Tension
Drive Unit
QXG Series Conveyor Chain
Oil Lubrication Cup
X type, Y type Hangers
Rotating Hangers

X348 X458 X678 I Beam Heavy-duty Conveyor System

* Apply to Heavy-duty overhead conveyor of powder coating or painting line, loading capacity from 100-500kgs.

* Rivetless chain are drop-forged from high strength carbon steel to minimize the chain stretch and maximize service life

Trolley
Chain
I Beam System
Application
Semi-auto powder coating line we install in Malaysia. Mono cyclone booth with a trolley oven
Automatic powder coating plant we installaed in the USA.
Plstic cyclone powder coating booth exported in Saudi Arabia,customer build on their own.
Semi-auto powder coating line we installed in Thailand.Mono-cyclone powder booth, trolley oven type,to coat the steels.
Filter powder recovery type automatic powder booth exported in Kenya,cost-effective powder booth.
Full automatic powder coating line with automatic conveyor we installed in Colimbia.
Recommend Products
Company Introduction
Packing&Shipping
After Sales Service

1. All spare parts for powder coating machine are avaiable, positive time after-sales servive for customer except sleeping time.
2. Refund you money if goods are bad when you received it.
3. One year warranty of machine, during one year,free parts send you in 1 work day if because of quality problem.
4. Machine assemble detail guide,machine operation using manual,video guide.Help customer 0 difficult to operate our system.
5. We have some distributions in abroad,they can supply you fast service.
6. CE,Rohs,LVD,ISO certificate avaiable,customer can import our machines easily.
7. Trade Assurance agrement 5% discount for each week delay delivery time.
