Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RZX
-
Model Number:
-
UHF RFID Vehicle Windshield Tag
-
Product name:
-
UHF Windshield Vehicle Tag
-
Protocol:
-
ISO181000-6C, EPC G1 G2
-
Chip:
-
Alien H9/MONZA R6P
-
Antenna Size:
-
93*19mm
-
Wet Inlay/ Label Size:
-
97*22mm/customized
-
Reading range:
-
2-8M (Related to reader performance and working environment)
-
IC Life:
-
100,000 Programming cycles, 10 years data retention
-
Working Temperature:
-
-20~+80℃
-
Printing:
-
Full Color Printing, Logo, Barcode, QR code, etc
-
Application:
-
Access control, vehicle car management
Quick Details
-
Special Features:
-
Waterproof / Weatherproof, RFID Windshield Sticker, UHF Label, rfid tag uhf parking, rfid Windshield label, rfid windshield tag, rfid vehicle windshield tag, vehicle rfid tag, uhf rfid vehicle tag, rfid windshield sticker
-
Communication Interface:
-
RFID
-
Frequency:
-
860-960mhz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RZX
-
Model Number:
-
UHF RFID Vehicle Windshield Tag
-
Product name:
-
UHF Windshield Vehicle Tag
-
Protocol:
-
ISO181000-6C, EPC G1 G2
-
Chip:
-
Alien H9/MONZA R6P
-
Antenna Size:
-
93*19mm
-
Wet Inlay/ Label Size:
-
97*22mm/customized
-
Reading range:
-
2-8M (Related to reader performance and working environment)
-
IC Life:
-
100,000 Programming cycles, 10 years data retention
-
Working Temperature:
-
-20~+80℃
-
Printing:
-
Full Color Printing, Logo, Barcode, QR code, etc
-
Application:
-
Access control, vehicle car management

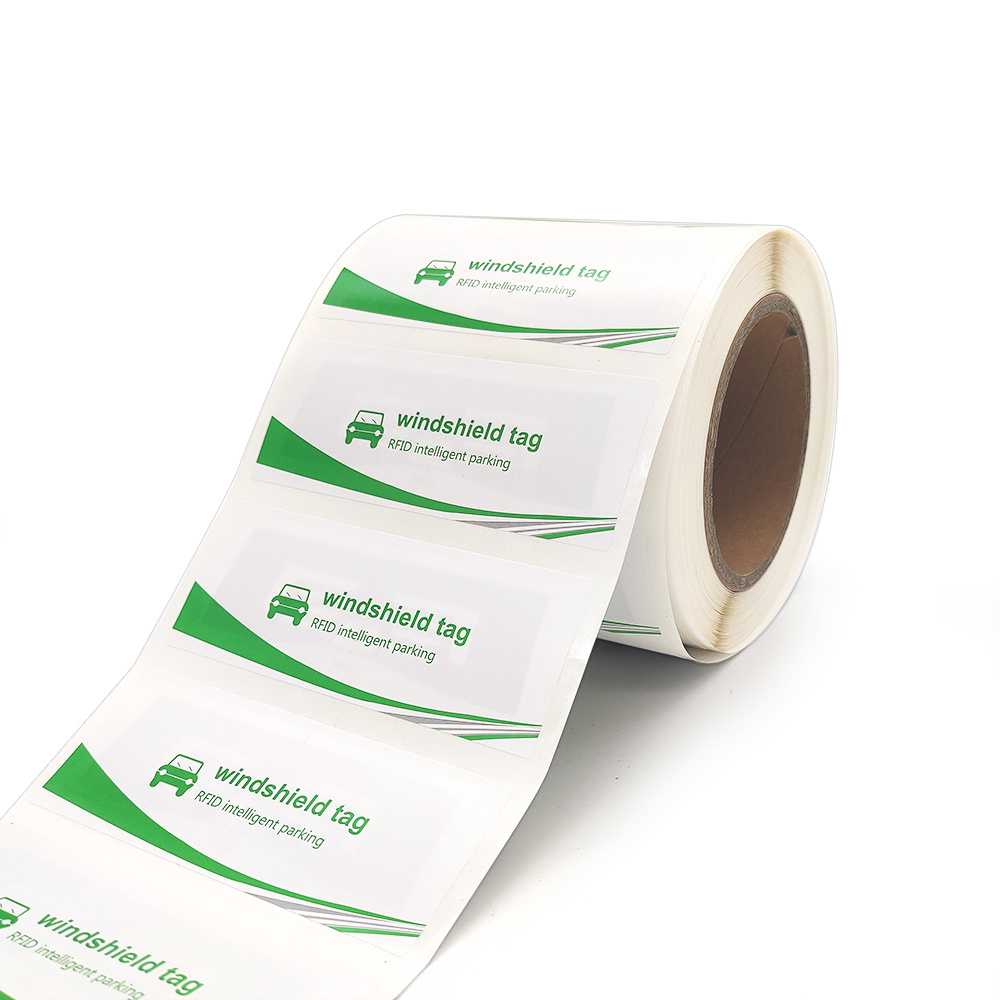

Hot Selling RFID Label Anti-fake Tamper Proof RFID Windshield Sticker UHF Vehicle Label Tag
Products Description
RFID
Windshield
Vehicle Tags
are designed for automatic vehicle identification applications, such as electronic toll collection, electronic vehicle registration or parking, security access and fleet management.
|
Chip
|
H9/MONZA R6P/ Based on your needs
|
|
Frequency
|
860～960MHz
|
|
Surface Material
|
Coated Paper/ PET/PVC/PP/customization
|
|
Working Mode
|
Passive
|
|
Read Range
|
UHF:1-10m;(depends on the reader and antenna)
|
|
IC Life
|
100,000 Programming cycles, 10 years data retention
|
|
Operating temperature/humidity
|
-25~50℃/20%~80% RH
|
|
Storage temperature/humidity
|
+23°C±5°C/ 50%±10% RH (Without condensation).
|
|
Antenna
|
Aluminum Etching, 93*19mm
|
|
Wet inlay/Label Size
|
97*22mm or customization
|
|
Printing/Craft
|
Single color or Multi-color Printing, Barcode or QR Code printing, Data encoding, full cutting, half cutting, etc.
|
|
Sample
|
Sample is free for your quality test
|
|
Protocol
|
ISO/IEC 18000-6C; EPC Class1 Gen2
|
|
Packaging
|
1000-5000pcs/roll, 4 rolls /carton
|
|
Place of origin
|
Shenzhen, China
|
|
Application/Solution
|
Supply chain management, logistics and distribution product verification, Vehicle management, ETC pass way luggage tracking, asset tracking, authentication and serialization etc.
|
|
|
Event Access and Branding/Social Media/Retail
|
|
|
Environment/Games & Toys Location/Electronics/Trade Shows
|
|
|
Events/Call request/Business Cards
|
RFID (Radio Frequency Identification) technology provides simplicity for Logistics, Identification, Assets Tracking, Inventory Management, even in e-Payment, E-ticket etc., with a low cost paper label tag. With the advance of UHF technology , it is become more prosperity in applications in Aviation, healthcare, retail apparel, supply Chain, even in emerging technologies.
Details Images
How to Distinguish Labels (Dry Inlay/ Wet Inlay/ Labels)?
RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags.
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags.
RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693. RZX has technicians and offer antenna design service to meet various customer requirements.
RFID
Wet Inlay
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + glue + release paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/ printed label for cost saving. Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
RZX has technicians and offer antenna design service to meet various customer requirements.
RFID Label
RFID Label
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna +
chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
More details or any question can contact
Shirley
directly.
RZX RFID Labels
1.Support to Customize the size and the printing
2.For Supermarket, File, Logistic, Apparel, Warehouse, Asset, etc. Management
3.Reading and Writing distance up to 15 meters
4.Can be rewritten 100000 times/Data can be saved for 10 years
2.For Supermarket, File, Logistic, Apparel, Warehouse, Asset, etc. Management
3.Reading and Writing distance up to 15 meters
4.Can be rewritten 100000 times/Data can be saved for 10 years
5.Different Labels can be used for Liquid Products, Metal Products, Fabric Products, all plastic material Products, you
can tell us your request, then we can suggest which one is the best choose.
Different RFID Tags can be used in different environments and different applications. RZX has many types LF, HF, UHF Tags for you to choose. Here are some top selling RFID tags for you to refer.
More details or any question can contact Shirley directly.
Application Area
RFID Windshield Vehicle Tags
are designed for automatic vehicle identification applications, such as electronic toll collection, electronic vehicle registration or parking, security access and fleet management.
