When illuminated, indicates that the 24 volt power supply is connected and the power switch is in the ON position.
LOCK OUT (ERROR):
When flashing, this indicates that the control module cut power to the solenoid valve(s) and the unit has been locked out of operation (due to failed ignition or
lack of a flame). The unit will not operate again until the power has been cycled OFF then back ON.
When flashing, this indicates that the control module cut power to the solenoid valve(s) and the unit has been locked out of operation (due to failed ignition or
lack of a flame). The unit will not operate again until the power has been cycled OFF then back ON.

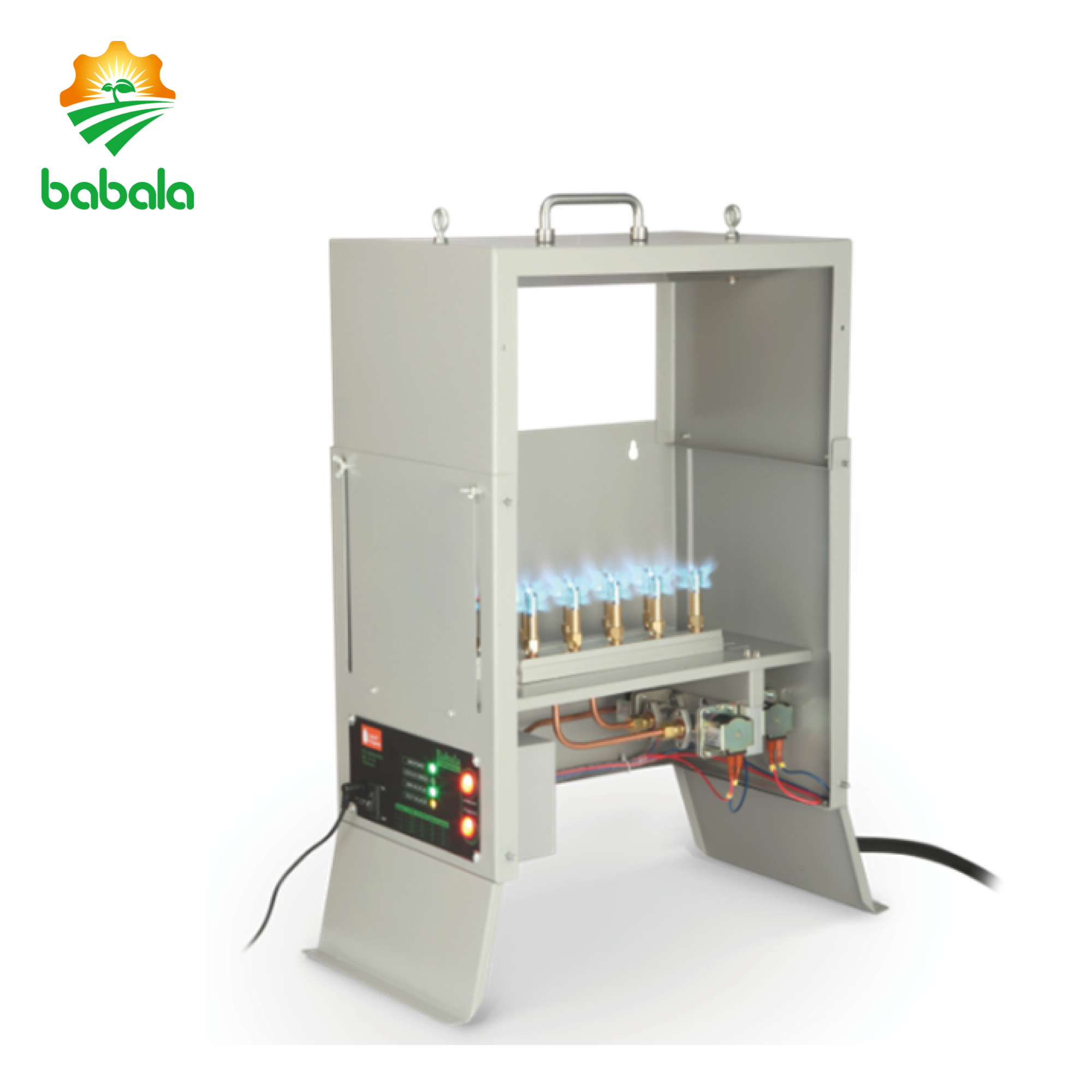

MAIN VALVE ON:
When illuminated, the unit is operating and producing
CO2.
When illuminated, the unit is operating and producing
CO2.
PILOT VALVE ON (for 10 burner units only):
When power is applied, the intelligent electronic ignition module will provide a spark for a period of 15 seconds while the pilot solenoid is also energized.The LED indicator will remain illuminated while the
solenoids are active during normal operation of CO2
production.
production.
