- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
100L-2000L
-
Weight (KG):
-
800 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LENO
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
customized
-
Power (kW):
-
7.5 kW
-
Product name:
-
Vaccum mixing tank
-
Homogenizer:
-
High Shearing Rotor
-
oil tank:
-
25-1000L
-
water tank:
-
40-1600L
-
volume:
-
50-2000L
-
Usage:
-
Mixing Paste Proucts
-
Function:
-
High Shear Dispersing
-
Origin:
-
China Wenzhou Leno Machinery
Quick Details
-
Barrel Volume (L):
-
50 L
-
Max. Loading Volume (L):
-
2000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 3400 r.p.m
-
Max. Loading Capacity:
-
100L-2000L
-
Weight (KG):
-
800 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LENO
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
customized
-
Power (kW):
-
7.5 kW
-
Product name:
-
Vaccum mixing tank
-
Homogenizer:
-
High Shearing Rotor
-
oil tank:
-
25-1000L
-
water tank:
-
40-1600L
-
volume:
-
50-2000L
-
Usage:
-
Mixing Paste Proucts
-
Function:
-
High Shear Dispersing
-
Origin:
-
China Wenzhou Leno Machinery

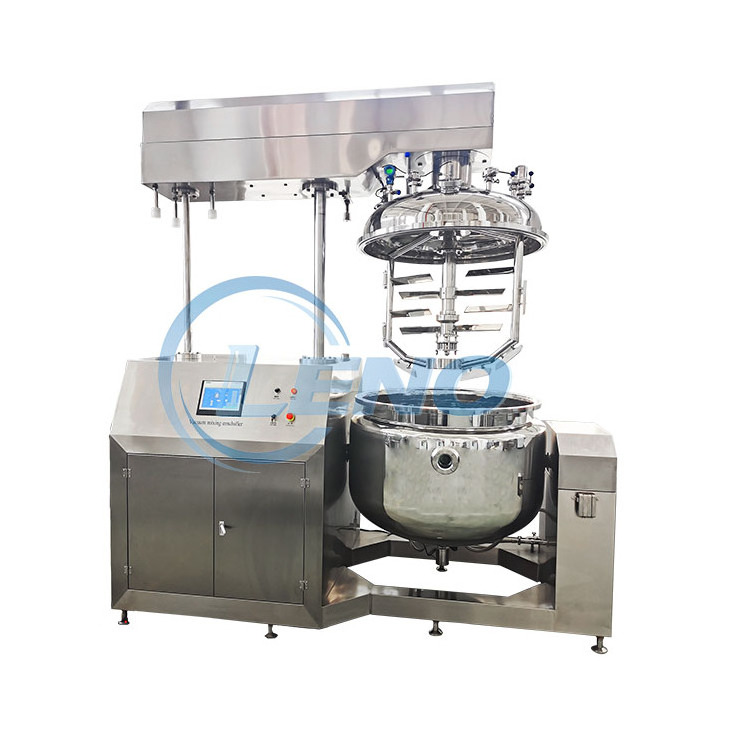

Food Grade Stainless Steel Vacuum Emulsion Mixer Chemical Liquid Emulsifier Mixing Tank
| Food Grade Stainless Steel Vacuum Emulsion Mixer Chemical Liquid Emulsifier Mixing Tank | |||
| Profile type | Emulsifying Tank | Oil Tank | Water Tank |
| material | SS316L | ||
| Volume | 20L-2000L (Customized) | ||
| application | Food, pharmaceutical industry, chemical industry, etc | ||
| Working pressure | Vacuum | Normal Pressure | Normal Pressure |
| Surface | Mirror, Ra<0.4μm | ||
| Heating mode | electric heating | ||
| Agitator Type | scraped wall mixer+emulsify mixer | dispersing mixer | dispersing mixer |
| Mixer speed | 0-3400RPM/0-60RPM | 1400RPM | 1400RPM |
| PARTS DETAILS | 1 .Vacuum Pump | ||
| 2 .control Box | |||
| 3 .Various types of CIP cleaners | |||
| 4 .Tilting type or vertical type | |||
| 5 .Inlet and Outlet sanitary valve. | |||
| 6 .Stainless steel platform | |||
Food Grade Stainless Steel Vacuum Emulsion Mixer Chemical Liquid Emulsifier Mixing Tank
It’s used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream;
boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3400 r/min.
| Technical Parameters | ||||||
| Model | Volume(L) | Emulsify Mixer Tank | Size(L×W ×H) | |||
| Emulsify motor(KW) | Emulsify speed(RPM) | Scraped wall motor(KW) | Scraped wall speed(PRM) | |||
| LNVE-10 | 10 | 1.1 | 0-3400 | 0.37 | 0-60 | 1200 ×600×1300 |
| LNVE-20 | 20 | 1.5 | 0.75 | 1500 ×800×1500 | ||
| LNVE-50 | 50 | 3 | 0.75 | 2750 ×2100×1900 | ||
| LNVE-100 | 100 | 3 | 1.5 | 2800 ×2150×2100 | ||
| LNVE-200 | 200 | 4 | 1.5 | 2850 ×2200×2200 | ||
| LNVE-300 | 300 | 5 | 2.2 | 3000 ×2600×2500 | ||
| LNVE-500 | 500 | 7.5 | 2.2 | 3800 ×2800×2700 | ||
| LNVE-750 | 750 | 11 | 3.7 | 3900 ×3900×2900 | ||
| LNVE-1000 | 1000 | 11 | 3.7 | 3900 ×3400×3150 | ||
| LNVE-2000 | 2000 | 22 | 7.5 | 4850 ×4300×3600 | ||
| We can customize the equipment according to customer requirements. | ||||||
| Q1 | Are you trade or manufacturer? |
| A |
We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A |
We are able to discuss technical details and offer suggestions over the phone in English.
You can get the answers in minutes, instead of days. |
| Q3 |
What's the difference between Ready-To-Ship and Customized products? |
| A |
Some of RTS standard products are in stock and ready to ship in 2-3 days.
|
| Q4 | What is the payment terms? |
| A |
We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A |
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 |
How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
