- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Cetificate:
-
CE, FCC, ROHS
-
component:
-
AC adapter, valve, controller, sensor cable
-
Connect valve unit:
-
automatic
-
Usage:
-
Industry,home
-
Material:
-
plastic, Cu,FR-3,Nickelage
-
Power bank:
-
chargerable
-
Style:
-
Portable.mini
-
Natural life:
-
5 years at least
-
Alarm time:
-
continue
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIDAKA
-
Model Number:
-
WLD-806
-
Warranty:
-
1 year
-
Cetificate:
-
CE, FCC, ROHS
-
component:
-
AC adapter, valve, controller, sensor cable
-
Connect valve unit:
-
automatic
-
Usage:
-
Industry,home
-
Material:
-
plastic, Cu,FR-3,Nickelage
-
Power bank:
-
chargerable
-
Style:
-
Portable.mini
-
Natural life:
-
5 years at least
-
Alarm time:
-
continue

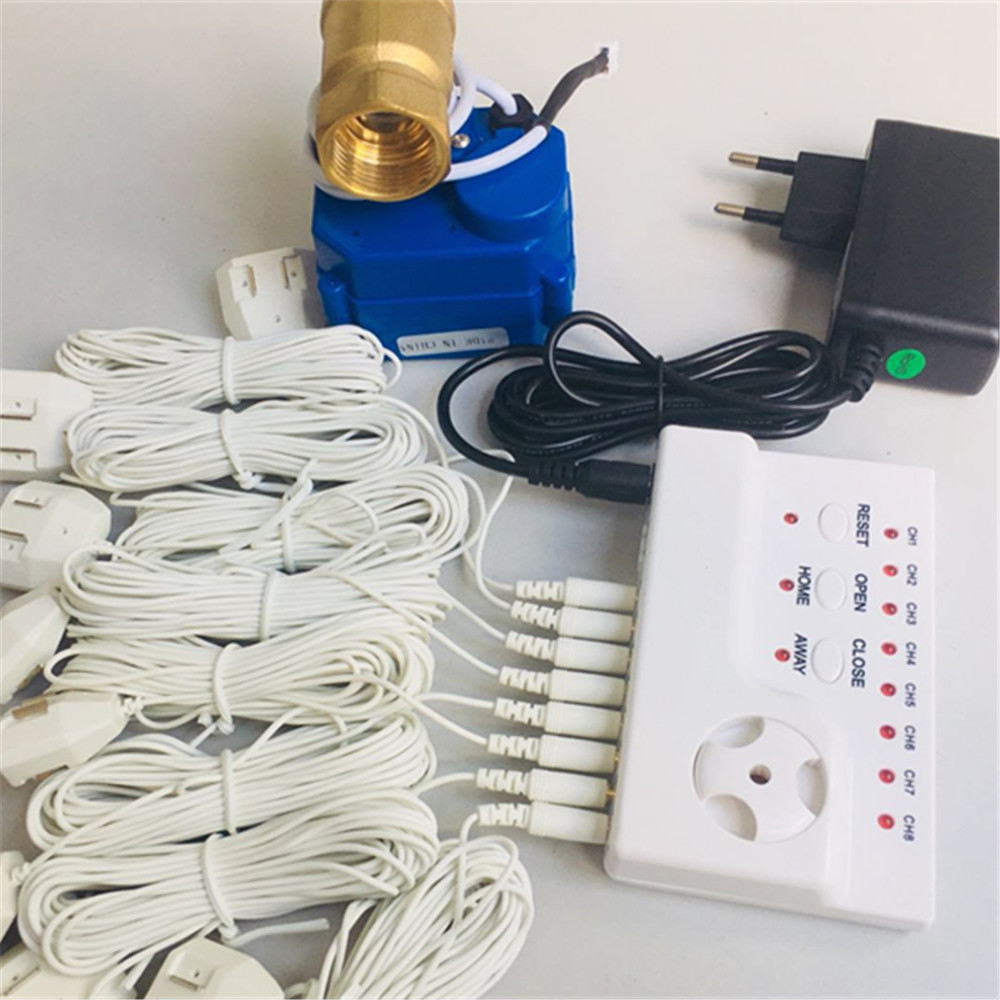

HIDAKA Miniature Water Sensors with electronic automatic shut off valve water sensor alarm
1). Specification:
|
Model Number: |
WLD-806 |
|
Brand Name: |
HIDAKA |
|
Accessories: |
control unit , valve , sensor cable and AC adapter ( power supply ) |
|
Sensor cable : |
8 pcs |
|
AC adaptor 12V |
CE,UL approval |
|
Length of sensor cable: |
6 meters |
|
Size of valve: |
1'',1/2'',3/4'' for your selection |
|
Indicators : |
1.Power indicator (AC adaptor) 2.Leak detect point indicators – 8pcs |
|
Alarm time : |
continue |
|
Working Voltage: |
12V Max. |
|
Working current: |
80mA |
|
Standby current: |
5mA |
|
Alarm startup time: |
1-2 second |
|
Output electric potential: |
100dBu |
|
Valve close startup time: |
1-3 second |
|
Valve open startup time: |
1-3 second |
|
Natural life: |
at least 5 years |
|
Hot selling : |
E.U/USA/AUS |
How it works:
1. When a leakage is detected, the Miniature Water Sensors Systems will make an audible alarm with a flashing LED and automatic shut off the electronic ball valve.
2. The alarm is keeping “beep” until you hear it and deal with the water leak or water overflow. Then press the ”open” button to open the valve and “reset” button to make the gear ready for next potential leakage.
Installation:
Step 1.Place the water leak alarm on a dry surface, or hang on the wall.
Step 2.Press the test button, the unit is working if you hear a "beep, beep, beep" alarm and the red LED is flashing.
Step 3.Plug the water sensor into the Φ 3.5mm socket of water leak alarm, and place the sensor on the ground or anywhere you would like it to detect potential water leakages. As shown in picture-2
Industry Data
The insurance industry estimates the annual property damage caused by water:
• $500,000,000 to buildings.
• $150,000,000 by washing machine hose damage.
• $5,000,000 by leaking hot water tank.
• 250,000 families with ruined homes in the US.
• One broken pipe can deliver a flood in excess of 5,000 gallons over an 8 hour period.
• One broken flexible ice maker tube can cause many thousands of dollars in damage.
Recommended Places of Application-Put the Miniature Water Sensors Systems where you have water issues:
|
Residential Application: |
Commercial Applications: |
|
Sump Pits |
Computer Rooms |
|
Washing machines |
Storage Facilities |
|
Dish washers |
Libraries/Museums |
|
Ice makers |
Warehouses |
|
Basement walls |
Mechanical Rooms |
|
Air conditioners |
Commercial Buildings |
|
Hot water tanks |
Air Handlers |
|
Water heater |
Piping Systems |
|
Sink drains |
The central air-conditioning system |
|
Piping |
Dehumidifiers |
|
Bathroom |
Laundry |
|
Floor drains |
Boiler |
|
Toilets |
Condo & Apartment Complex & Hotel |
Warning : the control unit (alarm) is NOT waterproof; please DON’ T put it in water.
The average cost of water damaging events continues to increase each year. The resulting cost of repair and restoration from the damage is only part of the story and the associated costs that will affect your lifestyle and finances. Avoid water damages with our superior and high quality products. Trust your property, valuables and peace of mind to the best ELECTRONIC Miniature Water Sensors Systems with Visual & Audible Alarm shut off valve products
1) Professional test before shipping
2) 12 Months Warranty
3) Competitive price but high quality
4) OEM&ODM order welcome, customized logo MOQ
5) Good after-sale service & 1 years technology service support
6) Fast delivery
