Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
StrongFirst
-
NOMINAL FREQUENCY:
-
1000+100KHz
-
BANDWIDTH(-3dB):
-
200KHz
-
Capacitance:
-
1200±20%pF
-
IMPEDANCE(1MHz)Zr:
-
100~500Ω
-
OPERATING TEMPERATURE:
-
+4~+100°C
-
STORAGE TEMPERATURE:
-
-20~+85°C
Quick Details
-
Mounting Type:
-
in pipe
-
Description:
-

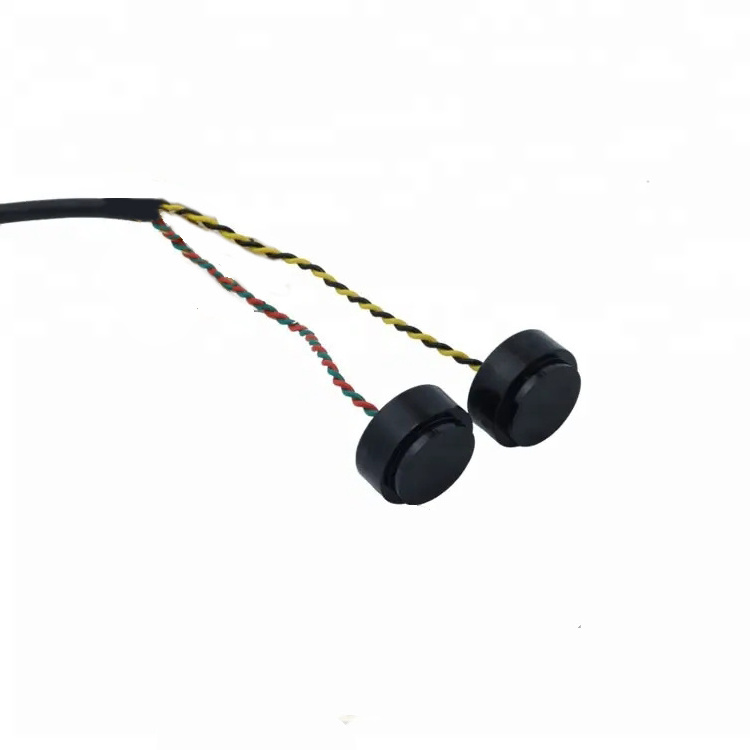

Ultrasonic Sensor
-
Model Number:
-
STPSC1.OM02101H2AD1-B0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
StrongFirst
-
NOMINAL FREQUENCY:
-
1000+100KHz
-
BANDWIDTH(-3dB):
-
200KHz
-
Capacitance:
-
1200±20%pF
-
IMPEDANCE(1MHz)Zr:
-
100~500Ω
-
OPERATING TEMPERATURE:
-
+4~+100°C
-
STORAGE TEMPERATURE:
-
-20~+85°C
|
Items
|
Unit
|
Content
|
|
Nominal Frequency(Fn)
|
KHz
|
1000±100
|
|
Resonance Impedance(R0)
|
Ω
|
100~500
|
|
Static Capacitance(CP)
|
pF
|
1200±
|
Nominal Frequency:1000100kHz
MAXInstantaneous Drive Voltage:220V
Paired Sensitivity: receiving signal 900mV minimum when measured peak to peak when drivenwith 10 cycle burst 2.0V(Vp-p)at 1MHz across a 110mm range.
Bandwidth(-3dB):200kHz
Capacitance:1200士20%pF
Impedance(1MHz)Zr:100-500Q
Insulation Resistance(250V):1GQmin
OperationalEnvironment:
Operating Temperature:+4-+100C
StorageTemperature:-20-+85 C
Applicable to homogeneous liquid media measurement,including water speed detection, objectsdistance measurement and obstacle detection etc.
>>
