Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2035*1150*1312
-
Machine Weight:
-
890 kg
-
Bucket capacity:
-
0.15m³
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Mini skid steer loader
-
Color:
-
Customer Requirements
-
Rated loading capacity:
-
200kg
-
Bucket volume:
-
0.15m³
-
Maximum lift:
-
375kg
-
Speed of work:
-
0-6Km/h
-
Preset pressure:
-
17MPa
-
Lift time:
-
4.3s
-
Fall time:
-
3.3s
-
Tipping time:
-
1.5s
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
Other
-
Brand Name:
-
China Vastness
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2035*1150*1312
-
Machine Weight:
-
890 kg
-
Bucket capacity:
-
0.15m³
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Mini skid steer loader
-
Color:
-
Customer Requirements
-
Rated loading capacity:
-
200kg
-
Bucket volume:
-
0.15m³
-
Maximum lift:
-
375kg
-
Speed of work:
-
0-6Km/h
-
Preset pressure:
-
17MPa
-
Lift time:
-
4.3s
-
Fall time:
-
3.3s
-
Tipping time:
-
1.5s
china mini skid steers tracked or 4wd garden mini loader small loader
Product Description
Small skid steer loaders are mainly used in garden engineering, landscaping engineering, municipal engineering, farm engineering, etc. A variety of accessories can be connected to achieve different operations.
Wheel Mini Skid Steer Loader

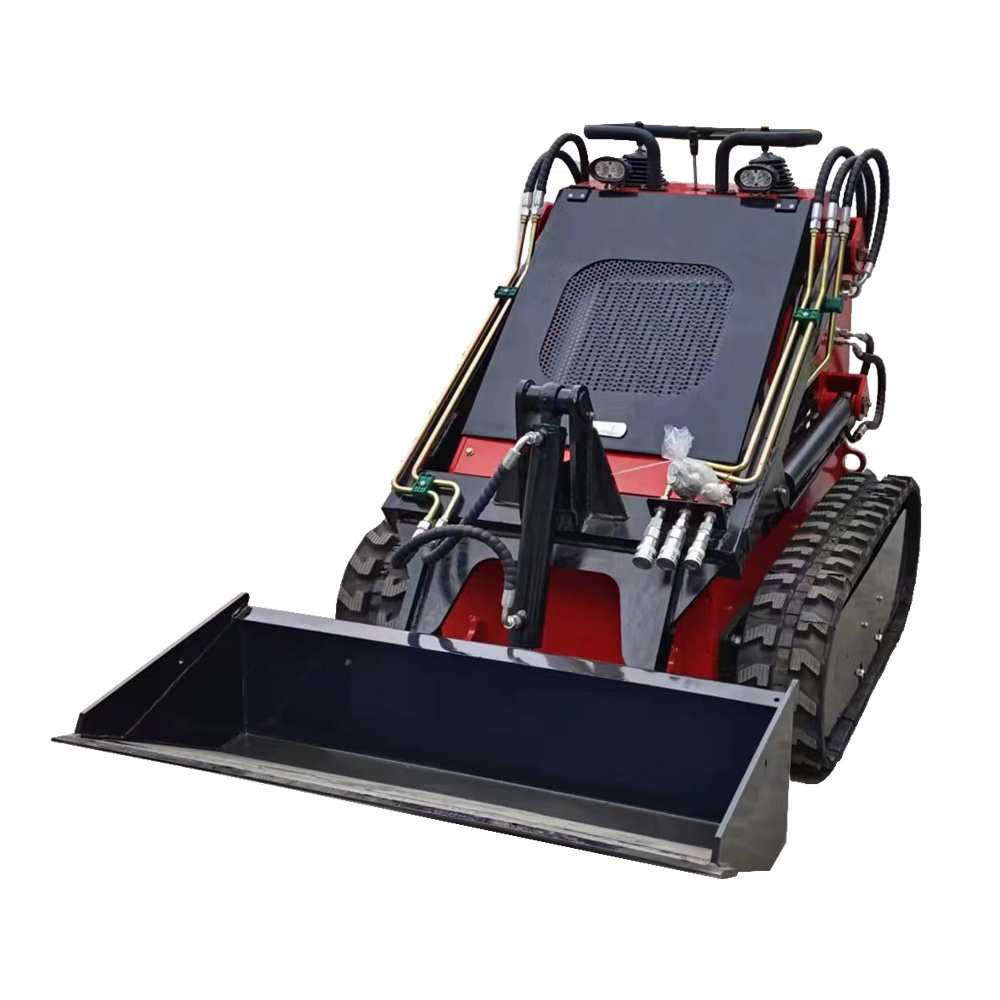

Crawler Mini Skid Steer Loader
Specification
|
CNV380 With Rubber Track
|
|
|
|
|||
|
Max working height
|
2100 mm
|
Turn radius forward turning
|
1300 mm
|
|||
|
Max pin height
|
1880 mm
|
overall length without the bucket after folding the pedal
|
1570 mm
|
|||
|
Max Dumping height
|
1480mm
|
Rated Power (KW)
|
18.2KW(23HP)
|
|||
|
Max Dumping distance
|
430 mm
|
Rotating speed (rpm)
|
3600
|
|||
|
Max Dumping Angle
|
30°
|
Noise (Db)
|
≤95
|
|||
|
Rollback of bucket on ground
|
25°
|
Pressure (Mpa)
|
17
|
|||
|
Departure angle
|
27°
|
Raise
|
4
|
|||
|
Total height
|
1270mm
|
Dump
|
1.3
|
|||
|
Ground clearance
|
110 mm
|
Lower
|
3.2
|
|||
|
Wheel base
|
760 mm
|
Operating Load
|
280 Kg
|
|||
|
Overall length without bucket
|
1782mm
|
Bucket Capacity
|
0.13 m³
|
|||
|
Total width
|
810mm
|
Max Lifting Force
|
458Kg
|
|||
|
Bucket width
|
1090 mm
|
Travel Speed
|
0-5.5Km/h
|
|||
|
Total length with bucket
|
2285 mm
|
Operating Weight
|
880 Kg
|
|||
SUPPORT CUSTOMIZATIONS
We can provide you with exclusive customization services and produce the products you want according to your
requirements,including but not limited to
logo/color/engine/other customized services
, etc.
Details Images
Operate table
Folding pedal
Bucket
Wheel type
Crawler type
Engine
