Description:

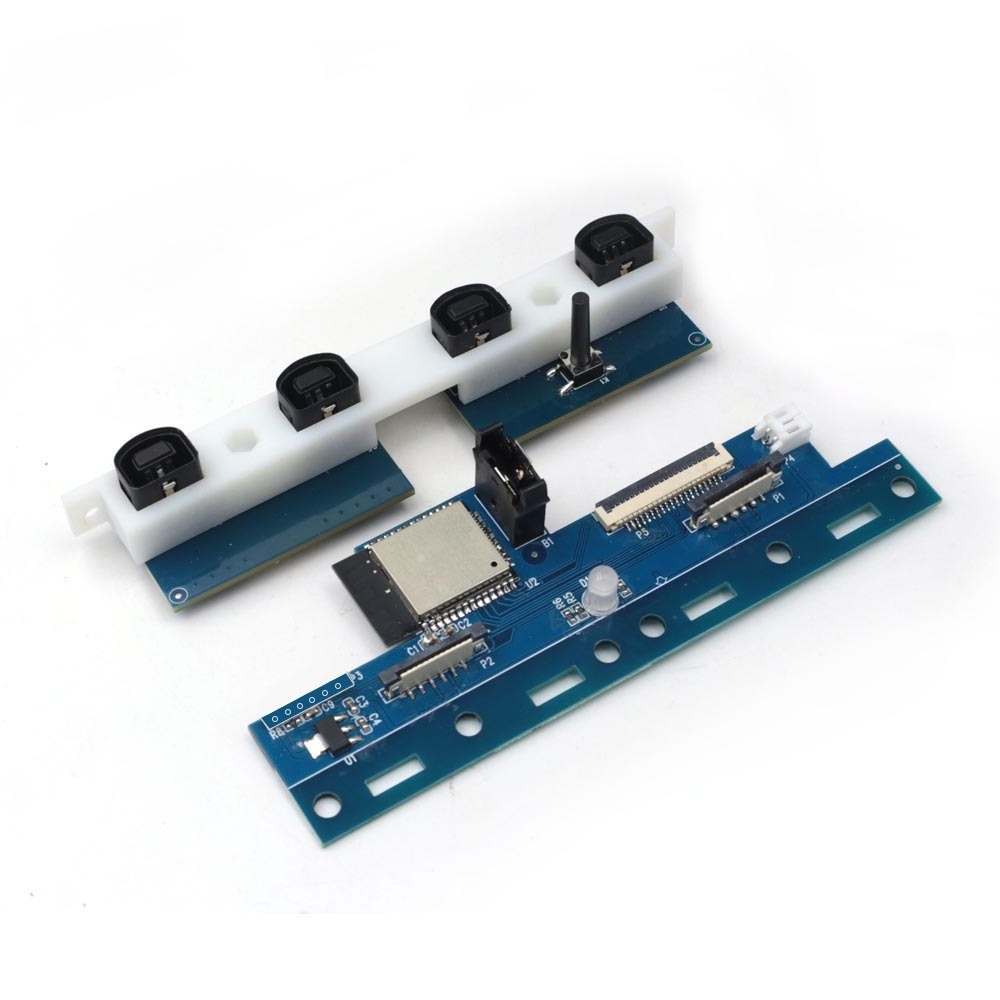

iBlueControlMod adapter is a high speed Bluetooth controller interface that opens retro consoles up to the plethora of modern controllers with latencies that even some wired adapters can't manage. This new board allows for the use of up to 4 connected Bluetooth controllers, and can be mixed and matched with wired controllers on any of the ports for seamless operation.

Features:

1.Up to 4 Bluetooth controllers can be paired at once.

2.No need welding, no need trimming,no outside extension wires.

3.Easy installation,good choice for green hands,just open shell and put the mod adapter inner machine to enable consoles connecting wireless joypads.

4.Easy firmware update tool that only requires a Bluetooth enabled device like a computer(incompatible phone).

5.Configurable button mapping using a applications software on a computer.

6.SEGA Dreamcast wired controllers are still available after updating this Bluetooth mod.

7.Built in LED indicator, make connecting more clear.

8.Replaceable socket for CR1220.

9.Simple installation.

Compatible Controllers:

Support PS3 / PS4 / PS5 / Xbox One S / Xbox Series X|S / Wii / Wii U Pro / Switch Pro/ Switch Joycon Wireless Controllers, etc.

Reset Button Usage:

The reset button on the console has been converted to offer new functionality based on how long you hold the button down. While it is being pressed the front ports will light up to show which state you will be enabling.

1.Holding for 0-3 seconds will test whether all 4 ports are working properly.

In this state all four front port LEDs will be solid on.

2.Holding for 4-6 seconds will disconnect all connected Bluetooth controllers

In this state all four front port LEDs will be slowly blinking.

3.Holding for 7-9 seconds will enable pairing mode

In this state all four front port LEDs will be blinking faster

4.Holding for 10 seconds or more will factory reset to the original firmware and remove any custom configs

In this state all four front port LEDs will be blinking rapidly.

5.Hold reset button while powering on the iBlueControlMod adapter will be in sleep mode and will not interfere with the console use this in the event that a peripheral is not working nicely with iBlueControlMod.

NOTE:  Please pairing the wireless controller first if the wireless controller never pairing with this iBlueControlMod before.--- Power off the Dreamcast console and then power on it again,will enable the pairing mode. (Or, Holding the reset button for 7-9 seconds will also enable pairing mode.)
