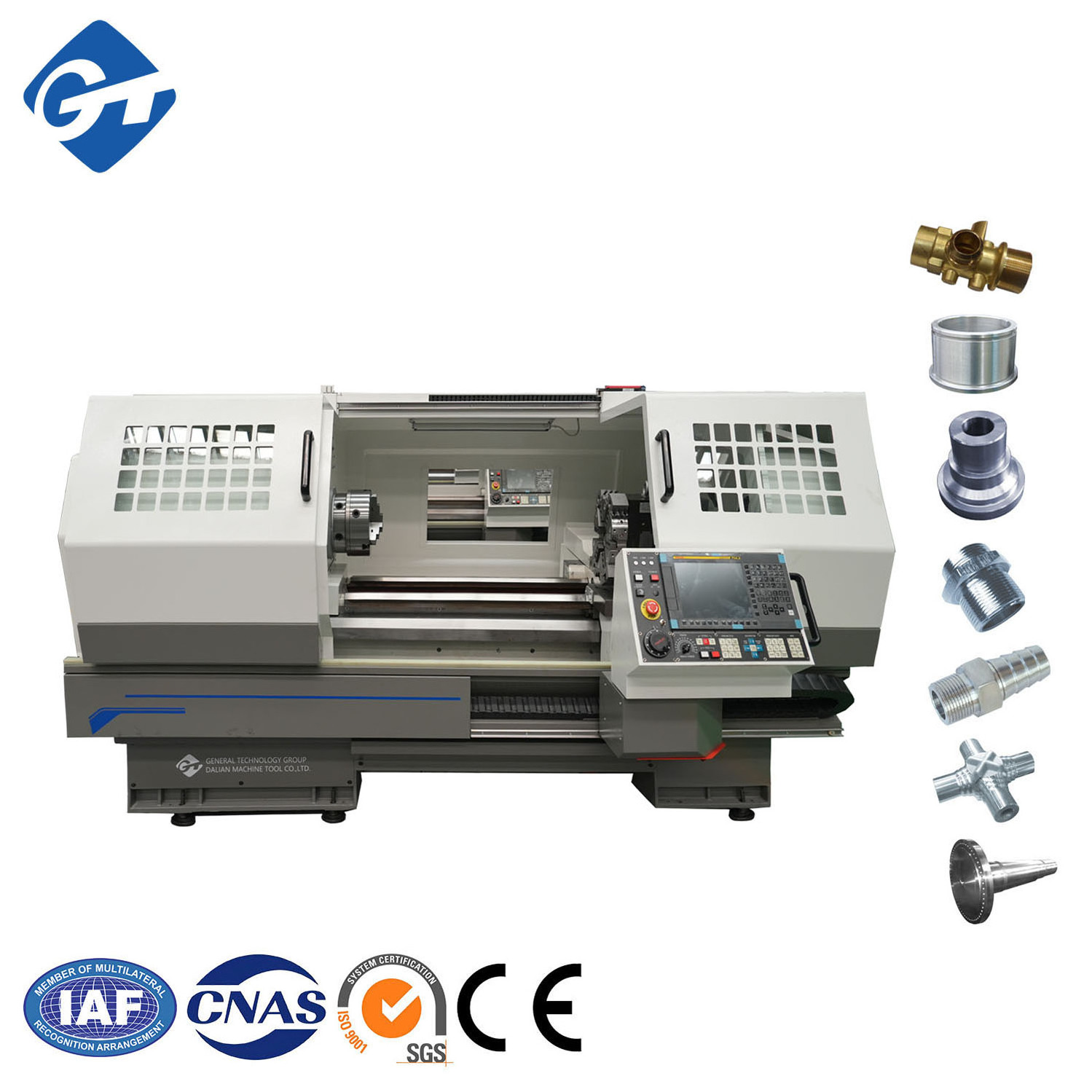

Quick Details
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5/11KW
-
Travel (X Axis)(mm):
-
280 mm
-
Travel (Z Axis)(mm):
-
685 mm
-
Positioning Accuracy (mm):
-
0.018/0.021(750
-
Repeatability (X/Y/Z) (mm):
-
0.006/0.008(750)
-
Place of Origin:
-
Liaoning, China
-
Dimension(L*W*H):
-
2580x1750x1620mm
-
Brand Name:
-
GT/DMTG
-
Model Number:
-
CK6150/CKE6150
-
Weight (KG):
-
2550
-
Marketing Type:
-
Direct markteing / Distributor
-
Max workpiece length:
-
750mm
-
Max.swing diameter over bed:
-
500mm
-
Max.swing diameter over cross slide:
-
280mm
-
Max cutting length:
-
680mm
-
Spindle speed ranges:
-
7~2200(3 range)
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
750mm
-
Max. Spindle Speed (r.p.m):
-
2200 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5/11KW
-
Travel (X Axis)(mm):
-
280 mm
-
Travel (Z Axis)(mm):
-
685 mm
-
Positioning Accuracy (mm):
-
0.018/0.021(750
-
Repeatability (X/Y/Z) (mm):
-
0.006/0.008(750)
-
Place of Origin:
-
Liaoning, China
-
Dimension(L*W*H):
-
2580x1750x1620mm
-
Brand Name:
-
GT/DMTG
-
Model Number:
-
CK6150/CKE6150
-
Weight (KG):
-
2550
-
Marketing Type:
-
Direct markteing / Distributor
-
Max workpiece length:
-
750mm
-
Max.swing diameter over bed:
-
500mm
-
Max.swing diameter over cross slide:
-
280mm
-
Max cutting length:
-
680mm
-
Spindle speed ranges:
-
7~2200(3 range)
PRODUCT DETAILS
|
Specification
|
|
Unit
|
CKE6150Z
|
CKE6150i
|
||
|
Max. swing diameter over bed
|
|
mm
|
Φ500
|
|
||
|
Max. swing diameter over cross slide
|
|
mm
|
Φ280
|
|
||
|
Max. workpiece length
|
|
mm
|
750/1000/1500/2000
|
750/1000
|
||
|
Max. cutting length
|
|
mm
|
680/930/1430/1930
|
680/930
|
||
|
Max. turning length
|
Vertical
4-position |
mm
|
Φ500
|
|
||
|
|
Opt:Horizonta
6-position |
mm
|
Φ400
|
|
||
|
|
Opt:Horizonta
8-position |
mm
|
Φ370
|
|
||
|
Spindle center height
|
|
mm
|
250
|
|
||
|
Bed guideway width
|
|
mm
|
400
|
|
||
|
Spindle motor power
|
|
kW
|
7.5/11
(Servo motor) |
11/15
(Servo motor) |
||
|
Spindle type
|
|
r/min
|
Gear box
|
Belt driven
|
||
|
Spindle bore
|
|
mm
|
Φ82
|
|
||
|
Chuck size
|
|
mm
|
Φ250
|
Φ254
|
||
|
Taper of spindle bore
|
|
|
Front end Φ90 1:20
|
Front end Φ100 1:20
|
||
|
Type of spindle nose
|
|
|
D8
|
A2-8
|
||
|
Spindle speed ranges
|
|
r/min
|
*7~2200 3 range manual(auto)
|
*30~3000 Single spindle
|
||
|
Tailstock quill diameter
|
|
mm
|
Φ75
|
|
||
|
Tailstock quill travel
|
|
mm
|
150
|
|
||
|
Tailstock quill taper
|
|
|
MT 5
|
|
||
|
Max. trave lof X-axis
|
|
mm
|
280
|
|
||
|
Max. travel of Z-axis
|
|
mm
|
685/935/1435/1935
|
685/935
|
||
|
Rapid traverse of X/Z axis
|
|
m/min
|
4/8 (750、1000、1500)
4/6 (2000) |
4/8
|
||
|
Tool shank size (Vertical 4-positon)
|
|
mm
|
25X25
|
25X25
|
||
|
X/Z axis positioning accuracy
|
|
mm
|
0.018/0.021(750）
0.024（1000）
0.026(1500、2000）
|
0.018/0.021(750）0.024(1000）
|
||
|
X/Z axis repeatability accuracy
|
|
mm
|
0.006/0.008(750）0.011(1000)
0.014(1500、2000） |
0.006/0.008(750)
0.011(1000） |
||
|
Machine dimensions(L×W×H)
|
|
mm
|
2580×1750×1620(750)
2830×1750×1620(1000) 3330×1750×1620(1500) 3830×1750×1620(2000) |
2580×1750×1620(750)
2830×1750×1620(1000) |
||
|
Machine weight
|
|
kg
|
2550(750)2600(1000)
2700(1500)2800(2000) |
2550(750)
2600(1000) |
||
COMPANY PROFILE
EXHIBITION
After-Sales Service
CUSTOMER
DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
PACKING&SHIPPING
CERTIFICATIONS
FAQ
|
1. Is your company a factory or trading company ?
|
|
We are factory and DMTG was founded in 1935.
|
|
2. Can we pay by L/C or others ？
|
|
Yes ,you can make the payment by T/T , l/C etc.
|
|
3. What is your payment terms ?
|
|
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it
can
be discussed according
to your situation.
|
|
4. What is your delivery time ?
|
|
The delivery depends on different machines with different configurations. Please
contact
us to confirm it is in stock or not.
|
|
5. Do you have CE certificate?
|
|
Yes , we have CE certification, machine quality is guaranteed.
|
|
6. What is the warranty period ?
|
|
The warranty period is general 13 monthes after B/L date. During the warranty period,
we
will provide free replacement parts (EXW) which are easy damaged.
|
|
7. Can you send the service engineer to our company ?
|
|
When the machine arrive the destination, we timely send service engineers to install
machine according to buyer's schedule, the buyer shall bear all expenses.
|
