Quick Details
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Working pressures:
-
0.15~0.8MPa
-
Operating Temperature:
-
5~50°C
-
Working Medium:
-
40 Micron Filtered Air
-
Joint Pipe Bore:
-
Air Inlet=Outlet=1/4=Exhaust=1/8"
-
Motion Pattern:
-
Inner Guide Type
-
Voltage:
-
AC110V AC220V AC380V AC24V 24V DC 12V DC
-
Sealing materials:
-
NBR
Quick Details
-
Port Size:
-
1/4
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4V330E-08
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Working pressures:
-
0.15~0.8MPa
-
Operating Temperature:
-
5~50°C
-
Working Medium:
-
40 Micron Filtered Air
-
Joint Pipe Bore:
-
Air Inlet=Outlet=1/4=Exhaust=1/8"
-
Motion Pattern:
-
Inner Guide Type
-
Voltage:
-
AC110V AC220V AC380V AC24V 24V DC 12V DC
-
Sealing materials:
-
NBR

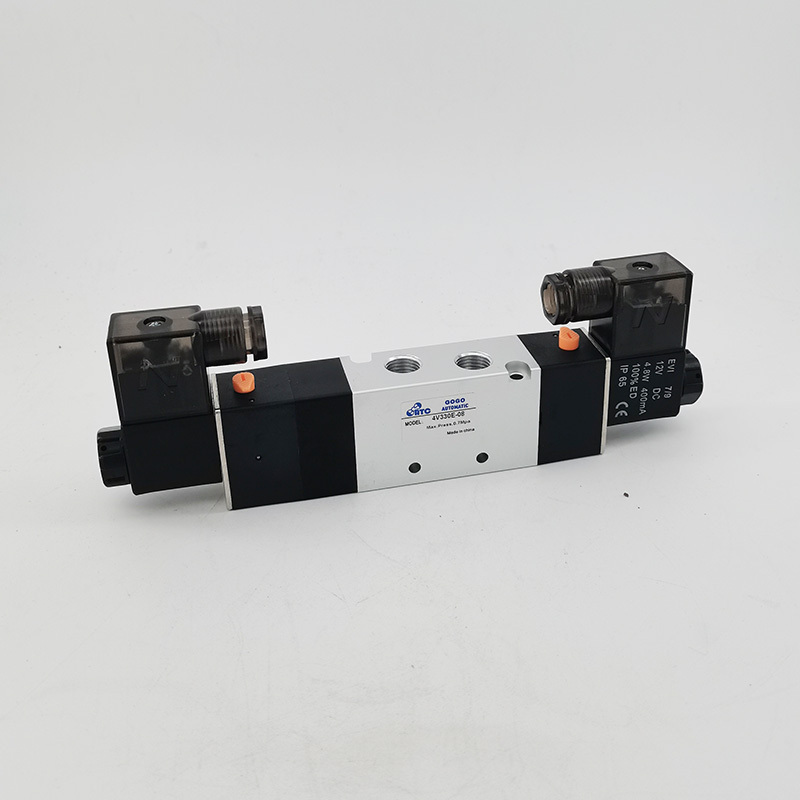

Pneumatic Air Valve 4V330E-08 1/4" 5/3 Double Solenoid Valve
Specification
|
Product name |
Pneumatic solenoid valve |
|
Model |
4V330E-08 |
|
Working medium |
40 Micron Air filtering |
|
Movement pattern |
Inner pllot type |
|
Type |
3 Position 5 Way, 2 coils |
|
Fluid |
Air |
|
Working pressure |
1.5 ~ 8kgf/cm2 |
|
effective area |
18mm² |
|
Protect class |
IP65 |
|
Port Connection |
Air inlet Air outlet = = G3 / 8 "exhaust = G 1/4" |
|
|
|
|
|
|
|
Total size (approx.) |
17.5x6.7x2.2 cm/6.9 "x 2.6" x 0.87 "(l * W * t) |
|
Operating voltage |
DC12V DC24V AC110V AC220V |
Dimensions
1.Inner packing: opp bag, then carton box for each product 2. Outer packing: export standard carton, Foam outside protecting the goods against damage 3. Usually we ship your order by sea or by air... 4. We do our best to ship your order within 1 week after receiving your payment 5. We'll tell you the tracking number once your order has been sent 6. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
