- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BDTECH
-
Model Number:
-
DFJ
-
Voltage:
-
380-450V
-
Dimension(L*W*H):
-
4800x1600x1800mm
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-

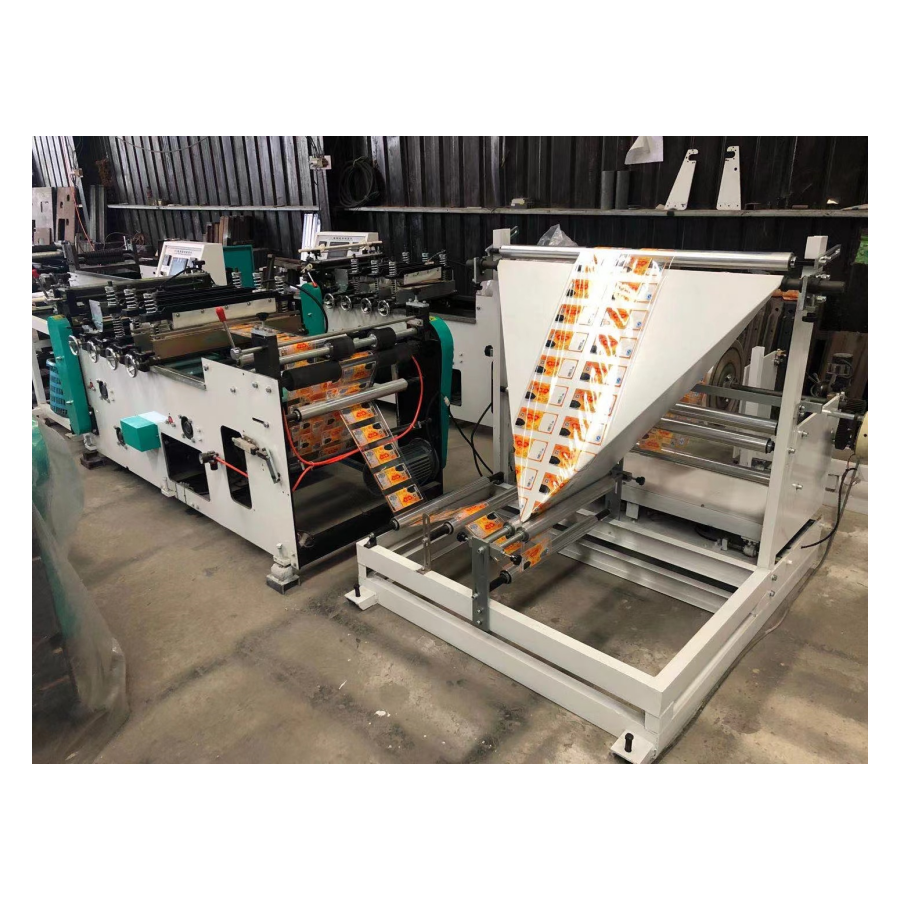

Folding and bottom sealing bag making machine
-
Bag suitable for:
-
liquid juice/natural water/beer bottle/candy
-
Type:
-
New
-
Feature:
-
High quality
-
Advantage:
-
Long service Life
-
package material:
-
wooden
-
shipping mode:
-
Air or Sea
-
After-sales Service Provided:
-
1 Year Warrantly
-
After Warranty Service:
-
Video Technical Support Online Support
-
After-sales service:
-
On-line Support
Quick Details
-
Machine Type:
-
SEALING MACHINE
-
Bag Type:
-
plastic Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BDTECH
-
Model Number:
-
DFJ
-
Voltage:
-
380-450V
-
Dimension(L*W*H):
-
4800x1600x1800mm
-
Weight:
-
1600 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Folding and bottom sealing bag making machine
-
Bag suitable for:
-
liquid juice/natural water/beer bottle/candy
-
Type:
-
New
-
Feature:
-
High quality
-
Advantage:
-
Long service Life
-
package material:
-
wooden
-
shipping mode:
-
Air or Sea
-
After-sales Service Provided:
-
1 Year Warrantly
-
After Warranty Service:
-
Video Technical Support Online Support
-
After-sales service:
-
On-line Support
Products Description
Product Application:
it is suitable for laminated bag bottom sealing and cutting. Machine use micro-computer to auto control,frequency adjust
speed,photocell eye track,auto counting,auto control the tempraute,stop to the limited position,two sealing 1 cooling.sealing fasten and clean.(options: add punching machine and easy-to-open mouth,single layer sealing part
it is suitable for laminated bag bottom sealing and cutting. Machine use micro-computer to auto control,frequency adjust
speed,photocell eye track,auto counting,auto control the tempraute,stop to the limited position,two sealing 1 cooling.sealing fasten and clean.(options: add punching machine and easy-to-open mouth,single layer sealing part
|
Max folding unwinder width
|
1200MM
|
|
Max bag making length
|
30-300MM
|
|
Max bag width
|
580MM
|
|
Bag making speed
|
180PCS/MIN
|
|
Total power
|
2.2KW
|
|
Power source
|
220V
|
|
Overall dimensions(L×W×H)
|
4800mm×1600mm×1800mm
|
|
Weight of machine
|
1600KG
|
Main Features:
1)whole machine controlled by central PLC control system.with man-machine interface
more stable performance,easy for operation and maintenance.lanugage can use english and chinese
2)constant auto-tension control for unwinding,LPC edge alignment AC inverter constant speed auto material feeding
3)japan three servo motor material dragging system
4)main motor for up-down sealing and pressing equipped with inverter
5)PID for sealing bar temperature adjustment,no touch auto control,centralized setting in man-machine interface
6)heavy type pressure,let bag more clean
7)pneumatic multi-function auto punching device,trim cutting and auto-rewinding.have static eliminator
8)temprature adjust range:0-300C
9)counter:quantity,batch accumulation,per-set avaliable
10)operation method: by length fixation countrol and/or by photocell tracking
11)punching device: working rhythm can pre-set as continuours,interval or stop,punching time can be pre-set
12)material skip feeding: one to six times available
13)batch converying function avaliable,the quantity of batch can be pre-set
1)whole machine controlled by central PLC control system.with man-machine interface
more stable performance,easy for operation and maintenance.lanugage can use english and chinese
2)constant auto-tension control for unwinding,LPC edge alignment AC inverter constant speed auto material feeding
3)japan three servo motor material dragging system
4)main motor for up-down sealing and pressing equipped with inverter
5)PID for sealing bar temperature adjustment,no touch auto control,centralized setting in man-machine interface
6)heavy type pressure,let bag more clean
7)pneumatic multi-function auto punching device,trim cutting and auto-rewinding.have static eliminator
8)temprature adjust range:0-300C
9)counter:quantity,batch accumulation,per-set avaliable
10)operation method: by length fixation countrol and/or by photocell tracking
11)punching device: working rhythm can pre-set as continuours,interval or stop,punching time can be pre-set
12)material skip feeding: one to six times available
13)batch converying function avaliable,the quantity of batch can be pre-set
More Products
Ruian Toyo
Why Choose Us
Characteristic
DFJ bottom sealing bag making machine, it is suitable for laminated bag bottom sealing and cutting. Machine use micro-computer to auto control,frequency adjust speed,photocell eye track,auto counting,auto control the tempraute,stop to the limited position,two sealing 1 cooling.sealing fasten and clean.(options: add punching machine and easy-to-open mouth,single layer sealing part
FUNCTION:
This machine is suitable folding the material from middle. Do the bottom sealing get a bag. That type bag suitable for liquid juice,natural water,beer bottle,candy,adhesive and other paper package.
About Us
Our Services
Export to Pakistan, Bangladesh, India, Mexico, Jordan, Egypt, Vietnam, Nigeria, Saudi Arabia etc countries
Verified by Alibaba ,No Any Risks Of Payment
100% payment protection
Able to provide
Mechanical test report
Video factory inspection
Guarantee product quality and integrity
Production Process
Packing&Transport
FAQ
1. your company is a manufacture or a trading company?
We are a manufacture. We also have a trading company to do export work.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 120usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
We are a manufacture. We also have a trading company to do export work.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in ruian city, the nearest airport is WENZHOU airport, the nearest train staion is RUIAN station. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 120usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life service, buyer pay for the material cost of exchanging spare parts and repairing.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
