CAIMI custom size regular sizes in large stock PU S5 scraper seal

CAIMI custom size regular sizes in large stock PU S5 scraper seal

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.01

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: S5

Quick Details

Size:: Reference details

Place of Origin:: Shanghai, China

Brand Name:: caimi

Model Number:: S5

PRODUCT DETAILS

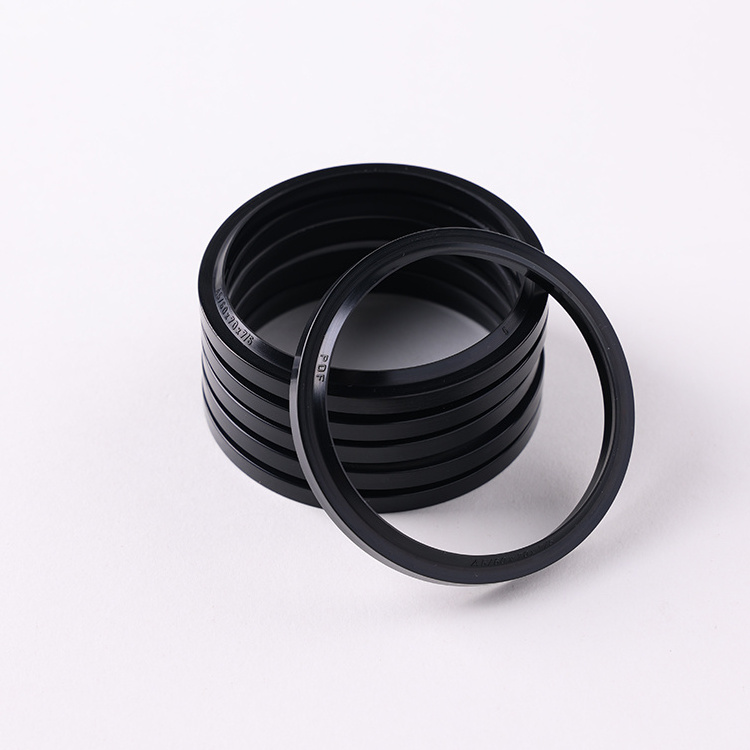

Scrapers - S5 /A5

The S5 is a molded double-acting elastomer scraper.

The scraper is used for reciprocating piston rods and plunger pistons in hydraulic cylinders.
It prevents the dirt into the system and holds back the residual oil film from the extending piston rod.

The S17 is preferably used in conjunction with our rod seals with a hydrodynamic back pumping function.

产品料号	内径（轴径/孔径）	沟槽直径	沟槽宽度	密封件宽度
S5010205	5	8.6	2.3	3
S5021484	19	26	2.8	4
S5032010	20	28.6	5.3	7
S5032014	22	30.6	5.3	7
S5032020	25	33.6	5.3	7
S5032035	28	36.6	5.3	7
S5033002	30	38.6	5.3	7
S5033007	32	40.6	5.3	7
S5033015	35	43.6	5.3	7
S5033020	36	44.6	5.3	7
S5034002	40	48.6	5.3	7
S5034015	42	50.6	5.3	7
S5034030	45	53.6	5.3	7
S5034033	45	55.6	5.3	7
S5034040	46	54.6	5.3	7
S5035013	50	58.6	5.3	7
S5035002	50	60.6	5.3	7
S5035015	55	63.6	5.3	7
S5035017	55	65.6	5.3	7
S5035022	56	66.6	5.3	7
S5036068	60	68.6	5.3	7
S5036005	60	70.6	5.3	7
S5036008	63	71.6	5.3	7
S5036010	63	73.6	5.3	7
S5036013	64	72.6	5.3	7
S5036015	65	73.6	5.3	7
S5036020	65	75.6	5.3	7
S5037015	70	78.6	5.3	7
S5037020	70	80.6	5.3	7
S5047023	70	82.6	7.1	12
S5030088	75	83.6	5.3	7
S5047092	75	87.2	7.1	12
S5037093	75	88.6	5.3	7
S5038004	80	88.6	5.3	7
S5048008	80	92.2	7.1	12
S5038060	85	98.6	5.3	7
S5045070	85	98.2	7.1	12
S5039002	90	98.6	5.3	7
S5049004	90	102.2	7.1	12
S5039009	92	100.6	5.3	7
S5039015	95	103.6	5.3	7
S503A015	100	108.8	5.3	7
S504A018	100	112.2	7.1	12
S503A013	105	113.6	5.3	7
S504A020	105	120.2	7.1	12
S503B020	110	118.6	5.3	7
S504B022	110	122.2	7.1	12
S503B026	112	120.6	5.3	7
S503B045	115	123.6	5.3	7
S503B050	115	125.6	5.3	7
S504B055	115	127.2	7.1	12
S503B068	118	128.6	5.3	7
S507C016	120	140	9.5	14.5
S503C060	125	133.6	5.3	7
S505C070	125	137.2	7.6	12
S508C080	125	140	10.1	16
S503C081	127	137.1	5.3	7
S504D010	130	142.2	7.1	12
S503E025	140	148.6	5.3	7
S504E027	140	152.2	7.1	12
S508E030	140	155	10.1	16
S503E040	143	151.6	5.3	7
S5035041	143	153.6	5.3	7
S5035050	145	152.6	5.3	7
S506E059	145	160	9.1	16
S508F030	150	165	10.1	16
S503F040	152	160.6	5.3	7
S504F050	155	167.2	7.1	12
S509F051	155	175	10.2	18
S503G020	160	168.6	5.3	7
S505G024	160	172.2	7.6	12
S508G030	160	175	10.1	16
S503G062	165	173.6	5.3	7
S504H008	170	182.2	7.1	12
S503H010	171	181.6	5.3	7
S504H009	171	183.2	7.1	12
S503H050	175	183.6	5.3	7
S509J008	180	200	10.2	18
S503J083	185	193.6	5.3	7
S503K008	190	198.6	5.3	7
S508K050	195	210	10.1	16
S509L025	200	220	10.2	18
S508L075	210	225	10.1	16
S509M040	220	240	10.2	18
S509M050	230	250	10.2	18
S509N005	240	260	10.2	18
S509N013	250	270	10.2	18
S509Q608	360	380	10.2	18
S5010205	5	8.6	2.3	3
S5021484	19	26	2.8	4
S5032010	20	28.6	5.3	7
S5032014	22	30.6	5.3	7
S5032020	25	33.6	5.3	7
S5032035	28	36.6	5.3	7
S5033002	30	38.6	5.3	7
S5033007	32	40.6	5.3	7
S5033015	35	43.6	5.3	7
S5033020	36	44.6	5.3	7
S5034002	40	48.6	5.3	7
S5034015	42	50.6	5.3	7
S5034030	45	53.6	5.3	7
S5034033	45	55.6	5.3	7
S5034040	46	54.6	5.3	7
S5035013	50	58.6	5.3	7
S5035002	50	60.6	5.3	7
S5035015	55	63.6	5.3	7
S5035017	55	65.6	5.3	7
S5035022	56	66.6	5.3	7
S5036068	60	68.6	5.3	7
S5036005	60	70.6	5.3	7
S5036008	63	71.6	5.3	7
S5036010	63	73.6	5.3	7
S5036013	64	72.6	5.3	7
S5036015	65	73.6	5.3	7
S5036020	65	75.6	5.3	7
S5037015	70	78.6	5.3	7
S5037020	70	80.6	5.3	7
S5047023	70	82.6	7.1	12
S5030088	75	83.6	5.3	7
S5047092	75	87.2	7.1	12
S5037093	75	88.6	5.3	7
S5038004	80	88.6	5.3	7
S5048008	80	92.2	7.1	12
S5038060	85	98.6	5.3	7
S5045070	85	98.2	7.1	12
S5039002	90	98.6	5.3	7
S5049004	90	102.2	7.1	12
S5039009	92	100.6	5.3	7
S5039015	95	103.6	5.3	7
S503A015	100	108.8	5.3	7
S504A018	100	112.2	7.1	12
S503A013	105	113.6	5.3	7
S504A020	105	120.2	7.1	12
S503B020	110	118.6	5.3	7
S504B022	110	122.2	7.1	12
S503B026	112	120.6	5.3	7
S503B045	115	123.6	5.3	7
S503B050	115	125.6	5.3	7
S504B055	115	127.2	7.1	12
S503B068	118	128.6	5.3	7
S507C016	120	140	9.5	14.5
S503C060	125	133.6	5.3	7
S505C070	125	137.2	7.6	12
S508C080	125	140	10.1	16
S503C081	127	137.1	5.3	7
S504D010	130	142.2	7.1	12
S503E025	140	148.6	5.3	7
S504E027	140	152.2	7.1	12
S508E030	140	155	10.1	16
S503E040	143	151.6	5.3	7
S5035041	143	153.6	5.3	7
S5035050	145	152.6	5.3	7
S506E059	145	160	9.1	16
S508F030	150	165	10.1	16
S503F040	152	160.6	5.3	7
S504F050	155	167.2	7.1	12
S509F051	155	175	10.2	18
S503G020	160	168.6	5.3	7
S505G024	160	172.2	7.6	12
S508G030	160	175	10.1	16
S503G062	165	173.6	5.3	7
S504H008	170	182.2	7.1	12
S503H010	171	181.6	5.3	7
S504H009	171	183.2	7.1	12
S503H050	175	183.6	5.3	7
S509J008	180	200	10.2	18
S503J083	185	193.6	5.3	7
S503K008	190	198.6	5.3	7
S508K050	195	210	10.1	16
S509L025	200	220	10.2	18
S508L075	210	225	10.1	16
S509M040	220	240	10.2	18
S509M050	230	250	10.2	18
S509N005	240	260	10.2	18
S509N013	250	270	10.2	18
S509Q608	360	380	10.2	18
S5010205	5	8.6	2.3	3
S5021484	19	26	2.8	4
S5032010	20	28.6	5.3	7
S5032014	22	30.6	5.3	7
S5032020	25	33.6	5.3	7
S5032035	28	36.6	5.3	7
S5033002	30	38.6	5.3	7
S5033007	32	40.6	5.3	7
S5033015	35	43.6	5.3	7
S5033020	36	44.6	5.3	7
S5034002	40	48.6	5.3	7
S5034015	42	50.6	5.3	7
S5034030	45	53.6	5.3	7
S5034033	45	55.6	5.3	7
S5034040	46	54.6	5.3	7
S5035013	50	58.6	5.3	7
S5035002	50	60.6	5.3	7
S5035015	55	63.6	5.3	7
S5035017	55	65.6	5.3	7
S5035022	56	66.6	5.3	7
S5036068	60	68.6	5.3	7
S5036005	60	70.6	5.3	7
S5036008	63	71.6	5.3	7
S5036010	63	73.6	5.3	7
S5036013	64	72.6	5.3	7
S5036015	65	73.6	5.3	7
S5036020	65	75.6	5.3	7
S5037015	70	78.6	5.3	7
S5037020	70	80.6	5.3	7
S5047023	70	82.6	7.1	12
S5030088	75	83.6	5.3	7
S5047092	75	87.2	7.1	12
S5037093	75	88.6	5.3	7
S5038004	80	88.6	5.3	7
S5048008	80	92.2	7.1	12
S5038060	85	98.6	5.3	7
S5045070	85	98.2	7.1	12
S5039002	90	98.6	5.3	7
S5049004	90	102.2	7.1	12
S5039009	92	100.6	5.3	7
S5039015	95	103.6	5.3	7
S503A015	100	108.8	5.3	7
S504A018	100	112.2	7.1	12
S503A013	105	113.6	5.3	7
S504A020	105	120.2	7.1	12
S503B020	110	118.6	5.3	7
S504B022	110	122.2	7.1	12
S503B026	112	120.6	5.3	7
S503B045	115	123.6	5.3	7
S503B050	115	125.6	5.3	7
S504B055	115	127.2	7.1	12
S503B068	118	128.6	5.3	7
S507C016	120	140	9.5	14.5
S503C060	125	133.6	5.3	7
S505C070	125	137.2	7.6	12
S508C080	125	140	10.1	16
S503C081	127	137.1	5.3	7
S504D010	130	142.2	7.1	12
S503E025	140	148.6	5.3	7
S504E027	140	152.2	7.1	12
S508E030	140	155	10.1	16
S503E040	143	151.6	5.3	7
S5035041	143	153.6	5.3	7
S5035050	145	152.6	5.3	7
S506E059	145	160	9.1	16
S508F030	150	165	10.1	16
S503F040	152	160.6	5.3	7
S504F050	155	167.2	7.1	12
S509F051	155	175	10.2	18
S503G020	160	168.6	5.3	7
S505G024	160	172.2	7.6	12
S508G030	160	175	10.1	16
S503G062	165	173.6	5.3	7
S504H008	170	182.2	7.1	12
S503H010	171	181.6	5.3	7
S504H009	171	183.2	7.1	12
S503H050	175	183.6	5.3	7
S509J008	180	200	10.2	18
S503J083	185	193.6	5.3	7
S503K008	190	198.6	5.3	7
S508K050	195	210	10.1	16
S509L025	200	220	10.2	18
S508L075	210	225	10.1	16
S509M040	220	240	10.2	18
S509M050	230	250	10.2	18
S509N005	240	260	10.2	18
S509N013	250	270	10.2	18
S509Q608	360	380	10.2	18

FACTORY ENVIRONMENT

GENERAL DOMAIN

Construction Machinery

Automobile Manufacturing

Medical Treatment

Semiconductor

Petrochemical Industry

Shipbuilding

DEVELOPMENT AREA

Project in Vietnam

Project in Europe

Project in Russia

FAQ

Q1.What's the payment term? A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.

Q2.What is the normal lead time for product orders?
A: Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.

Q4. why should you buy from us not from other suppliers?
A: OEM&ODM Service Offered ,Provide high quality products with competitive price.
Professional QC team control.
Delivery the goods on time

Q5.Can we get a sample for reference?
A: Samples can be sent to you to check the quality, but you should pay for the postage.The charge can be returned when there is an
firm order.

Q6.How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We accept third party inspection such as S G S, TUV, INTERTEK, BV, etc.

Q7. Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.

Q8. What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FPM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
