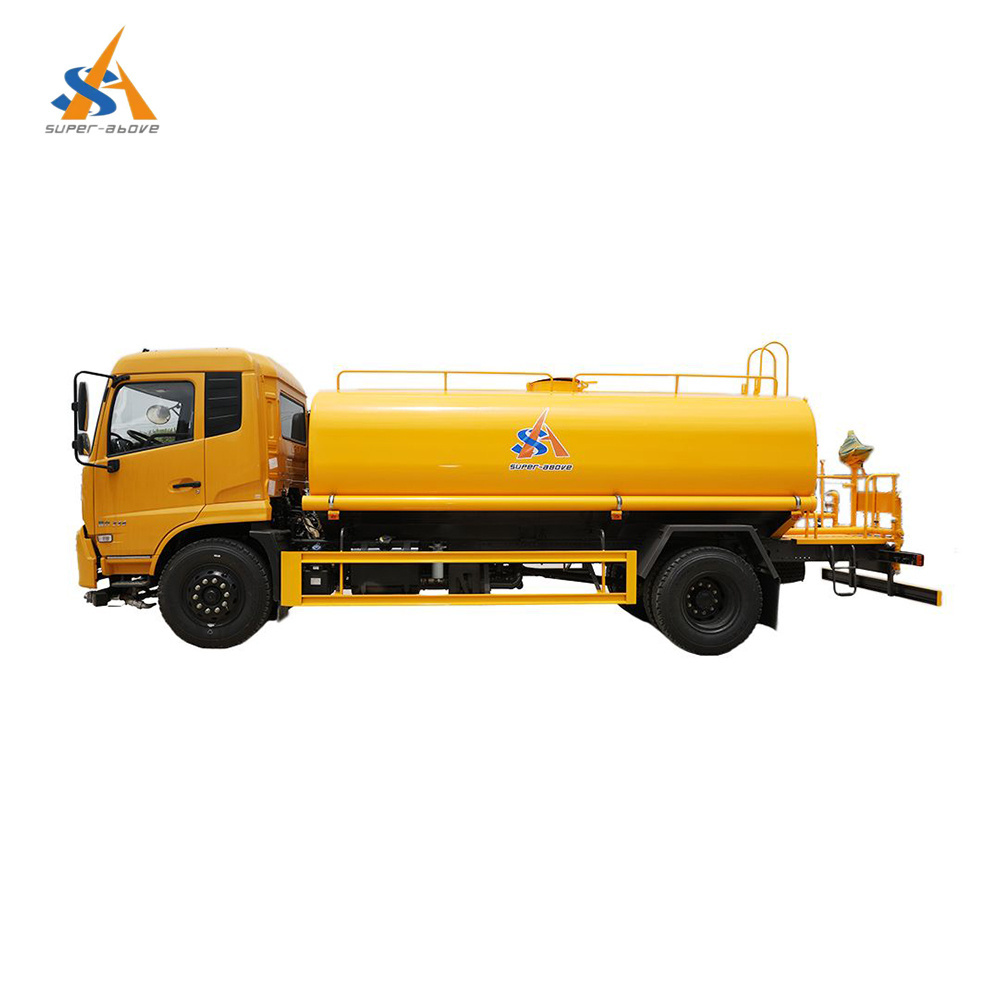

Water Tanker Truck Price for Dongfeng 4X2 6X4 Water Spray Truck

Specification of Sprinkler Truck / Watering Cart DLK

Item

Specification

Item

Specification

General

Truck Name

Sprinkler truck / Watering Cart

Overall Dimension (mm)

7000×2120×2600

Truck Brand

Dongfeng

Gross / Curb Weight (kg)

8495 / 3800

Truck Model

DFA1080SJ11D3

Approach / Departure Angle (°)

20 / 10

Max. Speed (km/h)

90

Front / Rear Overhang (mm)

1210 / 1990

Chassis

Chassis Brand

DF

Chassis Model

DFA1080SJ11D3

Wheel Base (mm)

3950

Leaf Spring

8/10+7;
11/9+7

Traction System

4 x 2

Quantity of Axles

2

Cab Capacity

1+1

Front / Rear Axle Load (kg)

3390 / 5105

Transmission

manual

Front / Rear Wheel Tread (mm)

1770 / 1586
1831 / 1640

Tyre Model

7.50-16 12PR;
8.25-16 14PR;
7.50R16 12PR;
8.25R16 14PR

Quantity of Tyre

6

Engine (Motor)

Brand

DF

Type of Fuel

Diesel

Model

CY4102-CE4B

Displacement (ml)

3856

Max. Power (KW/hp)

100 / 136

Emission Standard

Euro 4

Cylinder Stator

4, all cylinders arranged vertically in line

Max Torque (N.m)

420

Quantity of Valves Per Cylinder

4

Maximum Torque Speed (rpm)

1300-1500

Cylinder Diameter × Stroke (mm)

102 x 118

Motor Rated Rotating Speed (rmp)

2800

Full Load Minimum Fuel Consumption Rate (g/KW.h)

≤200

Air Intake Form

inter-cooling, water cooling

Compression Ratio

17 : 1

Noise From 1 Meter

≤114dB

Motor Net Weight (kg)

430

ABS

yes

Equipments

Tank Capacity (L)

8000-9200

Tank Material

4-6mm carbon/stainless steel

Water Pump Flow(m³/h)

60

Watering Width(m)

≥14

Vertical Suction (m)

≥6

Water Cannon Covering Range (m)

≥23

Priming Time (min)

<5

Lift of Pump (m)

45

Water Inlet Diameter (mm)

40

REMARKS:

1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into
various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m.

4. Equipped with fire coupling, flow valves, filter screen and water level gauge.

5. According to customers' request, the crane, high working platform and spraying machine also can be equipped.

6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction
sites. And also used for drinking water delivery and fire fighting function etc.

NOTE:

1. Any part can be customized depending on customers' demand.

2. 12 months whole vehicle warranty

3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If
necessary, our outwork engineer could go for technical assistance.
