Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
tdx
-
Model Number:
-
460t
-
Product Name:
-
SMT Line Machine PCB Three-Axis Conformal Coating
-
Brand:
-
tdx
-
Model:
-
460t,460f,460s,1500,2000
-
Quality:
-
Top
-
Weight:
-
760kg
-
Frame Size:
-
L1060mm*W1200mm*H1700mm
-
Transportation Speed:
-
Max 300mm/S
-
Package:
-
Wooden Box
-
Application:
-
SMT PCB Assembly Production Line
-
Delivery:
-
DHL ,UPS, FedEx You Order
Quick Details
-
Weight (KG):
-
760
-
Marketing Type:
-
New Product
-
Core Components:
-
selective conformal coating MACHINE
-
Place of Origin:
-
China
-
Brand Name:
-
tdx
-
Model Number:
-
460t
-
Product Name:
-
SMT Line Machine PCB Three-Axis Conformal Coating
-
Brand:
-
tdx
-
Model:
-
460t,460f,460s,1500,2000
-
Quality:
-
Top
-
Weight:
-
760kg
-
Frame Size:
-
L1060mm*W1200mm*H1700mm
-
Transportation Speed:
-
Max 300mm/S
-
Package:
-
Wooden Box
-
Application:
-
SMT PCB Assembly Production Line
-
Delivery:
-
DHL ,UPS, FedEx You Order
Product Description

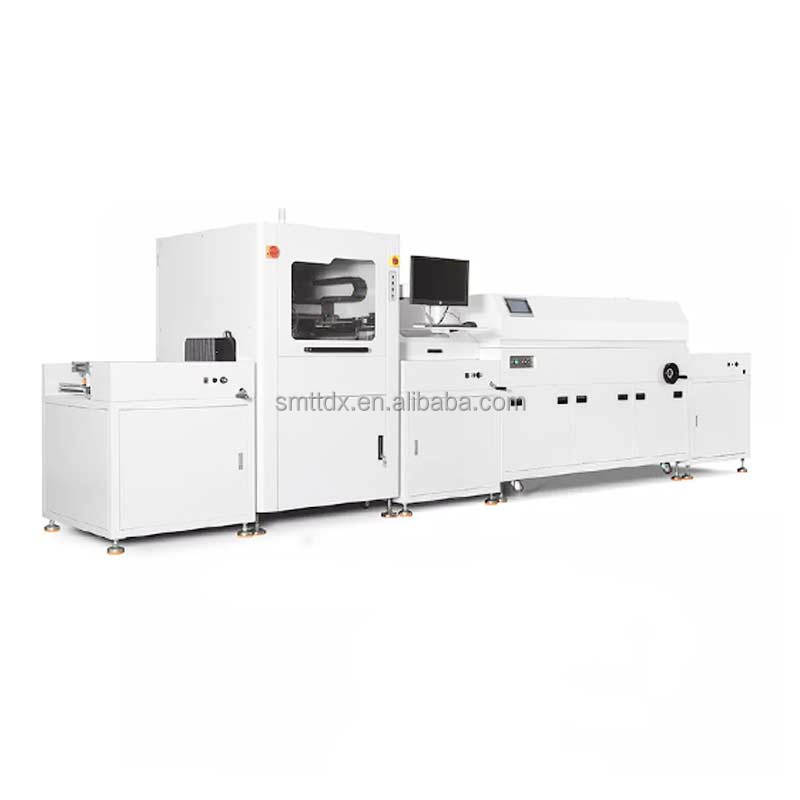

High accuracy automated SMT Line machine pcb Three-Axis selective conformal coating inspection spray equipment machine
|
Frame size
|
L1060mm*W1200mm*H1700mm
|
|
Weight
|
760kg
|
|
Method of control
|
Industrial computer + motion control card
|
|
Programmatically
|
Manual teaching
|
|
Run the software
|
Coating Machine Intelligent Selective Control Software
|
|
PCB Transmission height
|
900±20mm
|
|
Transportation speed
|
Max 300mm/s
|
|
Transmission direction
|
Left → right
|
|
transfer method
|
Stainless steel chain + stepper motor
|
|
PCB Width range
|
50-450mm
|
|
Method of width
|
Stepping motor automatically adjusts the width
|
|
X,Y Shaft drive mode
|
Servo motor + high-precision screw module
|
|
X,Y Maximum operating speed
of shaft |
1000mm/s |
|
X.Y Axis positioning accuracy
|
0.02 mm
|
|
Z Maximum operating speed of
shaft |
500mm/s |
|
Z Shaft drive
|
Servo motor + high-precision screw module
|
|
Z Axis positioning accuracy
|
0.02 mm
|
|
Valve up and down
|
Slide cylinder
|
|
Number of valves
|
2 pcs
|
|
Valve type
|
Cone valve/needle atomization valve
|
|
PCB Board size
|
MAX W50mm*L460mm
|
|
PCB Board component height
|
MAX 100mm
|
|
Coating width
|
1-30mm(According to the type of valve)
|
|
Tank volume
|
10L Glue supply pressure tank
|
|
Cleaning bucket
|
500mL
|
|
Cleaning function
|
The equipment comes with cleaning function
|
|
Lighting part
|
The equipment comes with white light and purple light
|
|
power supply
|
AC220V
|
|
Gas source
|
≥0.4MP
|
|
Total power
|
2.5KW
|
|
Automatic cleaning device
|
Standard
|
|
Barcode scanning function
|
Optional
|
|
CCD Visual positioning
|
Optiona
|
Specification
|
Weight (KG)
|
760
|
|
Showroom Location
|
United States, Italy, France
|
|
Marketing Type
|
New Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
selective conformal coating MACHINE
|
|
Place of Origin
|
China
|
|
Brand Name
|
tdx
|
|
Model Number
|
460t
|
|
Warranty
|
1 Year
|
|
Product Name
|
SMT Line Machine PCB Three-Axis Conformal Coating
|
|
Brand
|
tdx
|
|
Model
|
460t,460f,460s,1500,2000
|
|
Quality
|
Top
|
|
Weight
|
760kg
|
|
Frame Size
|
L1060mm*W1200mm*H1700mm
|
|
Transportation Speed
|
Max 300mm/S
|
|
Package
|
Wooden Box
|
|
Application
|
SMT PCB Assembly Production Line
|
|
Delivery
|
DHL ,UPS, FedEx You Order
|
Packing & Delivery
wooden case
