Quick Details
-
Brand Name:
-
Btutest
-
Model Number:
-
BT
-
Name:
-
Motorized flow table
-
Net weight:
-
25 kg
-
Motor Power:
-
220V, 50Hz
-
Flow mould dimension:
-
100 mm base dia. x 70 mm,top dia. x 60 mm high
-
Table diameter:
-
300±1 mm
-
Working cycle:
-
25 S
-
Vibrating frequency:
-
1 HZ
-
Height of drop:
-
10±0.1 mm
-
Weight of vibrating part:
-
4.35±0.15 kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Btutest
-
Model Number:
-
BT
-
Name:
-
Motorized flow table
-
Net weight:
-
25 kg
-
Motor Power:
-
220V, 50Hz
-
Flow mould dimension:
-
100 mm base dia. x 70 mm,top dia. x 60 mm high
-
Table diameter:
-
300±1 mm
-
Working cycle:
-
25 S
-
Vibrating frequency:
-
1 HZ
-
Height of drop:
-
10±0.1 mm
-
Weight of vibrating part:
-
4.35±0.15 kg
Product Description

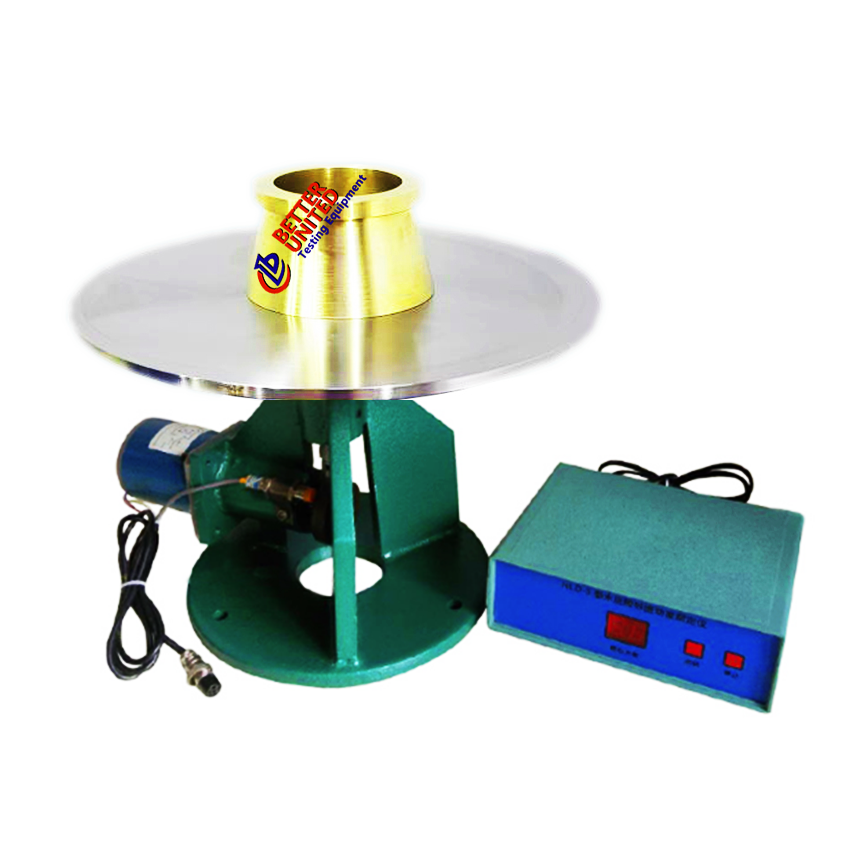

Motorized flow table
Description:
It is used for determining the consistency of cement mortars. The motor operated models are driven by a motor
speed reducer and the number of drops are shown on the counter, which stops automatically the machine at the
end of the cycle. Supplied complete with flow mould and tamper.
|
Weight of vibrating part
|
4.35±0.15 kg
|
|
Height of drop
|
10±0.1 mm
|
|
Vibrating frequency
|
1 HZ
|
|
Working cycle
|
25 S
|
|
Table diameter
|
300±1 mm
|
|
Flow mould dimension
|
100 mm base dia. x 70 mm,top dia. x 60 mm high
|
|
Dimension
|
400×400×690 m
|
|
Motor Power
|
220V, 50Hz
|
|
Net weight
|
25 kg
|
Specification
