Quick Details
-
Mounting Type:
-
Attachment screws 0.06N m
-
Description:
-
Sensors for Air Cylinders
-
Model Number:
-
LSPSC02L
-
Place of Origin:
-
Japan
-
Brand Name:
-
LS
-
Theory:
-
HALL
-
Output:
-
20mA Max
-

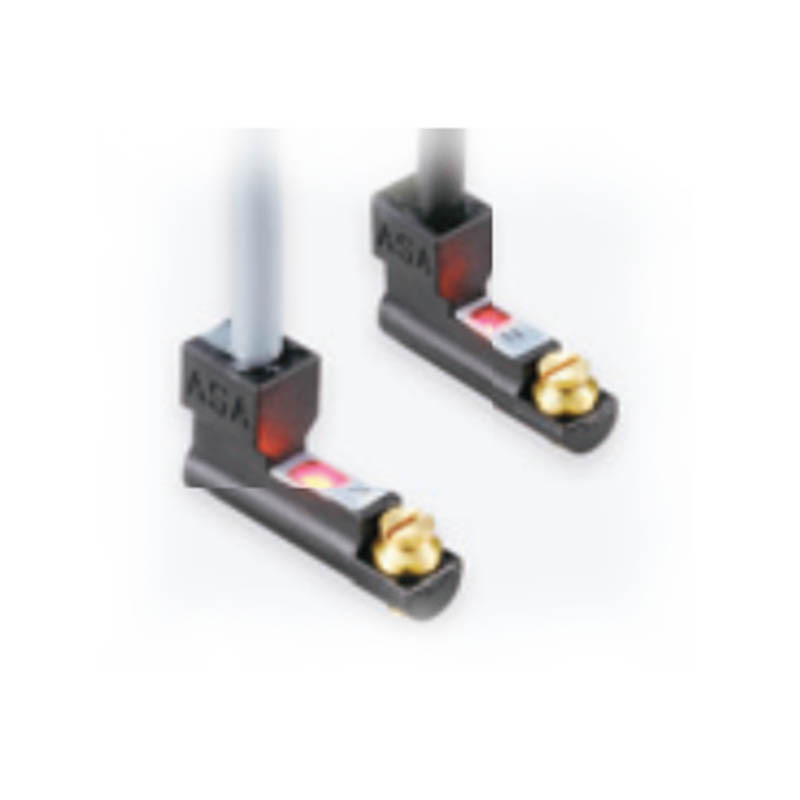

Product name:
-
High precision cylinder sensor
-
Supply Voltage:
-
DC12 ~ 24V
-
Output current:
-
50mA Max
-
Leakage current:
-
OFF state Under maximum 0.5mA
-
Response time:
-
50m sec
-
Voltage Resistance:
-
AC1000V
-
Magnetic sensitivity:
-
3 ~ 4mT
-
Response time:
-
16μsec or less
-
Protective structure:
-
IP67
-
Screw material:
-
Brass
Quick Details
-
Use:
-
Sensors for Air Cylinders
-
Series:
-
LS
-
Features:
-
proximity sensor
-
Mounting Type:
-
Attachment screws 0.06N m
-
Description:
-
Sensors for Air Cylinders
-
Model Number:
-
LSPSC02L
-
Place of Origin:
-
Japan
-
Brand Name:
-
LS
-
Theory:
-
HALL
-
Output:
-
20mA Max
-
Product name:
-
High precision cylinder sensor
-
Supply Voltage:
-
DC12 ~ 24V
-
Output current:
-
50mA Max
-
Leakage current:
-
OFF state Under maximum 0.5mA
-
Response time:
-
50m sec
-
Voltage Resistance:
-
AC1000V
-
Magnetic sensitivity:
-
3 ~ 4mT
-
Response time:
-
16μsec or less
-
Protective structure:
-
IP67
-
Screw material:
-
Brass
Product Description
Specification
|
Power Supply Voltage
|
DC5～24V
|
|
Sensing pole
|
S : S-pole
N : N-pole
|
|
Magnetic sensitivity
|
3～4mT
|
|
Direction to detct
|
Downward
|
|
Output current
|
20mA Max
|
|
Consumption current
|
8mA Max
|
|
Response time
|
16 μ sec or less
|
|
Cable specifications
|
S-pole : φ2.8 3wire,Gray 1m
N-pole : φ2.8 3wire,Black 1m
|
|
Case material
|
GF reinforced PBT : Black
|
|
Screw material
|
Brass
|
|
Mounting
|
Attachment screws 0.06N･m
|
|
Indicator light
|
Red
|
|
Protective structure
|
IP67
|
|
Curcuit diagram
|
CNC-21
|
|
IP rating
|
IP67
|
･By using cable options, conversion of output specifications,current current amplification, and cable extension are possible.
