Quick Details
-
Brand Name:
-
SED
-
Voltage:
-
415V/50Hz ,3 phase and 5 wires, 415V/50Hz ,3 phase and 5 wires
-
Power:
-
127Kw/300A, 127Kw/300A
-
Dimension(L*W*H):
-
12000*2520*3500mm
-
Weight (KG):
-
14000
-
Compressed air:
-
≥0.1m3/min (P=0.5-0.8Mpa)
-
Chamber design temperature:
-
130℃
-
Cooling water qty:
-
≥11m3/h(T≤30℃/P=0.15-0.2Mpa)
-
Total usable area of shelves:
-
5.67㎡
-
Maximum water capacity:
-
≥120Kg/batch
-
The number of shelf:
-
7+1 (Compensation Board)
-
Shelf spacing:
-
90mm
-
Weight:
-
14000Kg (Approx.)
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
100kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SED
-
Voltage:
-
415V/50Hz ,3 phase and 5 wires, 415V/50Hz ,3 phase and 5 wires
-
Power:
-
127Kw/300A, 127Kw/300A
-
Dimension(L*W*H):
-
12000*2520*3500mm
-
Weight (KG):
-
14000
-
Compressed air:
-
≥0.1m3/min (P=0.5-0.8Mpa)
-
Chamber design temperature:
-
130℃
-
Cooling water qty:
-
≥11m3/h(T≤30℃/P=0.15-0.2Mpa)
-
Total usable area of shelves:
-
5.67㎡
-
Maximum water capacity:
-
≥120Kg/batch
-
The number of shelf:
-
7+1 (Compensation Board)
-
Shelf spacing:
-
90mm
-
Weight:
-
14000Kg (Approx.)

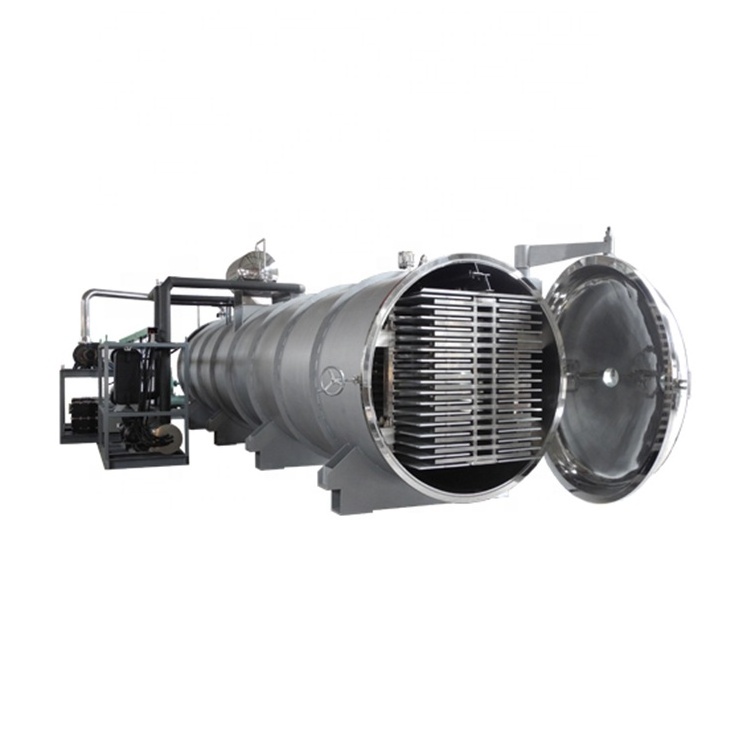

Freeze-dry (brief named Freeze-dry)
is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.
Vacuum freeze-drying method is a liquid solid gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will no longer change until the "solid bridge" completely disappear.
|
Power
|
415V/50HZ,3Phase,5Wire
|
|
Power consumption
|
127Kw/300A
|
|
Cooling water qty
|
≥56m3/h(T≤30℃/P=0.1-0.15Mpa)
|
|
Compressed air
|
≥0.45 m3/min（P=0.5-0.8Mpa）
|
|
Structure
|
Integral(Rectangular box dry +Mushroom valve+Rectangular cold trap)
|
|
Compressed air
|
≥0.45 m3/min（P=0.5-0.8Mpa）
|
|
Chamber design pressure
|
-0.1 mbar
|
|
Chamber design temperature
|
120℃
|
|
Chamber Vacuum leak rate
|
0.005 Pa.m3/sec
|
|
Total usable area of shelves
|
110.16 ㎡
|
|
Defrost water
|
≥8T (Temperature 50-60℃,pressure 0.1MPa)
|
|
Shelf rate (no load)
|
Shelf heating rate (no load) ≥3℃/min
Shelf cooling rate(no load) ≥3℃/min
|
|
number of board layers
|
Symmetrical hanging (17 +17 blocks)
|
|
Shelf spacing
|
77mm
|
|
Shelf dimensions
|
540mm*6000mm*18/block
|
|
Machine size (L×W×H)
|
12000*2520*3500
Final dimension based on design |
|
Total weight
|
14000kg（Approx.）
|
|
Model Num.
|
SED-100DG
|
1. Stainless steel is polished with excellent brand to ensure surface roughness to ensure sterility requirements.
2. 3D design , consistent with CGMP requirements of complete sterilization.
3. Special section of the door seal to avoid water retention in the CIP / SIP process.4. Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage.
5. Liquid level sensing probe and preventing intrusion device are installed on outfall water.
6. Mushroom valve ball surface is smooth and easy to clean.
7. Mushroom valve can be adjusted through the valve closed, to prevent excessive pressure.
8. Mushroom valve in the "open" or "off" with the feedback signal, can understand the working state real.
9. Plate flange of mushroom valve processed two times with high sealing performance and accuracy, can completely prevent leakage.
Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.
Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods
Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
