Quick Details
-
Place of Origin:
-
United Kingdom
-
Model:
-
382
-
Physical Attributes:
-
Xaar 382 35pl
-
Active Nozzles:
-
382
-
Print Swath:
-
53.7mm
-
Nozzle pitch:
-
141μm
-
Drop velocity:
-
5m/s
-
Nozzle density(nozzles per inch):
-
180dpi
-
Ink type:
-
Solvent,UV,Oil
-
Printhead weight:
-
120g
-
Dimensions (WxDxH):
-
86x21x75 mm
Quick Details
-
Type:
-
Print Head
-
Use:
-
solvent printer
-
Printing Type:
-
Solvent printer
-
Place of Origin:
-
United Kingdom
-
Model:
-
382
-
Physical Attributes:
-
Xaar 382 35pl
-
Active Nozzles:
-
382
-
Print Swath:
-
53.7mm
-
Nozzle pitch:
-
141μm
-
Drop velocity:
-
5m/s
-
Nozzle density(nozzles per inch):
-
180dpi
-
Ink type:
-
Solvent,UV,Oil
-
Printhead weight:
-
120g
-
Dimensions (WxDxH):
-
86x21x75 mm

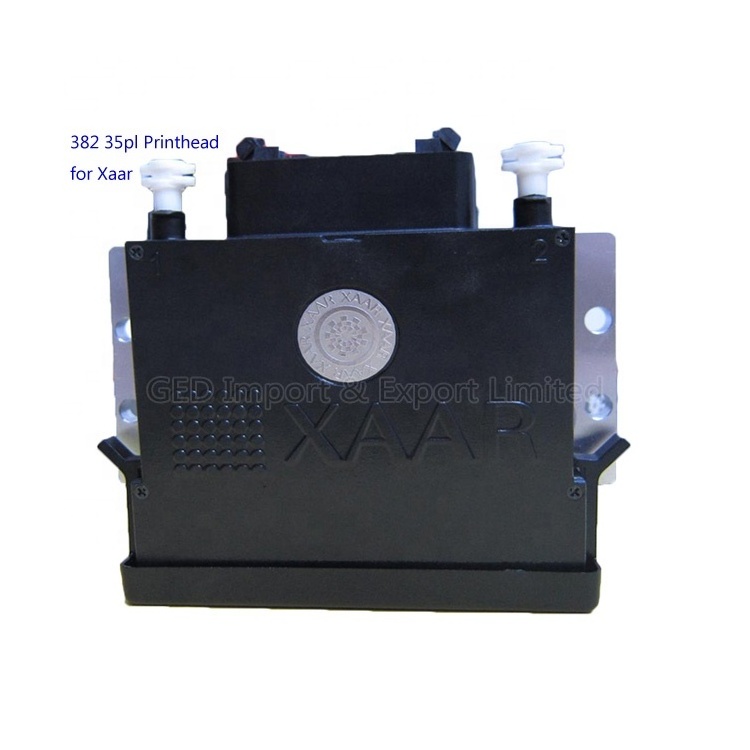

Guangzhou GED Original 382 35pl Print Head Proton Print Head for Xaar Wit-color Printer Myjet Flex Printing Machine
Product Parameters
|
Physical Attributes |
Xaar 382 35pl |
|
Active Nozzles |
382 |
|
Print Swathe |
53.7mm |
|
Nozzle pitch |
141μm |
|
Drop velocity |
5m/s |
|
Nozzle density(nozzles per inch) |
180dpi |
|
Printhead weight |
120g |
|
Ink type |
Solvent,UV,Oil |
|
Drop volume |
35pl |
|
Typical firing frequency |
9.5kHz |
|
Dimensions (WxDxH) |
86x21x75 mm |
1.Two ink ports enable ink supply from either or both sides of the printhead for ease of priming and maintenance. This provides the potential for ink recirculation giving increased reliability.
2.Has advanced control logic functions and electronics that enable better tuning and flexible control of different ink characteristics.
3.Easy to set up and maintain.
4.382 nozzles at 180 dpi over a 53.7 mm swathe width deliver both single and multi-pass application solutions in a compact print engine.
5.Adaptable for a wide spectrum of applications this flexible printhead is supplied with a broad range of approved inks to provide customers with a rapid development route.
More Products
We supply all kinds of top brand spare parts , ink , printers ...
Such as print head board , main board , ink tube, solvent pump , date cable ....
Spt, Xaar, Epson, Spectra...print head
Infinity / Phaeton / Challenger solvent printer, Galaxy eco solvent printer ect.
1. Q: What is your MOQ of 382 35pl Printhead for Xaar?
A: 1 piece.
2. Q: How long can I get feedback after sent the enquiry?
A: We will reply within 12 hours in working day.
3. Q: What kind of shipping do you have?
4. Q: what kinds of payment method could you accept?
A: L/C, T/T, Western Union, Paypal, Alipay.
5. Q: How to order?
A: Please contact us for the stock, when we have it in stock, you just pay to us directly, we will ship the goods out in 7 working day after payment.
