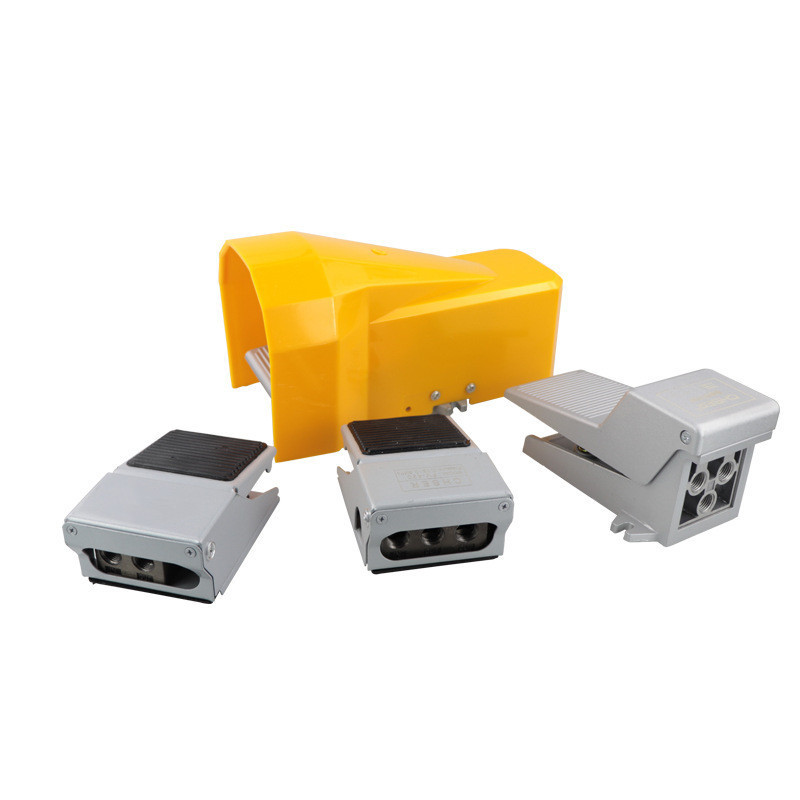

china white 4 way 2 position 1/4BSP foot operate switch valves fv420 pneumatic foot pedal control valve

china white 4 way 2 position 1/4BSP foot operate switch valves fv420 pneumatic foot pedal control valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $4.8

≥100 Pieces

US $4.33

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: FV420

Brand Name:: YXPC

Product name:: foot operate valves

Model:: FV420

Way and position:: 4/2 way

Body material:: aluminum

Working medium:: Filtered compressed air

Pressure:: 0.-0.8MPa

Ensured Pressure Resistance:: 1.0MPa(10kgf/c㎡)

Effective Area:: 8m㎡

Control:: pedal

motion:: direct drive

Quick Details

Port Size:: BSP 1/4"

Warranty:: one year

Place of Origin:: Zhejiang, China

Model Number:: FV420

Brand Name:: YXPC

Product name:: foot operate valves

Model:: FV420

Way and position:: 4/2 way

Body material:: aluminum

Working medium:: Filtered compressed air

Pressure:: 0.-0.8MPa

Ensured Pressure Resistance:: 1.0MPa(10kgf/c㎡)

Effective Area:: 8m㎡

Control:: pedal

motion:: direct drive

4 way 2 position 1/4BSP foot operate switch valves fv420 pneumatic foot pedal control valve

Features :

Port Size:Inlet.Outlet,Exhaust Post=G1/4" ; Inlet,Outlet=G1/4" Exhaust Post =G1/8"
· It's applicable in many fields: Irrigation controls (garden, farm,etc.), liquid controls ( pipeline, artificial river etc. )and
air controls ( lab, factory, etc.)

Hard anodizing aluminum alloy valve body.

stainless steel spring material, long life for smooth use.

Make screw holes without burrs.

Model	4F210-08	FV420	FV320
working medium	air
way and position	two position five way	two position four way	two position three way
motion	direct drive type
join pipe	air inelt= air outlet= exhaust=G1/4	air inelt= air outlet= G 1/4 exhaust=G1/8
working pressure	0-0.8Mpa
working temperature	0~60 degrees Celsius

Packing & Delivery

1)YXPC Brand, Neutral or Customer's requires label 2)YXPC carton or same as the Customer's requires, export standard carton 3)All cartons should be packed into the pallets more carefully. 4)All of the productions are inspected carefully one by one by QC before delivery. 5)We usually use cartons to pack the goods together. When the product is a machine over 50kg, we use wooden or pallet packing.

payment and shipment

Payment: Normally do payment through trade assurance on alibaba, T/T 30% deposit and 70% balance before shipping. Shipment: for small quantity, we will choose DHL, FedEx, UPS, TNT, or EMS with most competitive freight for you! for bulk quantity, we can arrange by sea with FOB price. Competitive freight will be given for reference! for urgent order, airline shipping is also available. We are committed to providing customers with quality services and the most favorable prices. There is always one that suits you. - Competitive freight from our shipping agents, -fast delivery! -safe packing!

Our Advantages

What we offer:

1)Nonstandard customize service with good quality control
2) Highly competitive prices supply goods from factory directly.
3) state-of-art technology products.
4) Best professional team of researching in pneumatic field.
5) Smooth communication with after-sales team to deal with customer suggestions and complaints.
6) Effective OEM&ODM service
7) Own advanced CNS machines, drill machines, online-testing system etc.
8) applied lots of patent for solenoid valve
9) introduced professional engineers to to provide innovative solutions.
10)Factory production quality control

1.Is sample order acceptable?

Yes,it is ok.Before we received the first order, please afford the sample cost and express fee. We
will return the sample cost back to you within your first order

2 .Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

3.How to guarantee the quality of your products?
Strict detection during production and Strict sampling inspection on products before shipment and intact product packaging ensured.

4.How to place the order?
You can send us email or inquiry at Alibaba directly.

5.How to make the payment?
We accept Bank T/T, and Trade assurance on Alibaba.

6. Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.

7.Can we make customized product for pneumatic foot pedal valve ?

Yes, we are good at making customized products.
