Quick Details
-
Brand Name:
-
ZWDL
-
Model Number:
-
ZWKL-2A
-
Light source:
-
semiconductor laser
-
Measurement range:
-
1μm~400μm
-
Sensitivity:
-
1μm (ISO 4402) or 4μm (C)
-
Test channel:
-
16 channels
-
Sampling Volume:
-
0.3~100ml, interval 0.1ml
-
Sampling rate:
-
5ml/min~60ml/min
-
Accuracy of sampling volume:
-
<±1%
-
Maximum vacuum of sampling chamber:
-
0.8MPa
-
Test sample viscosity:
-
≤ 350 CST
-
Test sample temperature0℃~60℃:
-
0℃~80℃
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZWDL
-
Model Number:
-
ZWKL-2A
-
Light source:
-
semiconductor laser
-
Measurement range:
-
1μm~400μm
-
Sensitivity:
-
1μm (ISO 4402) or 4μm (C)
-
Test channel:
-
16 channels
-
Sampling Volume:
-
0.3~100ml, interval 0.1ml
-
Sampling rate:
-
5ml/min~60ml/min
-
Accuracy of sampling volume:
-
<±1%
-
Maximum vacuum of sampling chamber:
-
0.8MPa
-
Test sample viscosity:
-
≤ 350 CST
-
Test sample temperature0℃~60℃:
-
0℃~80℃

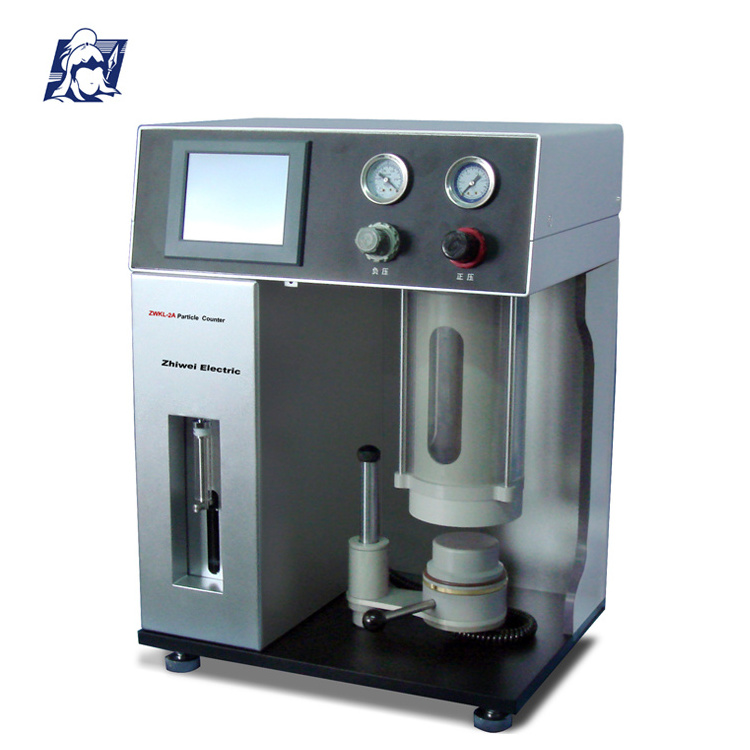

ZWKL-2A Oil Analyzer Particle Counter
Technical Parameters
Product Overview
ZWKL-2A Particle counter adopts the principle of Light Blockage Method for develop- ment. It is used for
detecting of size and number of solid particles in the oil. It can be widely used in aerospace, electric power, petroleum,chemical industry, machinery, automobile manufacturing and other fields, it can detect degree of pollution of solid particle in oil for hydraulic oil, lubricating oil, transformer oil (insulating oil), aviation kerosene, water-based hydraulic etc., and detect insoluble particles for organic liquid and polymer solution.
detecting of size and number of solid particles in the oil. It can be widely used in aerospace, electric power, petroleum,chemical industry, machinery, automobile manufacturing and other fields, it can detect degree of pollution of solid particle in oil for hydraulic oil, lubricating oil, transformer oil (insulating oil), aviation kerosene, water-based hydraulic etc., and detect insoluble particles for organic liquid and polymer solution.
Main features
* The instrument works by the principle of Light Blockage, with fast detection speed, strong anti-interference performance,high precision and good repeatability etc.
* Precision syringe type of sampling system, realize accurate control for constant sampling speed and the sample
* Positive/negative air pressure Chamber device, realizes sampling degassing and high viscosity samples
* Large color LCD screen display, shows graphic menu, touch screen operation, easy to use.
* Built-inparticle pollution level standard, such as NAS 1638、GJB 420A-96、GJB 420B-06、ISO 4406-99（GB/T14039）、ISO4406-87(JB/T9737.1）、SAE749D、AS4059 and so And can built-in standard according to requirements needed by user.
* Particle size of 16 channels can be set arbitrarily in order to facilitate analysis of particle size.
* Testing data with storage capabilities, it is convenient for detection data to archive, retrieval and analysis.
* A built-in printer, can directly print out the testreport
* Sample size, detection speed and cleaning speed can be set.
* With standard RS232 serial port, database software is optional, which to achieve an external computer control of the
instrument and the test data processing.
* Precision syringe type of sampling system, realize accurate control for constant sampling speed and the sample
* Positive/negative air pressure Chamber device, realizes sampling degassing and high viscosity samples
* Large color LCD screen display, shows graphic menu, touch screen operation, easy to use.
* Built-inparticle pollution level standard, such as NAS 1638、GJB 420A-96、GJB 420B-06、ISO 4406-99（GB/T14039）、ISO4406-87(JB/T9737.1）、SAE749D、AS4059 and so And can built-in standard according to requirements needed by user.
* Particle size of 16 channels can be set arbitrarily in order to facilitate analysis of particle size.
* Testing data with storage capabilities, it is convenient for detection data to archive, retrieval and analysis.
* A built-in printer, can directly print out the testreport
* Sample size, detection speed and cleaning speed can be set.
* With standard RS232 serial port, database software is optional, which to achieve an external computer control of the
instrument and the test data processing.
