25 Tons Hydraulic Crane Machine 48.5m Mobile Crane Truck Crane QY25K5D

25 Tons Hydraulic Crane Machine 48.5m Mobile Crane Truck Crane QY25K5D

FOB Reference Price: Get Latest Price

≥1 Pieces

US $115000

≥5 Pieces

US $110000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hoisting

Rated Lifting Moment:: -

Span:: 7.6m

Place of Origin:: Jiangsu, China

Brand Name:: Oriemac

Weight (KG):: 25000 kg

Product name:: Oriemac XCT25L5-1 25 ton 5-section truck crane

Moving type:: Wheel

Dimensions:: 12870x2550x3470mm

Weight:: 33000kg

Color:: Original Color

Model:: XCT25L5-1

Engine model:: SC9DF290.1Q4/SC9DF290.2Q4

Engine rated power:: 213/1900kW/(r/min)

Total weight in travel:: 33000kg

Quick Details

Rated Loading Capacity:: 25t

Max. Lifting Height:: Other

Engine Brand:: Shangchai

Application:: Hoisting

Rated Lifting Moment:: -

Span:: 7.6m

Place of Origin:: Jiangsu, China

Brand Name:: Oriemac

Weight (KG):: 25000 kg

Product name:: Oriemac XCT25L5-1 25 ton 5-section truck crane

Moving type:: Wheel

Dimensions:: 12870x2550x3470mm

Weight:: 33000kg

Color:: Original Color

Model:: XCT25L5-1

Engine model:: SC9DF290.1Q4/SC9DF290.2Q4

Engine rated power:: 213/1900kW/(r/min)

Total weight in travel:: 33000kg

Product Description

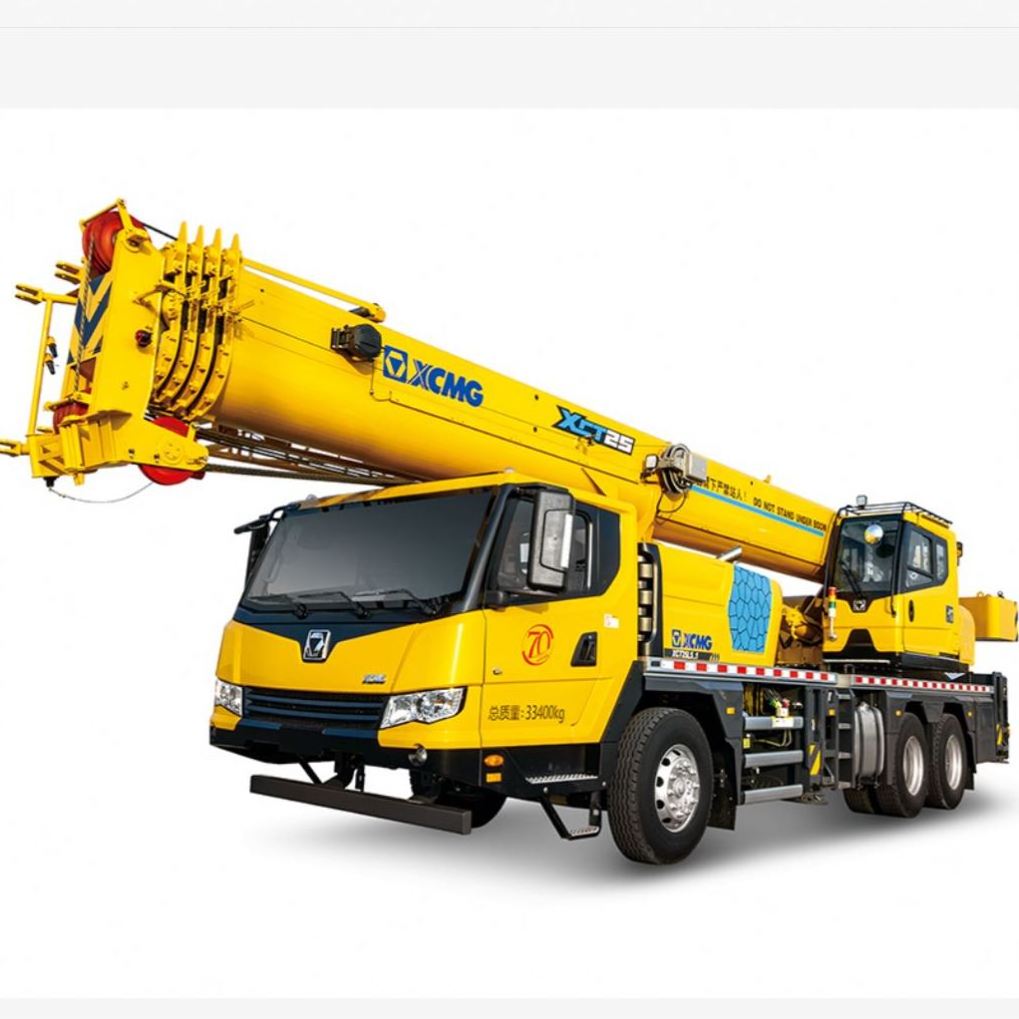

China 25Ton Qy25k-1 XCT25L5 XCT25L5-1 Widely Used Truck Cran With Low Price

Contact Person: Ms. Phyllis

whatsApp/Tel/wechat:+86 15737137170

skype: wang.phyllis01

QQ:530090438

XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

1. Super lifting performance

* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively.

* Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.

2. New energy-saving hydraulic system

* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

* Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.

3. Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.

Specification

Dimension	Unit	XCT25L5
Overall length	mm	12870
Overall width	mm	2550
Overall height	mm	3470
Weight
Total weight in travel	kg	33000
Power
Engine model		SC9DF290.1Q4/SC9DF290.2Q4
Engine rated power	kW/(r/min)	213/1900
Engine rated torque	N.m/(r/min)	1400/1400
Travel
Max. travel speed	km/h	90
Min. turning diameter	m	21
Min. ground clearance	mm	260
Approach angle	°	12
Departure angle	°	14
Max. grade ability	%	45
Fuel consumption for 100km	L	30
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.34
Max. lifting torque	kN.m	1132
Base boom	m	10.2
Max.main boom	m	41
Max.main boom+jib	m	50.2
