Quick Details
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-IPS1021F
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100M
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
5 years, lifelong maintenance.
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop, 35mm DIN rail
-
Operation TEMP/ Humidity:
-
-40~+75°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+85°C, 5%~95% RH Non condensing
-
MAC:
-
2K
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1Gbps (non-blocking)
-
Brand Name:
-
HZGWS
-
Model Number:
-
GWS-IPS1021F
-
Place of Origin:
-
Guangdong, China
-
Speed:
-
10/100M
-
Certification::
-
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
-
Warranty:
-
5 years, lifelong maintenance.
-
Communication mode::
-
Full-Duplex & Half-Duplex
-
Installation:
-
Desktop, 35mm DIN rail
-
Operation TEMP/ Humidity:
-
-40~+75°C, 5%~90% RH Non condensing
-
Storage TEMP/ Humidity:
-
-40~+85°C, 5%~95% RH Non condensing
-
MAC:
-
2K
Product Description
Specification
|

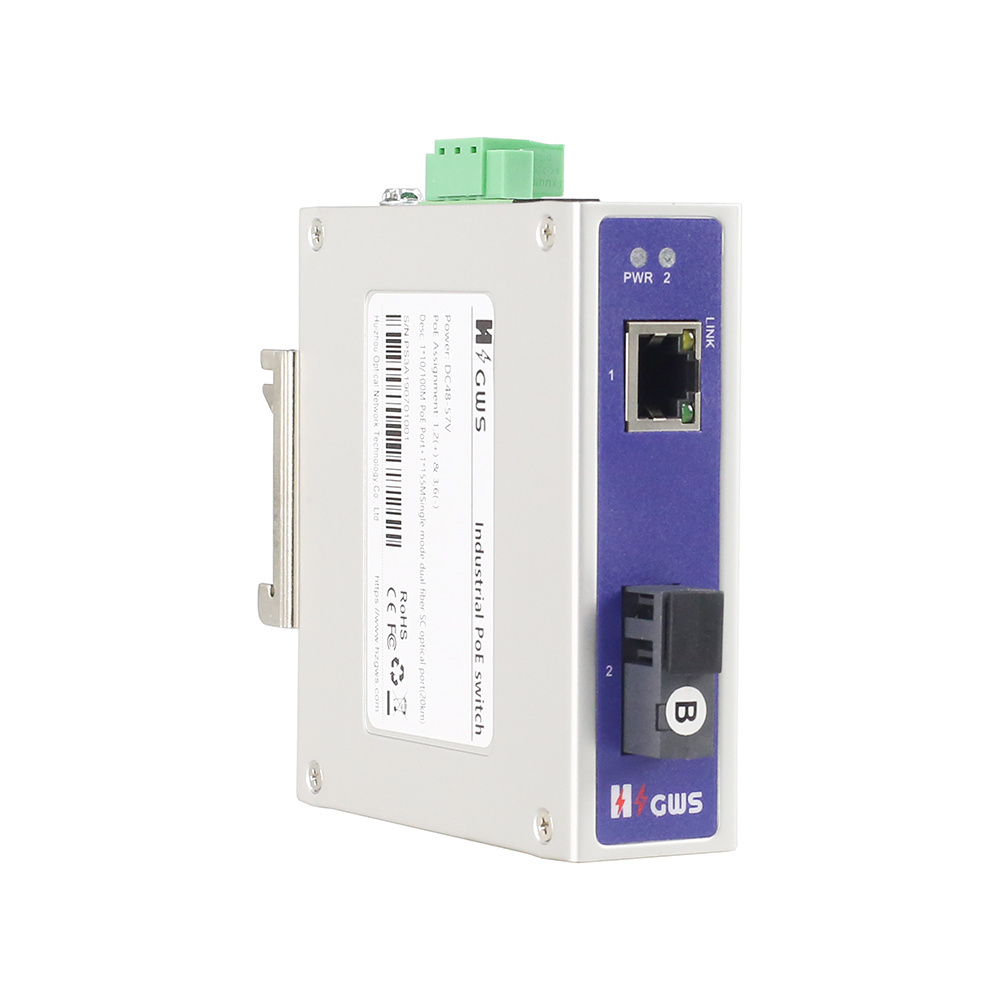

Model
|
GWS-IPS1021F
|
|
|
Interface Characteristics
|
|
|
|
Fixed Port
|
1*155M SC fiber port(Data)
1*10/100Base-TX RJ45 ports (Data) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack) |
|
|
Ethernet Port
|
Port 1 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
|
Fiber Port
|
Default optical module is single-mode dual-fiber 20km, SC port
|
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm / 0-550M, 1310nm / 0~2KM
Single-mode: 1310nm / 0-40KM, 1550nm / 0-120KM |
|
|
Chip Parameter
|
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3x |
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
|
Switching Capacity
|
1.0Gbps (no-blocking)
|
|
|
Forwarding
Rate@64byte |
0.3Mpps
|
|
|
MAC
|
2K
|
|
|
Buffer Memory
|
512Kb
|
|
|
Jumbo Frame
|
2048B
|
|
|
LED Indicator
|
Power: PWR (Green), Network: Link1 (Yellow) ，Fiber port:2 (Green)
|
|
|
Power Supply
|
|
|
|
Power Consumption
|
Standby<3W, Full load<5W
|
|
|
Operating Voltage
|
DC12-48V, 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection.
|
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
|
Physical Parameter
|
|
|
|
Operation TEMP / Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
|
Storage TEMP / Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
|
Dimension (L*W*H)
|
98*88*30mm
|
|
|
Net /Gross Weight
|
<0.2kg / <0.3kg
|
|
|
Installation
|
Desktop, 35mm DIN rail
|
|
|
Certification & Warranty
|
|
|
|
Lightning Protection
|
Lightning protection: 6KV 8/20us, Protection level: IP30
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class B IEC61000-6-2(Common Industrial Standard) |
|
|
Mechanical Properties
|
IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B RoHS
|
|
|
Warranty
|
5 years, lifelong maintenance.
|
|
