Driveway HDPE Material Geocell Plastic Gravel Stabilizer Grid Price Retaining Wall

Driveway HDPE Material Geocell Plastic Gravel Stabilizer Grid Price Retaining Wall

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Road

Design Style:: Modern

Place of Origin:: Shandong, China

Brand Name:: BPM

Model Number:: BPMTG102

material:: imported HDPE

color:: black or green or yellow as your request

height:: 50-200mm

welding distance:: 33-100cm

thickness:: 1.0mm,1.2mm,1.5mm,1.75mm

surface treatment:: smooth or textured

package:: plastic packing belts or as your request

factory price:: yes

keyword:: Plastic Geocell

certificates:: CE/ISO/BV/Saso

Quick Details

Warranty:: 2 years

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection

Project Solution Capability:: total solution for projects

Application:: Road

Design Style:: Modern

Place of Origin:: Shandong, China

Brand Name:: BPM

Model Number:: BPMTG102

material:: imported HDPE

color:: black or green or yellow as your request

height:: 50-200mm

welding distance:: 33-100cm

thickness:: 1.0mm,1.2mm,1.5mm,1.75mm

surface treatment:: smooth or textured

package:: plastic packing belts or as your request

factory price:: yes

keyword:: Plastic Geocell

certificates:: CE/ISO/BV/Saso

Driveway HDPE Material Geocell Plastic Gravel Stabilizer Grid Price Retaining Wall

[Brief Intr o duction] gravel stabilizer plastic Honeycomb Geocell gras driveway

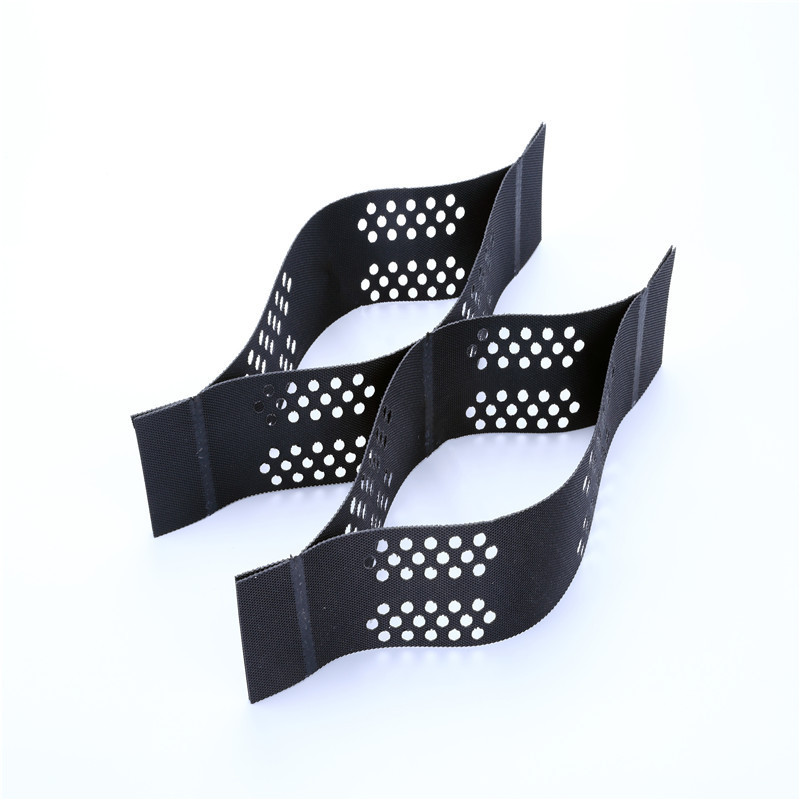

HDPE Geocell is the important application field among many Honeycomb Geocell applications. Honeycomb Geocell is manufactured from high density polyethylene with three dimensional honeycomb structures and jointly welded by ultrasonic technics. BPM Honeycomb Geocell is widely used for soil stabilization, slope protection, load support, etc. The geocell will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures. If filled small solid, small grid geocell is preferred. On the contrary, larger geogrid geocell is chose to fill large goods.

HDPE Geocell provides long-term durability and high tensile strength to withstand a large amount of lateral force for erosion control, soil stabilization on flat ground, shorelines, steep slopes, multi-layered retaining walls, channel protection and structural reinforcement for heavy duty load support roads and earth retention. Honeycomb Geocell is the ideal geotechnical material to stabilize the dam of the reservoir or river. Honeycomb Geocell can be stronger when be filled with concrete to support heavy traffic close to the road. Geocell can also improve resistance to erosive forces on steep, unstable slopes exposed to hydraulic or mechanical depths.

Product	Driveway HDPE Material Geocell Plastic Gravel Stabilizer Grid Price Retaining Wall
Material of geocell	HDPE/Polymer Composite Alloys(PCA)
Color of geocell	Black/Green/Brown/Grey/White
Height(mm) of geocell	50,75,100,150,200
Thickess(mm) of geocell	1.0-1.7
Welding distance(mm) of geocell	330-1600
Seam peel strength(kN/m) of geocell	10-28

[Features]

It is light and durable, and it is acid and alkali resistant ;
It is expandable for convenient installation ; and it is foldable for convenient transportation;
It can distribute the vertical pressure into the cell wall, which can improve the load capacity and reduce the thickness of the roadbed ;
Geocell mat can reduce the lateral movement of the soil, so it is resistant to deformation.

[ Image ]

[ Geocell 3D Analysis ]

Item geocell mat			Unit	Value
Dimensional deviation geocell mat
Sheet Thickness	Smooth surface		mm	1.0-1.25
	Textured surface		mm	1.5-1.85
Geocell Height			mm	50-300
Welding Distance			mm	330-1600
Basic Performance geocell mat
Environmental stress cracking F50			h	≥80
Low temperature embrittlement point			℃	≤-50
Vicat softening temperature			℃	≥112
Oxidation induction time			min	≥20
Technical requirement geocell mat
Tensile strength geocell mat			MPa	≥20
Seam peel strength			kN/m	10-28
Connection place of geocell group		Edge of geocell plate	N/cm	≥230
		Middle of geocell plate	N/cm	≥120

H=geocell height (thickness)

D=geocell welding distance

W=expanded panel width

L=expanded panel length

W'=expanded cell width

L'=expanded cell length

[Application]

Slope protection -geocell mat

· Solve the problem of slope surface soil stability and slope protection---roadway embankment, flood protection embankment, steep slope, bridge abutment, mountain roadside, prevent landslide especially in weathered forest, desert and marsh;

Retaining Wall -geocell mat

· Solving the stability problem of steep slope soil--- retaining wall, vegetated wall, non-vegetated wall, culvert headwall;

Load Support -geocell mat

· To solve the problem of load distribution, foundation stability and surface stability of weak foundation---roadbase stabilization for road, highway, railway, airport, sidewalk, parking lot, public square, etc.
