Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Leadercolor
-
Model Number:
-
LDR-7015F
-
Protocol:
-
ISO/IEC 18000-6C, EPC Class1 Gen2
-
Sample:
-
Available
-
Material:
-
Textiles
-
Size:
-
Can be customized
-
Printing:
-
Fabric
-
Application:
-
laundry
-
OEM:
-
Yes
-
Package:
-
1500pcs/box
-
Installation:
-
Sewing or insert, Direct thermal glue
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID
-
Frequency:
-
860-960mhz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Leadercolor
-
Model Number:
-
LDR-7015F
-
Protocol:
-
ISO/IEC 18000-6C, EPC Class1 Gen2
-
Sample:
-
Available
-
Material:
-
Textiles
-
Size:
-
Can be customized
-
Printing:
-
Fabric
-
Application:
-
laundry
-
OEM:
-
Yes
-
Package:
-
1500pcs/box
-
Installation:
-
Sewing or insert, Direct thermal glue

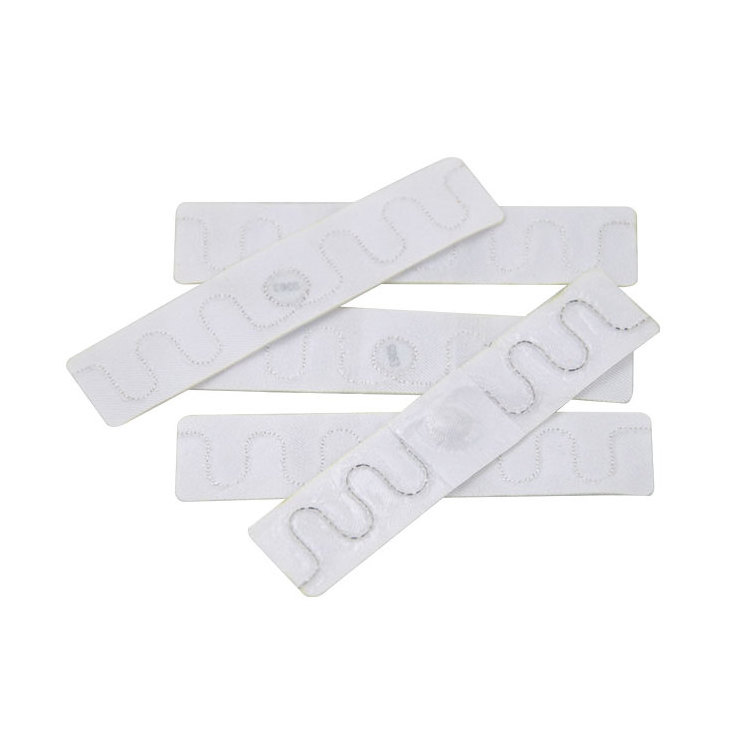

Wholesale Passive RFID UHF Fabric Woven UHF Ironing Washable Tag For Laundry Management
Advantages:
- Achieve and exceed the industrial washing life of more than 200 times;
- 100% memory write test;
- The material and design have passed the reliability test;
- The product has passed the 100% RF consistency test of T agformace equipment in Finland and Europe;
Main features:
- The soft washing label can be customized according to the requirements of customers;
- The soft washing label can be customized to meet the requirements of MRI test;
- Soft, no damage to textiles, good handle;
- The size of chip module is one of the smallest in the international market;
- It can withstand 60bars pressure;
- It is one of the few pre drying processes in the global market that can withstand 180 degrees, 30 minutes and 200 times;
Product application:
- Industrial washing management;
- Grass leasing management;
- Standard clothing management and washing management;
- Work clothes leasing and washing management;
- Hospital linen and washing management;
- Military clothing and bedding management;
- Railway linen management and washing management;
- Police clothing management;
- Management personnel;
- Access control management;
- Fire clothing and soft material management;
- Other applications requiring soft and pressure resistant products.
|
RFID Parameter |
|
|
Model No. |
LDR- 7015F |
|
Type |
Passive UHF RFID Washable Tag |
|
Protocol |
ISO/IEC 18000-6C, EPC Class1 Gen2 |
|
Frequency |
Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
|
Chip |
NXP U code 9 |
|
Memory |
EPC 96 bit |
|
T ID 48 bits |
|
|
0 bits |
|
|
Read&Write |
Supported |
|
Read Range |
F ixed reader : 5.5m (ERP = 2W) 2m ( read by ATID AT880 hand held reader ) |
|
Data retention |
1 0years |
|
Programming Cycles |
100,000 cycles |
|
Physical Parameter |
|
|
Size |
70 × 15mm / 2.76 × 0.59inch |
|
Material |
T extiles |
|
Washing cycles |
200 cycles |
|
Heat resistance |
-40~ 85℃ (-40~185℉) |
|
Installation |
Sewing or insert , Direct thermal glue |
|
Work T emperature |
- 25 ℃ ~ + 110 ℃ |
|
Storage temperature |
- 40 ℃ ~ + 85 ℃ |
|
Washing |
100℃ , 60mins, 120 bars |
|
Converter pre drying |
1 8 0℃ , 30mins , 200times |
|
I roning |
18 0 ℃ , 10seconds, 200times |
|
High T emperature Sterilization |
134℃ , 20mins, RH 85% |
|
Water extractor process |
60 bars |
|
Chemical resistance |
Endure all chemicals common to the washing endurance |
|
Certificate |
RoHS |
|
Weight |
0.7g/pc |
