Quick Details
-
Panel Size:
-
192*192mm
-
Max Resolution:
-
32*32 dots
-
Product name:
-

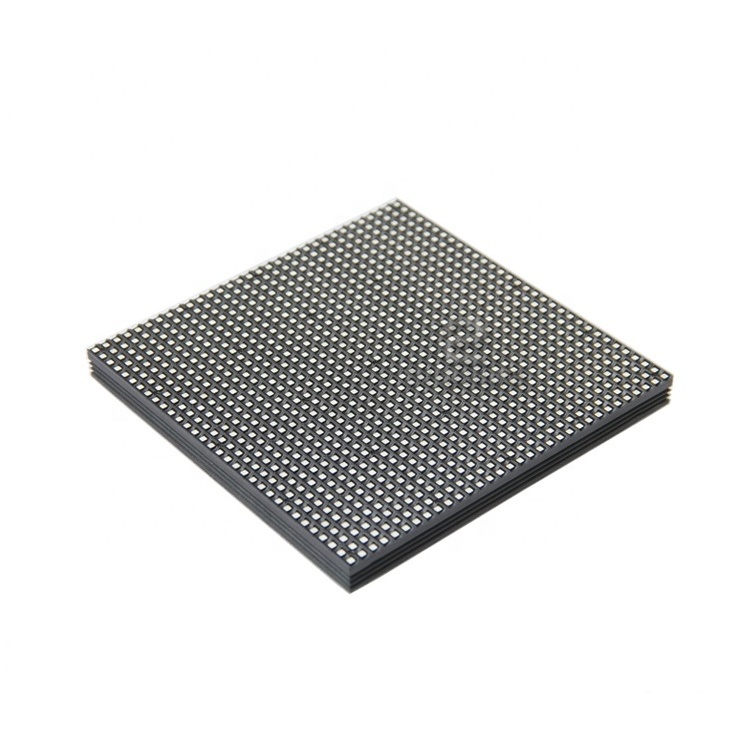

P6 Outdoor LED Module
-
LED chip:
-
Kinglight SMD3535
-
Module resolution:
-
32*32dots
-
Pixel density:
-
27777dots/sqm
-
Brightness:
-
5000nits
-
Refresh rate:
-
>1000Hz
-
Life span:
-
100000hours
-
Certificate:
-
CE EMC ROHS FCC
-
Application:
-
Theater, Exhibition hall, Stage, Meeting room, Monitoring room etc
-
Warranty:
-
1years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EVERSHINE
-
Model Number:
-
ES-P6-OK
-
Panel Size:
-
192*192mm
-
Max Resolution:
-
32*32 dots
-
Product name:
-
P6 Outdoor LED Module
-
LED chip:
-
Kinglight SMD3535
-
Module resolution:
-
32*32dots
-
Pixel density:
-
27777dots/sqm
-
Brightness:
-
5000nits
-
Refresh rate:
-
>1000Hz
-
Life span:
-
100000hours
-
Certificate:
-
CE EMC ROHS FCC
-
Application:
-
Theater, Exhibition hall, Stage, Meeting room, Monitoring room etc
-
Warranty:
-
1years
6mm Smd 32x32 Dot Matrix Full Color Rgb Panel Module Video Wall P6 Outdoor Led Advertising Display Screen
Product Paramenters
|
Module Parameters
|
|
|
|
Module Type
|
P6
|
|
|
Pixel Pitch
|
6mm
|
|
|
Pixel Composition
|
1R1G1B
|
|
|
Pixel LED
|
Kinglight SMD3535
|
|
|
Module Size
|
192(W)x192(H)mm
|
|
|
Resolution
|
32(W)*32(H)dots
|
|
|
Driving Mode
|
1/8
|
|
|
Application
|
Outdoor
|
|
|
Cabinet Parameters
|
|
|
|
Size
|
576x576*75mm
|
|
|
Resolution
|
96x96dots
|
|
|
Module Quantity
|
3x3pcs
|
|
|
Cabinet Type
|
Outdoor use
|
|
|
Material
|
Die-cast aluminum
|
|
|
Weight
|
10.5+0.5Kg
|
|
|
Protection Level
|
IP65
|
|
|
Maintenance Type
|
Backside
|
|
|
Screen Parameters
|
|
|
|
|||
|
Pixels density
|
27777dots/m2
|
Led lamp
|
Kinglight SMD3535
|
|||
|
View distance
|
>6m
|
Gray degree
|
13bit
|
|||
|
Input Voltage
|
AC100-240V/50Hz
|
Operating Temperature
|
﹣20～+60℃
|
|||
|
Max. Power Consumption
|
≤1200W/㎡
|
Working humidity
|
10%～90%
|
|||
|
Ave. Power Consumption
|
≤600W/㎡
|
Frame Frequency
|
50/60Hz
|
|||
|
View Angle
|
H:140° V:140°
|
Input signal
|
PbPr,S-Video,
VGA,HDMI, SDI
|
|||
|
Brightness
|
≥5000CD/㎡
|
Useful life
|
100000hours
|
|||
|
Refresh Rate
|
≥1000Hz
|
Operation System
|
WindowsXP/WIN7
|
|||
|
Application
|
The mall, Supermarket, Square, Hotel, Stage, Station, Commercial advertising etc
|
|
|
|||
Features & Applications
Features
The packaging is made of high-quality cardboard box with pearl cotton and cardboard corners to avoid handling. Product damage due to collision during transportation.
Applications
Transportation industry, power industry, water conservancy industry, security industry, military conference system, urban management, radio and television industry.
