Quick Details
-
Name:
-

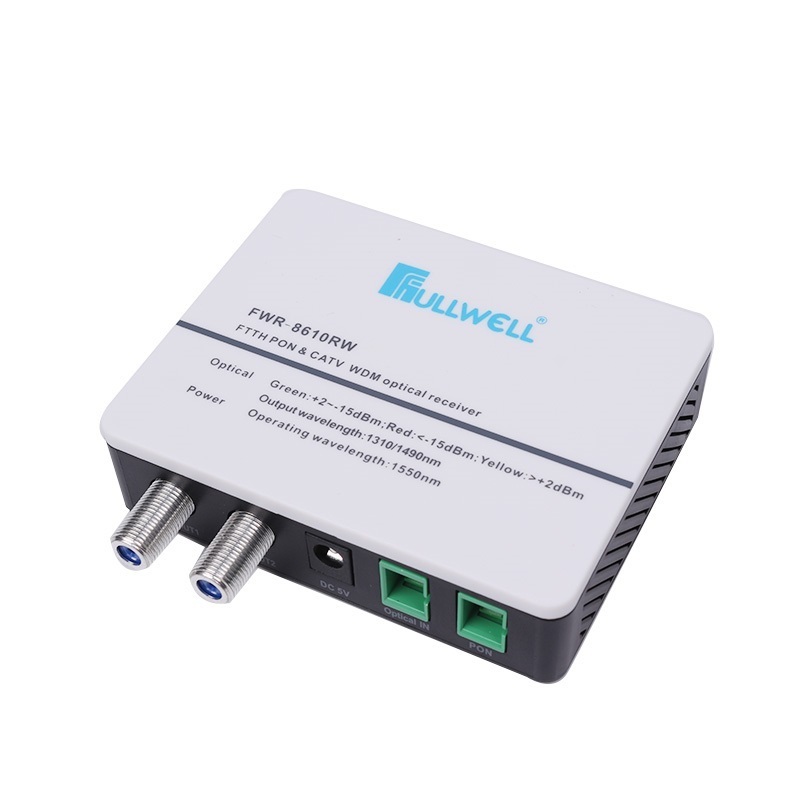

FTTH AGC CATV DBC Optical Receiver
-
Input wavelength:
-
1310/1550/1490nm
-
Dimensions:
-
95*92*23 mm
-
Optical connector:
-
SC/APC ,SC/UPC
-
Power supply:
-
EU or US style power adapter, 5V/0.5A
-
Bandwidth /inequality:
-
47-862/≤±1 MHz/dB
-
Certificate:
-
CE, Rohs, FCC, ISO9001
-
RF output level:
-
78 dBuv
-
Working input power range:
-
+2~-18 dBm
-
AGC range:
-
-2~-12 dBm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fullwell
-
Model Number:
-
FWR-8610RW
-
Name:
-
FTTH AGC CATV DBC Optical Receiver
-
Input wavelength:
-
1310/1550/1490nm
-
Dimensions:
-
95*92*23 mm
-
Optical connector:
-
SC/APC ,SC/UPC
-
Power supply:
-
EU or US style power adapter, 5V/0.5A
-
Bandwidth /inequality:
-
47-862/≤±1 MHz/dB
-
Certificate:
-
CE, Rohs, FCC, ISO9001
-
RF output level:
-
78 dBuv
-
Working input power range:
-
+2~-18 dBm
-
AGC range:
-
-2~-12 dBm
Production description
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, FWR-8610RW optical receiver is the target terminal products for this goal. FWR-8610RW device adopts technology of high isolation WDM in order to separate CATV and ONU signal. Further more, it also adopts low optical power receiving and RF-AGC control technique, which could achieve the requirement of ≤-18dBm CATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly , convenience of customers use, which is the ideal receiver equipment for FTTH.
|
Item
|
|
Unit
|
FWR-8610RW(2 RF)
|
|
|
|
Input Wavelength
|
(nm)
|
1310/1490/1550
|
|
|
|
Output Wavelength
|
(nm)
|
1310/1490
|
|
|
|
Operation Wavelength
|
(nm)
|
1540~1560
|
|
|
|
Channel Separation
|
(dB)
|
≥40(1310/1490nm and 1550nm )
|
|
|
|
Response
|
(A/W)
|
≥0.9
|
|
|
|
Receive Power Range
|
(dBm)
|
-18~-2
|
|
|
|
Reflection Loss
|
(dB)
|
≥55
|
|
|
|
Fiber Linker
|
/
|
SC/APC
|
|
|
|
Pon Linker
|
/
|
SC/UPC(or SC/APC)
|
|
|
RF Characteristic
|
Bandwidth/Flatness
|
MHz/dB
|
47-1000/≤±1
|
|
|
|
Output Level
|
dBuv
|
AGC:2*76±1/(-2~--12dBm)
|
|
|
|
Reflection Loss
|
dB
|
≥14(75Ω characteristic impedance)
|
|
|
|
RF Output Interface
|
/
|
2 way output
|
|
|
|
CNR/MER
|
dB
|
≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
|
|
|
|
CTB/CSO/HUM
|
dB
|
≥65/≥60/≥60(-1dBm receive)
|
|
|
|
Power Supply/Consumption
|
V/W
|
External AC100~240V→DC5/5
|
|
|
|
Working/Storage Temperature
|
℃
|
-35~50/-40~75(humidity 5~90%)
|
|
Product Feature
♦ FWR-8610RW/W is input interface of optical signal,in optical access should clean APC TOP by alcohol ,than align adapter sunken mouth, fiber mouth march link.
♦ When optical signal accesses (≥-18dBm) then lights on in panel, which shows optical part is regularly working; Lights will be changed by receive power as yellow(>+2dBm), green(+2~-18dBm) and red (<-18dBm).
♦ ONU is 1310/1490/1550nm connection interface, please do not take off the cover before you use.
