* Material of filling valve: Stainless steel 304
* Material of rotary tray and machine platform of rinser and filler: Stainless steel 304
* Main motor: ABB
* Sliding bearing: Igus
* Frequency inverter: Mitsubishi
* Touch screen: Pro-face
* PLC: Mitsubishi
* Pneumatic components: Airtac
* Photocell switch: Leuze
* Proximity switch: Leuze
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±0.05%
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunswell
-
Dimension(L*W*H):
-
10000*3200*2750mm
-
Weight:
-
20000 KG
-
Usage:
-
Beverage Filling Packaging
-
Keywords:
-
High Precision
-
Processing Types:
-
Automatic Filling Production Line
-
Function:
-
Bottle Blowing Filling Capping
-
Suitable for:
-
Carbonated Drink Filling Line
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Machinery Capacity:
-
8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Water, Juice
-
Filling Accuracy:
-
±0.05%
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunswell
-
Dimension(L*W*H):
-
10000*3200*2750mm
-
Weight:
-
20000 KG
-
Usage:
-
Beverage Filling Packaging
-
Keywords:
-
High Precision
-
Processing Types:
-
Automatic Filling Production Line
-
Function:
-
Bottle Blowing Filling Capping
-
Suitable for:
-
Carbonated Drink Filling Line
-
Advantage:
-
Easy Operation High Efficiency
Product Description

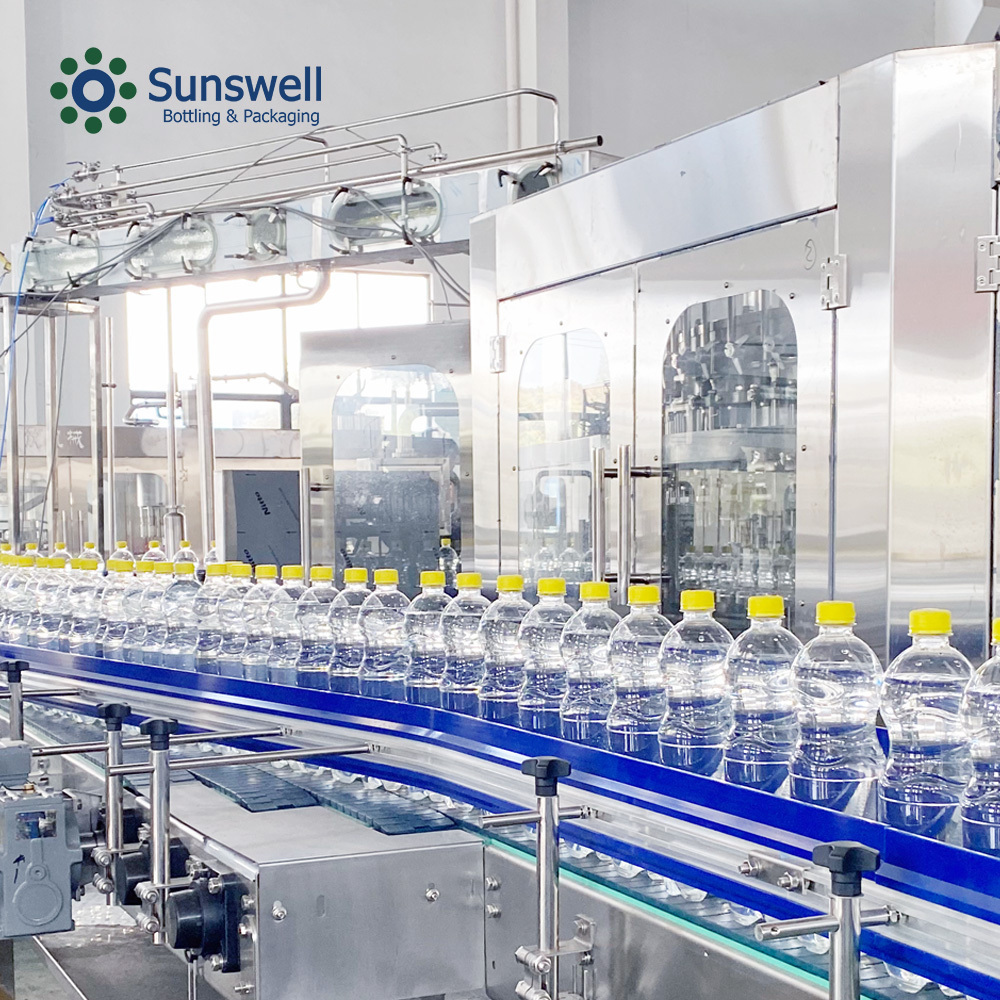

Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping.
DXGF series is special for carbonated soft drinks, soda water, oxygen / hydrogen rich water, energy drinks filling, combined with rinsing, filling and capping.
It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad.
It is reasonable in structure, safe to operate and easy tomaintain, which is an ideal choice for beverage producers.
Water treatment systerm
Bottle blowing machine
PreMix Carbonator
*
Wide range of uses: in addition to carbonated beverages, it can also be applied to some other types of soft drinks;
*
Adjustable carbonation pressure: adjusted by changing the carbonation state to form an optimal operating condition for the filling machine;
PreMix Carbonator
*
The mixing ratio of raw materials is accurate and easy to adjust, which can easily adjust the production capacity and the ratio of water and syrup;
*
The machine is equipped with a piping system capable of hot water disinfection (CIP), thus ensuring the hygienic
requirements of the product.
Empty air conveyor
*
Air conveyor, star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.
Bottle infeed
* Bottle infeed by combination of air conveyor and infeed starwheel.
* Equipped with bottle jam protection device.
* Equipped with bottle jam protection device.
Rinser
*
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
* All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
* The rinser is driven by driving system positioned inside machine frame via gear transmission.
* All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
* The rinser is driven by driving system positioned inside machine frame via gear transmission.
Starwheel
*
The material is super-corrosion stainless steel ,the wheel has block bottle protect device.
Filler
* Bottles go up and down by pneumatic cylinders and cams, to process filling with contact to bottle-mouth.
* Level of cylinder is controlled with float-ball.
* Filler is driven through gears inside the machine frame.
* Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
* Level of cylinder is controlled with float-ball.
* Filler is driven through gears inside the machine frame.
* Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Capper
* Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
* The capper is equipped with inlet bottle detection switch.
* Centrifugal way of cap arranging is adopted to reduce damage of caps.
* A cap inspecting system is applied to control on-off of elevator.
* The capper is equipped with inlet bottle detection switch.
* Centrifugal way of cap arranging is adopted to reduce damage of caps.
* A cap inspecting system is applied to control on-off of elevator.
Labeling machine
* OPP sticker hot melt adhesive labeling
* Self-adhesive labeling machine
* Cold glue labeling machine
* Self-adhesive labeling machine
* Cold glue labeling machine
Film shrink wrapping packing
* Shrink film wrapping machine
* Carton packing machine
* Half tray shrink film wrapping machine
* Carton packing machine
* Half tray shrink film wrapping machine
Main Configuration
Main Configuration
|
Model
|
Filling Heads
|
Capacity
500ml
|
Bottle Size
|
Power
|
Dimension(mm)
|
Weight(KG)
|
|
DXGF14-12-5
|
12
|
2500BPH
|
200-2000ml
|
1.8kw
|
2200×1800 × 2000
|
2500
|
|
DXGF 18-18-6
|
18
|
3000BPH
|
200-2000ml
|
2.6kw
|
2500 × 1800 × 2300
|
3000
|
|
DXGF 24-24-8
|
24
|
6500BPH
|
200-2000ml
|
3.8kw
|
2800 × 2100 × 2300
|
5000
|
|
DXGF 32-32-10
|
32
|
8000BPH
|
200-2000ml
|
4.2kw
|
3500 × 2200 × 2300
|
6000
|
|
DXGF 40-40-10
|
40
|
1000BPH
|
200-2000ml
|
7kw
|
4760 × 2080 × 2300
|
7000
|
|
DXGF 50-50-12
|
50
|
13000BPH
|
200-2000ml
|
9kw
|
5150 × 3820 × 2700
|
10000
|
|
DXGF 60-60-15
|
60
|
17000BPH
|
200-2000ml
|
13kw
|
5300 × 3950 × 2700
|
8500
|
|
DXGF 72-72-18
|
72
|
19000BPH
|
200-2000ml
|
16kw
|
6250 × 4773 × 2700
|
8500
|
