It is suitable for evaporation and concentration of various materials, especially for materials which are not easy to scale, evaporate easily or have strong thermal sensitivity.
2. System components
Evaporation part , separator part , condenser , vacuum system, water discharge system , material in every effect , pumps, working platform , Electrical instrumentation control cabinet and valves, piping system composition.

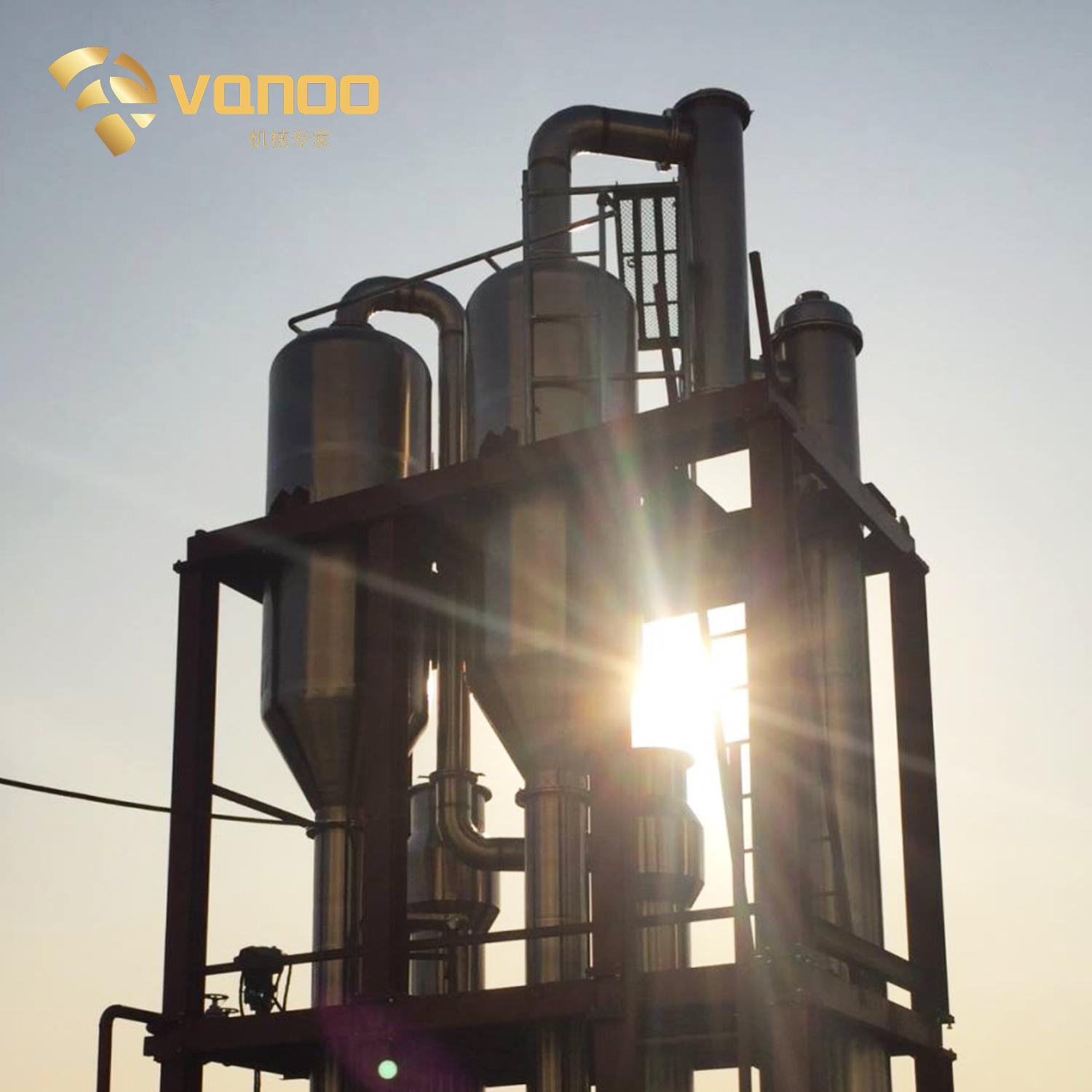

3. Multi-effect evaporation concentration equipment
When the new steam enters the first effect as a heat source, the second effect is introduced into the second effect, and so on. Multiple evaporators are connected and operated together, that is, a multi-effect evaporation system is formed. In the multi-effect evaporation system, the latent heat of steam can be reused, which can significantly reduce the energy consumption, greatly reduce the energy consumption and improve the thermal efficiency.
4.Main characteristics
* Pump flow rate is relatively small, low installed power, low power consumption.
* Concentration ratio is large, falling film evaporation, concentration time is short.
* Special design can be easily operated to achieve switching efficiency to adapt to different products.
* Evaporator top spraying material or through multiple overflow film device ensures the material and liquid evenly distributed in the evaporator film tube, forming a film shape, which greatly improves the heat transfer coefficient and increases the evaporation rate, thus preventing "dry wall" phenomenon.
* Feed liquid at the bottom of the evaporator vapor liquid separation, into the separator and then separation, strengthening the separation effect.
* Large equipment adopts vertical and vertical structure, with compact structure, small footprint, simple and smooth layout, representing the development aspect of large complete sets of evaporation equipment.
5.Equipment with CIP cleaning pipeline, can be cleaned easily .
