Quick Details
-
Model Number:
-
COLO-8856
-
Model:
-
COLO-8856
-
USED FOR:
-
POWDER COATING THICKNESS MEASURING EQUIPMENT
-
Function:
-
Paint thickness meter
-
Type:
-
Microprocessor Paint thickness meter
Quick Details
-
Warranty:
-
None
-
Place of Origin:
-
China
-
Brand Name:
-
COLO
-
Model Number:
-
COLO-8856
-
Model:
-
COLO-8856
-
USED FOR:
-
POWDER COATING THICKNESS MEASURING EQUIPMENT
-
Function:
-
Paint thickness meter
-
Type:
-
Microprocessor Paint thickness meter
Product Description
Electronics precise powder coating paint thickness testing gauge
Powder Coating & Painting Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers all a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.
Details Images
Coating Thickness Gauge Introduction
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
Specification
|
Model
|
COLO-8856
|
|
Measuring range
|
0-1000um/0-40mil
|
|
Operating Principle
|
magnetic induction/eddy current (F/NF)
|
|
Resolution
|
0.1 um(0-99.9um) , 1um (over 100um)
|
|
Accuracy
|
+/-1-3%n or 2.5 um
|
|
Min. measuring area
|
6mm
|
|
Min. sample thickness
|
0.3mm
|
|
Battery indicator
|
low battery indicator
|
|
Metric/ imperial
|
convertible
|
|
Display
|
4 digits, 10mm LCD
|
|
Battery
|
4 x 1.5V AA(UM-3)battery (not included)
|
|
Packing
|

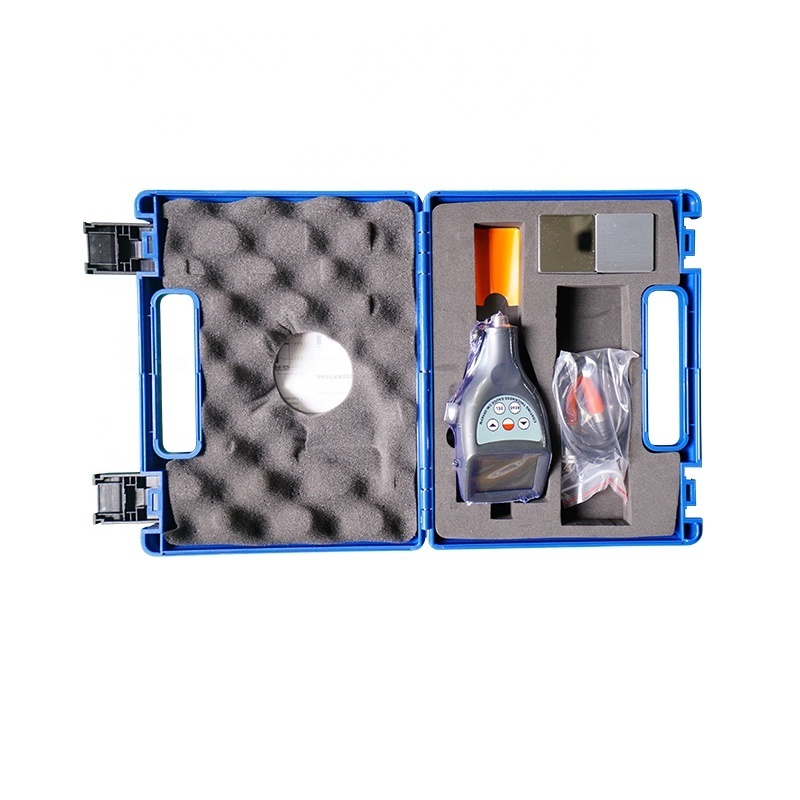

Protective Carrying Case with Shock absorbent contoured rubber inside
|
|
Auto power off
|
yes
|
|
Automatic Calibration
|
(when no other metal substrate near the probe sensor upon switching on)
|
