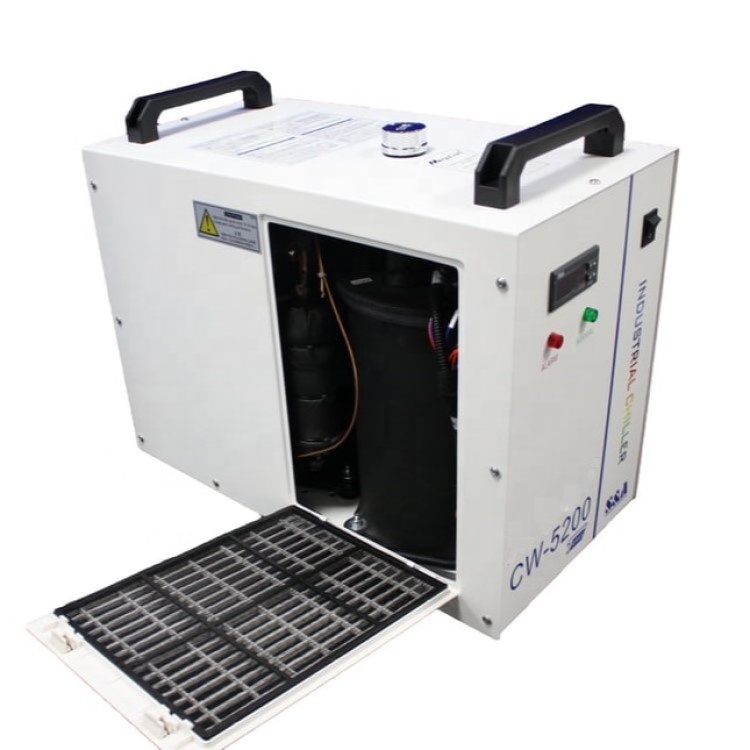

Manufacturer CW5200 CW5200 CW6002 Air Cooled CO2 Cooling Jacket Cold Plunge Chiller laser water chiller

Manufacturer CW5200 CW5200 CW6002 Air Cooled CO2 Cooling Jacket Cold Plunge Chiller laser water chiller

FOB Reference Price: Get Latest Price

≥1 Pieces

US $103

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: S&A

Voltage:: 110V/220V, AC 1P 110V/220V

Dimension(L*W*H):: 49 X 27 X 38cm

Weight:: 9 KG

Power:: 800w

Working Temperature Range:: 15-35℃

Product name:: Laser Water Chiller

Model:: CW3000/CW5000/CW5200/CW6000

Application:: Industrial Cooling Machine For 40-180W Co2 Laser Tube

Pump power:: 0.03KW / 0.05KW

Max. lift:: 10M-12M

Max.flow:: 10L/min

Package Dimension:: 65 X 39X 56cm

Water Tank Capacity:: 6-15 Liter

Refrigerant:: R-22/R-410a

Inlet And Outlet:: Rp1/2+Rp1/2

Quick Details

Warranty of core components:: 24 months

Condition:: New

Place of Origin:: Jilin, China

Brand Name:: S&A

Voltage:: 110V/220V, AC 1P 110V/220V

Dimension(L*W*H):: 49 X 27 X 38cm

Weight:: 9 KG

Power:: 800w

Working Temperature Range:: 15-35℃

Product name:: Laser Water Chiller

Model:: CW3000/CW5000/CW5200/CW6000

Application:: Industrial Cooling Machine For 40-180W Co2 Laser Tube

Pump power:: 0.03KW / 0.05KW

Max. lift:: 10M-12M

Max.flow:: 10L/min

Package Dimension:: 65 X 39X 56cm

Water Tank Capacity:: 6-15 Liter

Refrigerant:: R-22/R-410a

Inlet And Outlet:: Rp1/2+Rp1/2

Manufacturer CW5200 CW5200 CW6002 Air Cooled CO2 Cooling Jacket Cold Plunge Chiller laser water chiller

Product Description

The Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000 intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions.

Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000 Multiple alarm functions: compressor time-delay protection, compressor over current protection, water flow alarm and over high & low temperature alarm;

S&A CW Series industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With one button control system, customers no need to worry about the water temperature adjustment of seasonal changes.

With S&A Co2 Laser industrial Chiller CW3000 CW5000 CW5200 CW6000 , your CO2 laser can be properly cooled. Up to 300W CO2 laser or 60W RF CO2 laser, this mini water chiller unit can offer highly reliable cooling. It has temperature stability of ±0.3°C as well as cooling capacity up to 3150W. With compact design, S&A Laser chiller takes up less floor space for CO2 laser cutter engraver users. Multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards. Heater is optional to help rising water temperature quickly in winter.

Why buy from YONGLI?

* We have over 25 years of experience in installing and supporting industrial chiller products;
* Fast delivery from the stock;
* TWO years warranty on all S&A chillers;
* Technical online support via Alibaba and email 24x7;
* Excellent after-sales service. Any faulty items are returned to us for immediate new replacement .

* Great customer service and able to recommend the correct unit based on your application.

Technical Parameters

Model

CW3000DG

CW3000TG

CW5000DG

CW5000TG

CW5200DH

CW5200TH

CW6000AH

CW6000 DH

Voltage

AC 1P 110V

AC 1P 220V

AC 1P 110V

AC 1P 220V

AC 1P 110V

AC 1P 220V

AC 1P 110V

Frequency

50/60Hz

60Hz

50/60Hz

60Hz

50/60Hz

60Hz

Current

0.4~0.9A

0.4~1A

0.4~5.3A

0.4~3.1A

0.5~8.9A

0.5~4.6A

0.5~7.2A

0.5~13.5A

Machine power

0.1KW

0.43KW

0.44/0.46kw

0.77kW

0.74/0.82kW

0.98kW

1.34kW

Compressor power

0.38kW

0.37/0.39kW

0.66kW

0.6/0.62kW

1.06kW

1.12kW

Nominal cooling capacity

1.03kw

0.89/1.08kw

1.67kw

1.77/2.14kw

3.14kw

3.15kw

Pump power

0.03kw

0.05kw

0.05kW

0.05kw

Max. lift

10m

12m

Max.flow

10L/min

13L/min

N.W.

8.7kgs

9kgs

21.5kgs

20.5kgs

22.7kgs

26.4kgs

53kgs

60Kgs

G.W.

11kgs

11.3kgs

24.5kgs

23.5kgs

25.7kgs

29.4kgs

63kgs

70Kgs

Precision

±0.3℃

±0.5℃

Tank capacity

15L

Inlet and outlet

OD 10mm barbed connector

Rp1/2"

Dimension

49 X 27 X 38cm

58 X 29 X 47cm

67 X 47 X 89cm (L X W X H)

Package Dimension

59 X 38 X 47cm

65 X 39X 56cm

74 X 61 X 103cm

Suitable laser tube power

≤80W

80W-120W

120W-130W

Above 130W

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Details

POWERFUL COOLING: YongLI S&A CW3000/CW5000/CW5200/CW6000 industrial Chiller uses standard R410a refrigerant to keep laser cutting and engraving machines up to 150W nice and cool during use; its 2.6 GPM flow rate and 0.9hp compressor can cool up to 5186 BTU per hour
CAPACIOUS TANK: The 1.6-gallon (6L) Industrial Water Chiller water tank is enclosed to reduce evaporation and provide long-term service between refills; the clear observation window lets you know when it's time to top off
HIGH-GRADE PORTS : Our Industrial Water Chiller's inlet and outlet ports are made of premium brass for long-term corrosion-free performance; their careful design prevents any issues with leaks as it operates
SAFE OPERATION: This Laser Tube Industrial Water Chiller includes internal sensors to keep temperatures within 0.3℃ of constant and to let you know via digital display, indicator lights, and alarms when everything's going smoothly and when it's time to make adjustments
SATISFACTION GUARANTEED: YongLi S&A Industrial Water Chiller Strong warranty and friendly 24/7 customer service let you order with confidence that this Co2 Laser Chiller industrial will meet all your cooling needs for your CO2 laser Engraving Cutting machine.

1. Independent production of sheet metal, High precision temperature control system.Temperature control accuracy can reach ±0.3℃.

2. Ease of moving and water filling. The firm handle can help move the water chillers easily.

3. Inlet and outlet connector equipped
4. Multiple alarm protection. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

5. Cooling fan of famous brand installed Level gauge equipped. Adopt SAN JU cooling fan with high quality and low failure rate.

Application

I ndustrial water chiller: suitable for cooling CO2 laser, YAG laser, laser diode and so on

1.industrial water Chiller for Fiber Laser Cutting Machine
2.industrial Water Chiller for UV Laser marking machine
3.industrial Water Chiller for Laser Cutting Machine
4.industrial Water Chiller for CO2 Laser Tube
5.industrial Water Chiller for CO2 Laser engraver
6.industrial Water Chiller for Co2 Laser Cutter

Packing&Shipping

Every S&A CO2 laser chillers we deliver to our clients is well packed in durable materials that can protect the chiller from moisture and dust during the long-distance transportation so that it stays intact and in perfect condition when it arrives to the clients' places.
We can offer delivery by express, air and sea. Different delivery time, and different cost.
For the express: 5~7 working days to North America, Asia,Europe. 7~9 working days to South America, and Africa.

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.
