Quick Details
-
Model Number:
-
200mm
-
Name:
-
snap design plastic drum spool for wire shipping
-
Material:
-
PS flange+PP tube
-
Color:
-
Black
-
flange od:
-
200mm
-
barrel od:
-
60mm
-
traverse width:
-
60-220mm made to order
-
total height:
-
58-228mm made to order
-
centre hole diameter:
-
32mm
-
flange thickness:
-
4mm
-
usage:
-
for wire shipping,rope
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
changhong
-
Model Number:
-
200mm
-
Name:
-
snap design plastic drum spool for wire shipping
-
Material:
-
PS flange+PP tube
-
Color:
-
Black
-
flange od:
-
200mm
-
barrel od:
-
60mm
-
traverse width:
-
60-220mm made to order
-
total height:
-
58-228mm made to order
-
centre hole diameter:
-
32mm
-
flange thickness:
-
4mm
-
usage:
-
for wire shipping,rope

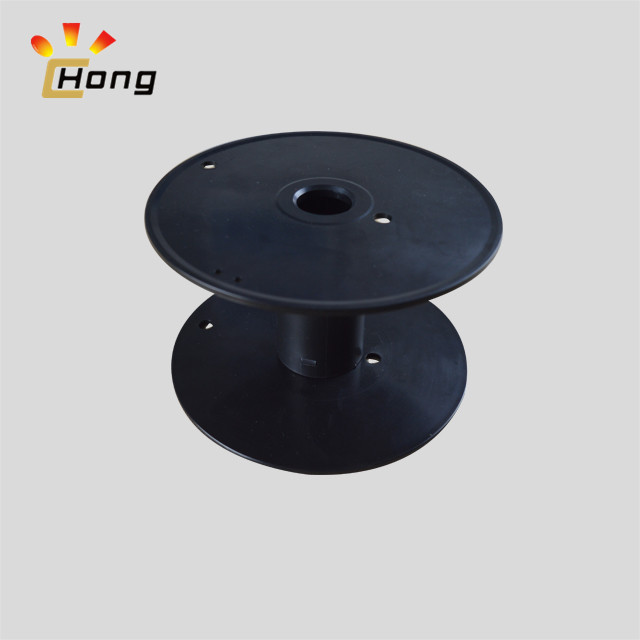

200mm plastic bobbin spool for wire shipping
1. Snap hook design,assemble easily,no need other tools.
2.We can provide unassemble parts,it can save much space for transportation.
3. L2 can be made to order,60-220mm
4 . We can provide suitable dimension and design according to your cable OD and meters
5.We can provide free sample for your testing.
|
|
dimension |
|
mm |
|
flange OD |
d1 |
120 |
|
|
barrel OD |
d2 |
60 |
|
|
inner width |
L2 |
60-220 |
|
|
overall width |
L1 |
L2+8 |
|
|
centre hole diameter |
h |
32 |
|
|
flange thickness |
T |
4 |
|
|
material |
PS ROHS | ||
|
structure |
snap hook design |
||
Same design,special size made to order:
| flange od(d1) | barrel od(d2) | traverse width(L2) | total height(L2) | centre hole diameter(h) | falnge thickness(T) |
| 120mm | 60mm | 60-220mm | 68-228mm | 32mm | 4mm |
| 165mm | 60mm | 60-220mm | 68-228mm | 32mm | 4mm |
| 200mm | 60mm | 60-220mm | 68-228mm | 32mm | 4mm |
| 300mm | 100mm | 60-210mm | 68-218mm | 32/40/60mm | 4mm |
Usually we use cartons,we will advise suitable packing method.
