- Product Details
- {{item.text}}
Quick Details
-
Function:
-
Digital timer, counter, frequency meter, tacho meter
-
Display:
-
Dual Line 6 LED display
-
Preset:
-
1 preset setting
-
Material:
-
ABS Plastic housing+Electronic components
-
Power supply:
-
AC 110V/220V
-
Size:
-
36*72/48/48/72/72/48/96mm optional
-
IP rating:
-
IP54
-
Packing:
-
1pc /box
Quick Details
-
Brand Name:
-
IBEST
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CRL-R613(4/7/8)C/F/T
-
Function:
-
Digital timer, counter, frequency meter, tacho meter
-
Display:
-
Dual Line 6 LED display
-
Preset:
-
1 preset setting
-
Material:
-
ABS Plastic housing+Electronic components
-
Power supply:
-
AC 110V/220V
-
Size:
-
36*72/48/48/72/72/48/96mm optional
-
IP rating:
-
IP54
-
Packing:
-
1pc /box

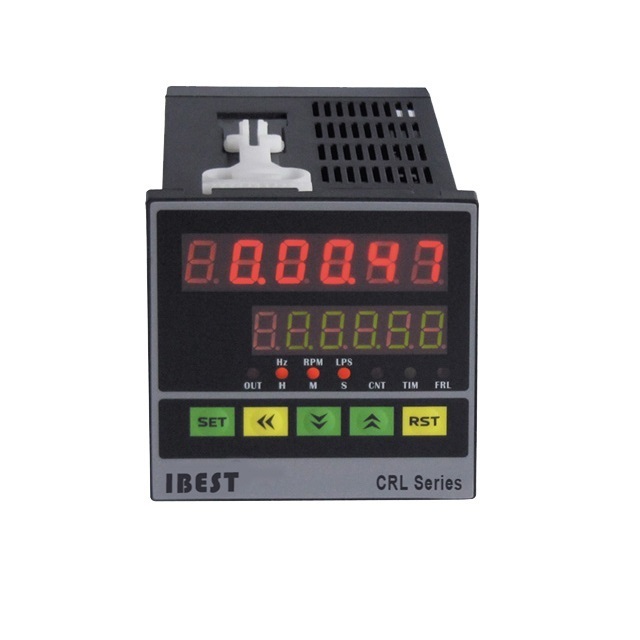

CRL Multi-Fuction Digital Preset Counter/Timer/ Frequency Meter/Tacho Meter
Dual Line 6 digit / 4 Sizes Optional / 1 Preset
1. Features:
* Preset counter /Timer/Frequency / Tacho / linespeed Meter, user can convert freely by soft buttons operation, 6 LED display.
* Counting mode: counting Up or Down, timing UP or Down.
* Input mode: voltage(PNP),non-voltage input (NPN)
* Relay output; optional control output: N, F, C, R; 1 preset output only.
* Counter speed: 30 Hz or 1000Hz; with DC 12V or 24V transmitter supply.
* Counter modulus can be set freely; timer range can be set freely; decimal point can be set freely(max.3 decimal points)
* Power fail holding function; parameters can be locked or unlocked.
* Reset modes: manual reset, auto reset, external reset
* Dimensions: 36X72mm,48X48mm, 72X72mm, 48X96mm
* Application: can be used with photoelectric sensor, proximity switch, and rotary encoder in the fields of machinery, light industrial, packing and packaging,food and beverage, for measure length, counter etc.
2.Ordering Code:
|
|
3. Technical Specification
4. Instrument Dimensions:
5. Electric Wire Drawing:
