Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2500*1400*1600mm
-
Application:
-
sawmills, wood cutting, all workshop for sawing wood
-
Weight (KG):
-
2200 KG
-
Power (kW):
-
3kw
-
Max.Working Width(mm):
-
600mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Automatic Log carriage
-
Max sawing diameter:
-
200-600mm
-
Max sawing length:
-
1500-2500mm
-
Log locking:
-
Automatic(3units)
-
Log turning:
-
Automatic(3units)
-
Cutting speed:
-
Adjustable
-
Hydraulic power:
-
3kw
-
Weight:
-
2200KG
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YSDMILL
-
Usage:
-
wood cutting
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2500*1400*1600mm
-
Application:
-
sawmills, wood cutting, all workshop for sawing wood
-
Weight (KG):
-
2200 KG
-
Power (kW):
-
3kw
-
Max.Working Width(mm):
-
600mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Automatic Log carriage
-
Max sawing diameter:
-
200-600mm
-
Max sawing length:
-
1500-2500mm
-
Log locking:
-
Automatic(3units)
-
Log turning:
-
Automatic(3units)
-
Cutting speed:
-
Adjustable
-
Hydraulic power:
-
3kw
-
Weight:
-
2200KG
Specification
|

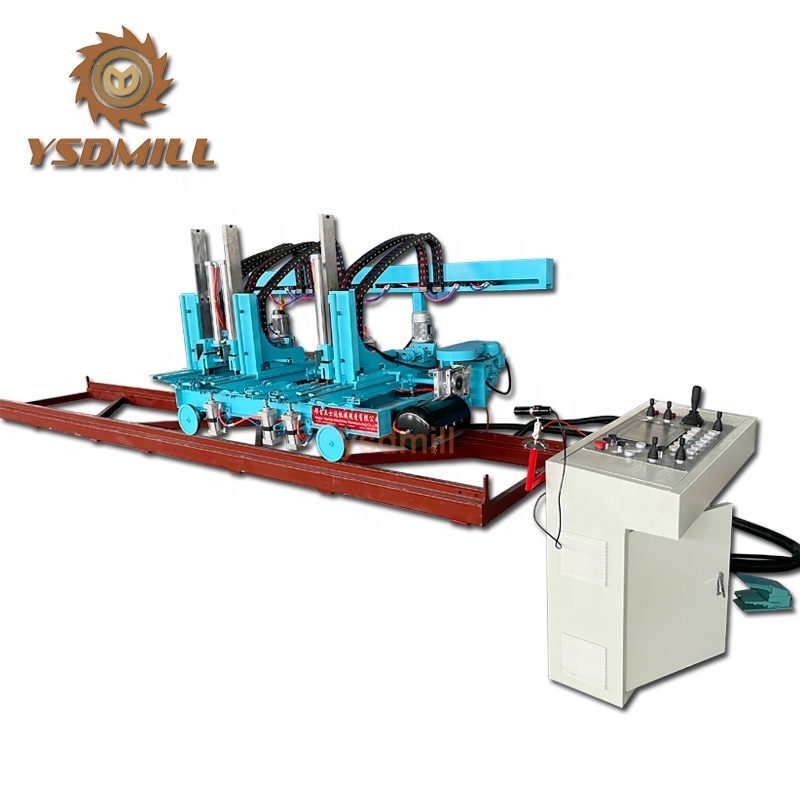

Sawmill wood cutting automatic Log carriage
|
|
|
|
|||
|
Model
|
YAP25-600
|
YSL40-1200
|
YSL40-1500
|
|||
|
Max sawing diameter
|
200-600mm
|
1200MM
|
1500MM
|
|||
|
Max sawing length
|
1500-2500mm
|
3000MM
|
3000MM
|
|||
|
Log locking
|
Automatic(3units)
|
Hydraulic
|
Hydraulic
|
|||
|
Log turning
|
Automatic(3units)
|
4 Units
|
4 Units
|
|||
|
Moveable headblocks(Taper)
|
Automatic(2units)
|
|
|
|||
|
Cutting speed
|
Adjustable
|
|
|
|||
|
Cutting measurement
|
Automatic
|
|
|
|||
|
Carriage walking motor
|
2.2kw
|
|
|
|||
|
Measurement motor
|
3kw
|
4kw
|
7.5kw
|
|||
|
Voltage
|
380V/50Hz/3Phase
|
|
|
|||
|
Overall size
|
2500*1400*1600mm
|
|
|
|||
|
Weight
|
2200kg
|
|
|
|||
|
Custom made service are provided
|
2500KG
|
3100KG
|
4000KG
|
|||
Product Description
Details Images
Pneumatic automatic lock log headblocks, with automatic hook in and hook out.
Automatic
log turning
Pneumatic tank system for log locking
High quality motor, stronger power, longer service life
Customized i ntegrated track and wheels. Wheels are carried by a double set of cup and cone roller bearings.
Touch screen with joy stick, japan and germany electric parts for reliable operation.
Packing & Delivery
Plastic film outside or as customer requirement
