Quick Details
-
Applicable Industries:
-
paper
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Honggang
-
Voltage:
-
220v/380v or customized
-
Dimension(L*W*H):
-
2330*1320*1260mm
-
Weight:
-
2000 kg, 2000kg
-
PLC Brand:
-
Honggang
-
After-sales Service Provided:
-
Field maintenance and repair service
-
name:
-
jigsaw puzzle press machine
-
vacuum or hydraulic:
-
hydraulic oil
-
Cylinders:
-
two
-
structure:
-
Four column,self-balancing connecting
-
cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Pressure:
-
30T
-
max openning:
-
50-240mm or 300mm or Customize
-
Power:
-
2.2kw
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1600mm
-
Applicable Industries:
-
paper
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Honggang
-
Voltage:
-
220v/380v or customized
-
Dimension(L*W*H):
-
2330*1320*1260mm
-
Weight:
-
2000 kg, 2000kg
-
PLC Brand:
-
Honggang
-
After-sales Service Provided:
-
Field maintenance and repair service
-
name:
-
jigsaw puzzle press machine
-
vacuum or hydraulic:
-
hydraulic oil
-
Cylinders:
-
two
-
structure:
-
Four column,self-balancing connecting
-
cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Pressure:
-
30T
-
max openning:
-
50-240mm or 300mm or Customize
-
Power:
-
2.2kw
semi-automatic hydraulic die jigsaw puzzle press machine
What application of die press machine?
1.application
This machine is cut material by dies/moulds,it usually used for die cutting paper puzzle product,such as jigsaw puzzle,wooden puzzle,toy puzzle,Digital puzzle,and so on,it apply to die cut all non-metallic materials.
If you have any question,welcome to contact us,we would very happy to answer for you.
What advantages of our die press machine?
2.main advantages
1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.
2.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
3.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.
4.Central automatic lubrication system, increases machine durability, prolong the working time.
5.Suitable for single-layer or multi-layer sheet or roll materials.
semi-automatic hydraulic die jigsaw puzzle press machine
What technical data of our die press machine?
3.Technical data
|
Models |
HG-B30T/63'' |
|
Input power source |
220V/380V /415V |
|
Cutting Area(mm) |
610*1600 mm or 610*1220mm or custom |
|
Machine Dimension(mm) |
1950*1320*1260mm |
|
Stroke(mm) |
50-240mm |
|
Operation precision |
±0.01mm |
|
Motor power(kw) |
2.2kw |
|
Machine Weight(kg) |
2000kg |
|
Cutting Force |
30Tons,40Tons,50Tons or custom |

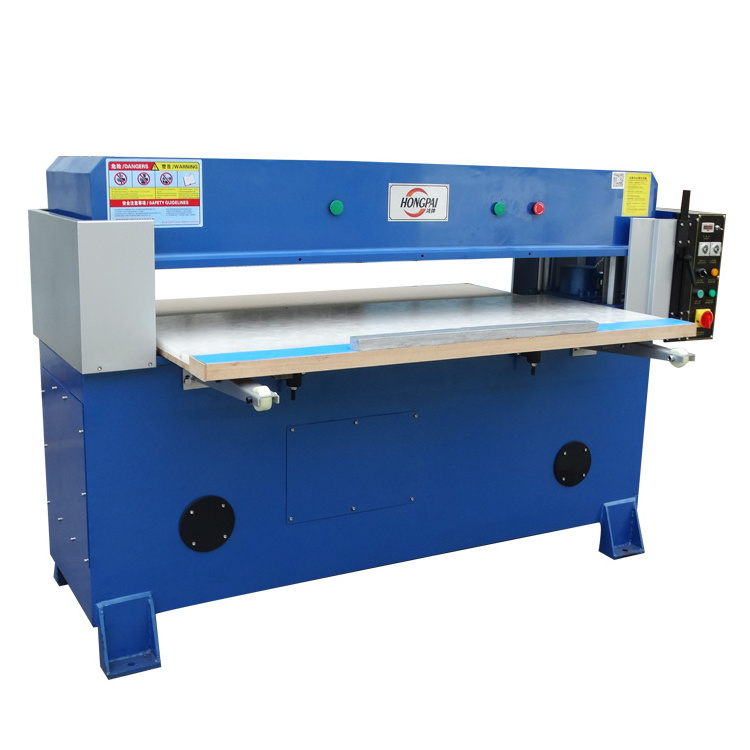

4.machine photo
semi-automatic hydraulic die jigsaw puzzle press machine
semi-automatic hydraulic die jigsaw puzzle press machine
5.product sample
6.after-sale service
1.During the first year,all parts are for free,except the consumables and artificially damaged.
2.We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.we also can provide oversea service.
3.You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
4.We manufacture many embossing machines and hydraulic cutting machines.Such as,four-column plane cutting,gantry,roller cutting.Please find more info on our website.
5.We welcome you come to visit our plant,give us your suggestions,we will try our best to satisfy you.
7.Agent wanted
We want agent from all over the world,we welcome agent come to our plant for business negotiation.We give agent competitive price and guarantee the quality,it ’ s good that you can do after sale service in your area for customer convenience.
8.We appreciated that if you can supply following details,so we can give you more useful suggestion:
| 1.The cutting size(width*length)? | |
| 2.The minimum and maximum cutting thickness? | |
| 3.The Cutting material? |
