Application Field:
It is used in the transportation and production lines of mining, metallurgy, chemical, foundry, building materials and other industries, as well as hydropower station construction sites and ports.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
380V or client request
-
Dimension(L*W*H):
-
Depending on the model
-
Marketing Type:
-
High Quality Product
-
Core Components:
-
Main parts
-
Weight (KG):
-
1000 kg
-
Product name:
-
Belt Conveyer
-
Usage:
-
Conveying Products
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
Capacity:
-
1-3000t/h
-
Speed:
-
1-2m/s
-
Belt width:
-
Many chooses
-
Application:
-
Transportation
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
-
Test&Installation:
-
Senior Professional Engineers Assigned
Quick Details
-
Power:
-
4-185kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Depend on the client request
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
380V or client request
-
Dimension(L*W*H):
-
Depending on the model
-
Marketing Type:
-
High Quality Product
-
Core Components:
-
Main parts
-
Weight (KG):
-
1000 kg
-
Product name:
-
Belt Conveyer
-
Usage:
-
Conveying Products
-
Belt material:
-
PVC PU Rubber Steel Rubber
-
Capacity:
-
1-3000t/h
-
Speed:
-
1-2m/s
-
Belt width:
-
Many chooses
-
Application:
-
Transportation
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
-
Test&Installation:
-
Senior Professional Engineers Assigned
Product Description

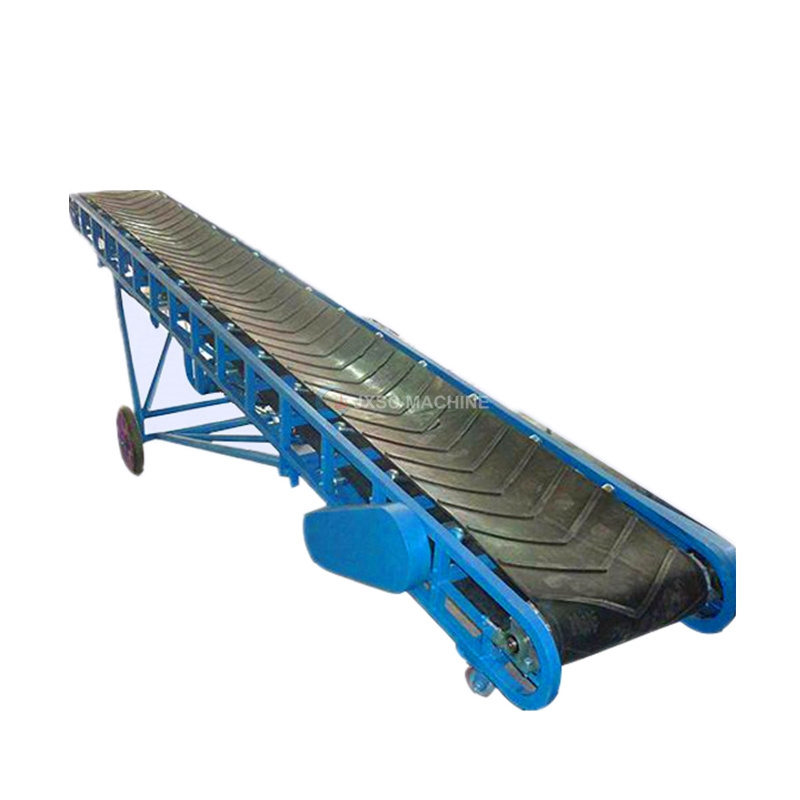

Industrial Belt Conveyor For Mining
Product Introduction:
Application Field:
It is used in the transportation and production lines of mining, metallurgy, chemical, foundry, building materials and other industries, as well as hydropower station construction sites and ports.
Suitable Material:
It is used to transport loose materials or finished articles.
The belt conveyor can be used in the ambient temperature range of -20 ° C to +40 ° C, and the temperature of the conveyed material is below 50 ° C.
Performance Characteristics:
The conveyor belt moves according to the friction transmission principle, and has the advantages of large conveying capacity, long conveying distance, stable transportation, no relative movement of material and conveyor belt, low noise, simple structure, convenient maintenance, low energy consumption, standardization of components, etc.
Product Details
Belt Conveyor
Structure
Parameters of
Belt Conveyor
|
Belt width
(mm)
|
Conveying length(m)
Power(kw)
|
|
|
Conveying speed
(m/s)
|
Conveying amount
(t/h)
|
||
|
B400
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
30-60
|
||
|
|
3
|
3-4
|
4-7.5
|
|
|
||
|
B500
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
40-80
|
||
|
|
3
|
4-5.5
|
5.5-7.5
|
|
|
||
|
B650
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
80-120
|
||
|
|
4
|
7.5
|
7.5-11
|
|
|
||
|
B800
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
120-200
|
||
|
|
4
|
7.5
|
7.5-15
|
|
|
||
|
B1000
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
200-320
|
||
|
|
5.5
|
7.5-11
|
11-22
|
|
|
||
|
B1200
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
290-480
|
||
|
|
7.5
|
7.5-15
|
15-30
|
|
|
||
|
B1400
|
≤10
|
10-20
|
＜20-40
|
1.25-2.0
|
400-680
|
||
|
|
11
|
15-22
|
22-45
|
|
|
||
|
B1600
|
≤10
|
10-20
|
＜20-50
|
1.25-2.0
|
600-1080
|
||
|
|
15
|
22-30
|
30-75
|
|
|
||
|
B1800
|
≤10
|
10-20
|
＜20-50
|
1.0-2.0
|
200-1500
|
||
|
|
18.5
|
30-45
|
45-110
|
|
|
||
|
B2000
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1000-2000
|
||
|
|
22
|
45-55
|
55-132
|
|
|
||
|
B2400
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1500-3000
|
||
|
|
30
|
55-75
|
75-185
|
|
|
||
Shipping & Packaging
|
Ways Of Packing
|
|
|
|
|
||||
|
1
|
Small parts packed in the wooden cases
|
|
|
|
||||
|
2
|
Big parts packed by plastic membrane
|
|
|
|
||||
|
3
|
The whole big machine is loaded in the container
|
|
|
|
||||
|
Shipping
by sea freight
or any way the customer requires
|
|
|
|
|
||||
Company Introduction
Jiangxi JXSC Mining Machinery Co., Ltd.
was established in
1985
, it's a professional machinery factory special in
mining equipment
research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Southeast Asia, South America, Europe, Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda,Mozambique, Angola and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment ,quality is our eternal pursuit and responsibility.
Our Core Advantages
:
1. 40 years history FACTORY at mining machinery
2. Provide engineer team after sales service
3. Provide Complete set mineral processing plant
4. Provide Sample testing service in factory lab for free
5. Provide professional Mining Solution Consulting
2. Provide engineer team after sales service
3. Provide Complete set mineral processing plant
4. Provide Sample testing service in factory lab for free
5. Provide professional Mining Solution Consulting
Our Workshop:
Our Customers:
Our Exhibition:
We participate in various exhibitions frequently, such as Russian, Indonesia, Mongolia, South Africa, Ghana, Peru, Burma, Kazakstan, Tanzania, Morocco and Australia International Mining Exhibition and etc.
FAQ
1. Installation:
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Ours Warranty is 1 year for whole machinery .For wear parts, we guarantee the high quality parts for long-term supply.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1).you only need one set of crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
6. What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine's delivery time is 30 days.
7.What is the nearest port?
Xiamen, Guangzhou, Shenzhen port.
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Ours Warranty is 1 year for whole machinery .For wear parts, we guarantee the high quality parts for long-term supply.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1).you only need one set of crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. What could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment, drilling rig, loader, trucks, excavators and so on.
6. What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine's delivery time is 30 days.
7.What is the nearest port?
Xiamen, Guangzhou, Shenzhen port.
