Quick Details
-
Application:
-
Monitor
-
Interface:
-
FPC
-
Product name:
-

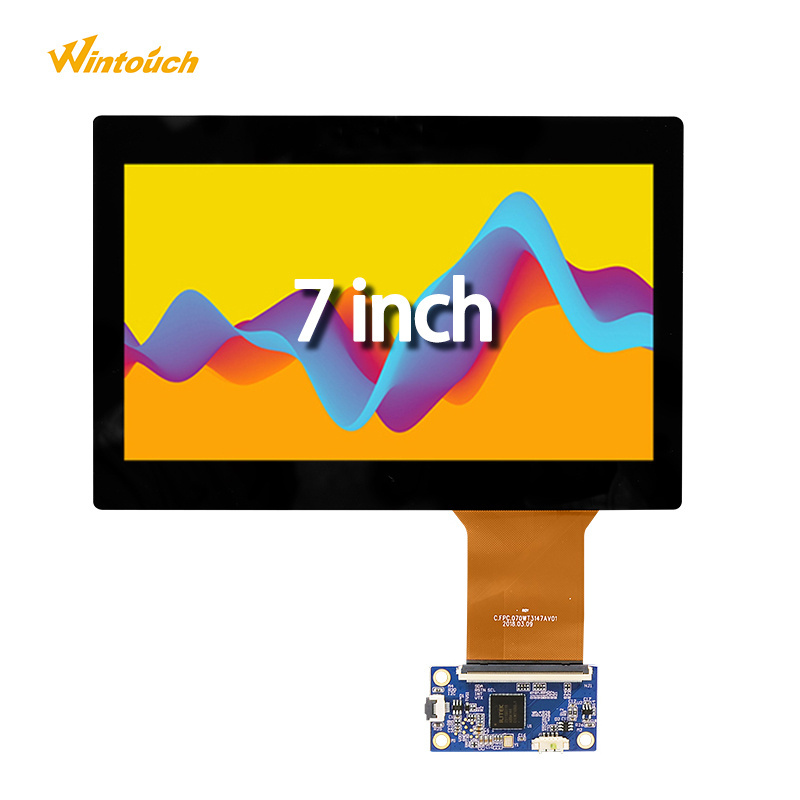

Touch Screen Panel Capacitance Oled Touch Screen Display Frame
-
Size:
-
7"
-
Touch points:
-
10 Points
-
Touch Screen:
-
Capacitive Touch
-
Touch type:
-
PCAP Touch Optional
-
Structure:
-
Cover Glass + Sensor Glass
-
Support Systems:
-
Window Xp/7/8/Android/ Liunx
-
Cover glass thickness:
-
0.5-6mm
-
Touch Interface:
-
USB/IIC/RS232
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wintouch
-
Model Number:
-
WT070-3147A
-
Application:
-
Monitor
-
Interface:
-
FPC
-
Product name:
-
Touch Screen Panel Capacitance Oled Touch Screen Display Frame
-
Size:
-
7"
-
Touch points:
-
10 Points
-
Touch Screen:
-
Capacitive Touch
-
Touch type:
-
PCAP Touch Optional
-
Structure:
-
Cover Glass + Sensor Glass
-
Support Systems:
-
Window Xp/7/8/Android/ Liunx
-
Cover glass thickness:
-
0.5-6mm
-
Touch Interface:
-
USB/IIC/RS232
-
Warranty:
-
1 Year
Products Description
Product Parameters
|
|
ITO Glass:T=0.7±0.05mm/0.8±0.05mm/1.1±0.05mm
|
|
|
|
Cover Glass:
T=1.1±0.05/1.8±0.05/2±0.05/2.1±0.05/3±0.05/4±0.05mm/Customizable
|
|
|
|
SCA=0.2mm
|
|
|
|
Controller:WEIDA/ILITEK/EETI/
|
|
|
|
Interface:USB+IIC
|
|
|
Surface hardness
|
≥6H
|
|
|
Transmittance
|
≥85%
|
|
|
Operation voltage
|
5V
|
|
|
Operation temperature
|
-20℃~+70℃，≤85%RH
|
|
|
Storage temperature
|
-30℃~+80℃，≤85%RH
|
|
|
ROHS
|
YES
|
|
|
Unspecification tolerance
|
±0.2mm
|
|
|
Size
|
5"to 55"/Customizable
|
|
|
Note
|
|
|
|
Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
|
|
|
