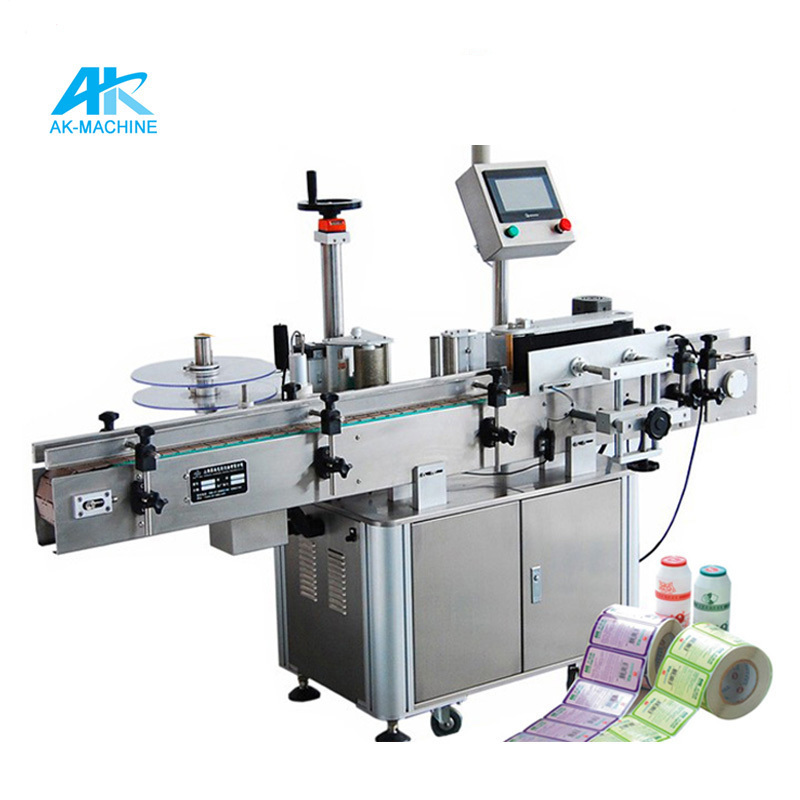

AK-SL100 Model Adhesive Sticker Labeling Machine /Wet Glue Sticker Applicator Label Machinery System

Sticker Labeling Machine

For the pharmaceutical, food, cosmetic and other industries round bottle labeling, can be affixed to the week and semicircular labeling labeling.

Optional automatic turntable Unscrambler can be directly connected to the front end production line, automatic feeding bottle into the labeling machine, increasing efficiency.

Optional configurations ribbon coding labeling machines, online print production date and batch number, reduce bottle packaging processes, improve production efficiency.

Application

For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

The following technical parameters for the standard model, other special requirements and functions can be tailored

Suitable label length (mm): 20mm ~ 314mm

Applicable Label width (backing paper width / mm): 15mm ~ 150mm

Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm

Height: 25mm ~ 230mm

Applicable standard roll diameter (mm): φ280mm

Applicable standard roll diameter (mm): φ76mm

Labeling accuracy (mm): ± 1mm

The standard speed (m / min): Servo: 5 ~ 25m/min

Stepping: 5 ~ 19m/min

Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)

Servo: 40 ~ 120pcs/min
