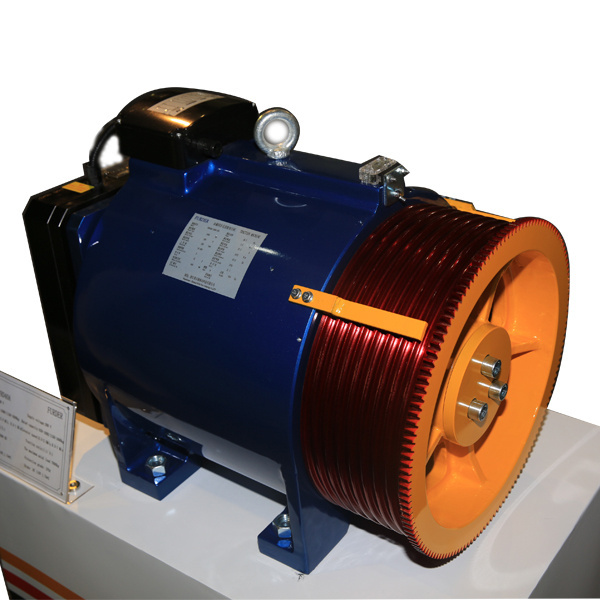

Load 1250-1600kg for passenger lift/elevator geraless traction machine

Load 1250-1600kg for passenger lift/elevator geraless traction machine

FOB Reference Price: Get Latest Price

≥5 Pieces

US $1760

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable:: Passenger Elevator

Model:: Synchronous

Load:: 1250-1600KG

Pulley size:: 400MM

Transportation:: Sea Delivery

Certificates:: ISO9001:2008

Color:: Black Red Blue Gray

Traction ratio:: 2:1

Quick Details

Place of Origin:: Zhejiang, China

Type:: Elevator Parts

Elevator Parts:: Traction System

Applicable:: Passenger Elevator

Model:: Synchronous

Load:: 1250-1600KG

Pulley size:: 400MM

Transportation:: Sea Delivery

Certificates:: ISO9001:2008

Color:: Black Red Blue Gray

Traction ratio:: 2:1

FRD40A Select Table

We have 4 major advantages：

1.In China only our brake design from Europe.Brake sound is very small.

2.We used the magnet and the shaft is the best.Magnet 35 SH.Shaft 40 RE.

3.The machine can withstand a maximum temperature of 160 degrees .

4.Our machine has good stability.8 year of maintenance-free,2 year warranty.

FDR40A

Protection grade:IP54

Rated capacity:1250-1600KG

The maximum axial load:7000KG

Brake:DC110V,1.7A*2

Model	Load (kg)	Speed (m/s)	Height (m)	Sheave Dia.(mm)	Rope Dia.(mm)	Groove (pcs)	Power (kw）	Rated Voltage (V)
FRD40A-1250-050	1250	0.50	≤50	400	10	7	4.2	380
FRD40A-1250-063		0.63	≤50			7	5.3
FRD40A-1250-080		0.80	≤50			7	6.7
FRD40A-1250-100		1.00	≤50			7	8.4
FRD40A-1250-150		1.50	≤80			7	12.5
FRD40A-1250-160		1.60	≤80			7	13.4
FRD40A-1250-175		1.75	≤80			7	14.6
FRD40A-1250-200		2.00	≤80			7	16.7
FRD40A-1250-250		2.50	≤80			7	20.8
FRD40A-1350-050	1350	0.50	≤80	400	10	7	4.5	380
FRD40A-1350-063		0.63	≤80			7	5.6
FRD40A-1350-080		0.80	≤80			7	7.2
FRD40A-1350-100		1.00	≤80			7	9
FRD40A-1350-150		1.50	≤80			7	13.5
FRD40A-1350-160		1.60	≤80			7	14.4
FRD40A-1350-175		1.75	≤80			7	15.8
FRD40A-1350-200		2.00	≤80			8	18
FRD40A-1350-250		2.50	≤80			8	22.5
FRD40A-1350-050	1600	0.50	≤80	400	10	8	5.4	380
FRD40A-1600-063		0.63	≤80			8	6.7
FRD40A-1600-080		0.80	≤80			8	8.5
FRD40A-1600-100		1.00	≤80			8	10.7
FRD40A-1600-150		1.50	≤80			8	16
FRD40A-1600-160		1.60	≤80			8	17.2
FRD40A-1600-175		1.75	≤80			8	18.7
FRD40A-1600-200		2.00	≤80			9	21.4
FRD40A-1600-250		2.50	≤120			9	26.7

Product Details

Zhejiang FURDER Drive Technology Co.,Ltd.

Zhejiang FURDER Drive Technology Co.,Ltd.is a professional manufacturers of permanent magnet synchronous gearless tractor integrating R&D,designing,manufacturing,selling and after-sales serice.

2016 WEE EXPO-5120

FURDER has established technical cooperation partnership with leader supplier of traction system in European elevator industry--Spain Cologne Co.,Ltd.,and they have deep cooperation in R&D,technical interation and support and others.
