Quick Details
-
Connection:
-
BSP
-
Certificate:
-
ISO,RoHS,CE,IEC
-
Name:
-
ball valve
-
Output torque:
-
6NM
-
Open/close time:
-
<30s
-
Wiring Diagram:
-
Please see below
-
voltage:
-
12v 24v 9-24v 220v 85-265v
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Standard or Nonstandard:
-
Standard
-
Enclosure:
-
IP65
-
Connection:
-
BSP
-
Certificate:
-
ISO,RoHS,CE,IEC
-
Name:
-
ball valve
-
Output torque:
-
6NM
-
Open/close time:
-
<30s
-
Wiring Diagram:
-
Please see below
-
voltage:
-
12v 24v 9-24v 220v 85-265v

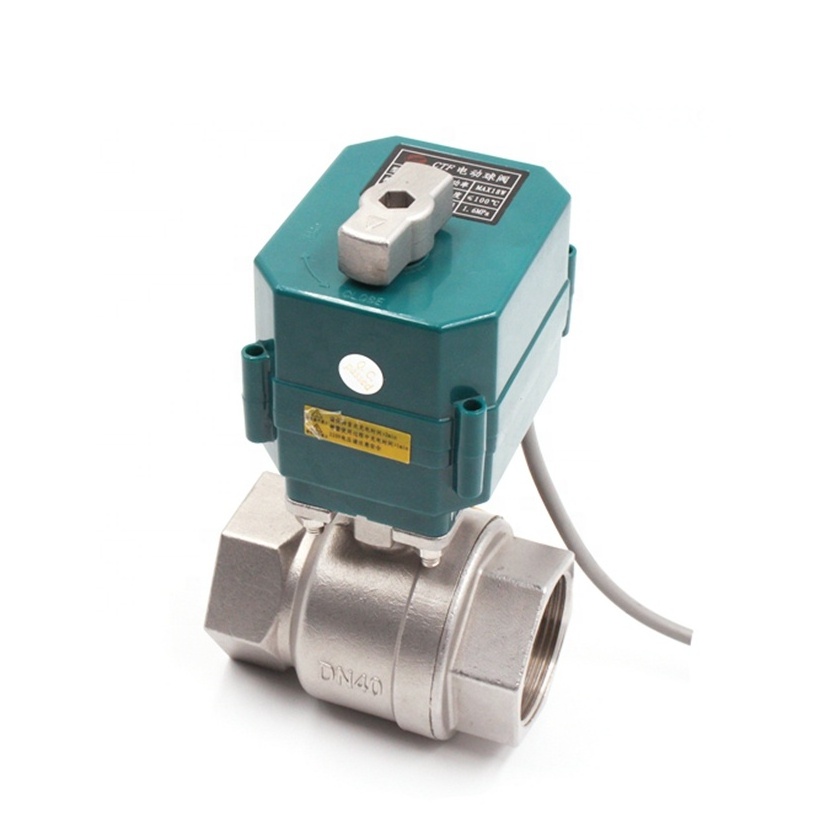

DN50 2'' 2-way DC12V/24V/220v stainless steel ball valve motorized actuator control valve
1. Simple design, compact size, 4-20ma adjustment, is the intermediate product
connecting civil and industrial valves.
2. The product running state LCD screen is visible and has manual and electric control
functions.
3. Adopt all-metal gear transmission, with reliable performance output torque, up to
10NM.
4. Adopt double limit of electrical and mechanical, accurate positioning and high
consistency.
5. The connection between the actuator and the valve body is ISO5211 standard, and
the flange type is F03 and F05, which is convenient for the user to match the valve
body.
6. The ball valve adopts the floating seal structure, no drop leakage, which is suitable
for heavy dirt and long period of no action.
7. Good sealing performance, the protection grade is IP65.
1. University LABS, automotive laboratories.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities;
4. Agricultural irrigation, environmental protection, water supply and drainage, water
treatment works;
5. Water-saving appliances, drinking water equipment, etc.
| SS304/316 | Sizes | d | L | H |
| DN15 | 15 | 62 | 55 | |
| DN20 | 20 | 71 | 63 | |
| DN25 | 25 | 81 | 78 | |
| DN32 | 32 | 93 | 84 | |
| UPVC | DN15 | 15 | 121 | 50 |
| DN20 | 20 | 135 | 62 | |
| DN25 | 25 | 150 | 69 | |
| DN32 | 32 | 165 | 82 |
