- Product Details
- {{item.text}}
Quick Details
-
Rated Lifting Moment:
-
kn
-
Max. Lifting Height:
-
5.8m
-
Span:
-
5m * 0.3t 5.8m*0.8t
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Showroom Location:
-
none
-
Product name:
-
Crawler Jib Crane
-
Type:
-
1.2 T Spider Crane
-
Maximum working radius:
-
5m * 0.3t
-
Maximum ground lift:
-
5.8m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm * 35m
-
Boom form:
-
4 -section boom , U-shaped high-strength manganese
-
Boom length/time:
-
1.7 m- 5 m/2 2 sec
-
Boom angle/time:
-
0-7 5 °/13sec
-
Rotation angle/speed:
-
0-360° (continuous)/60sec
Quick Details
-
Weight (KG):
-
1200
-
Application:
-
construction work
-
Rated Loading Capacity:
-
1.2 ton
-
Rated Lifting Moment:
-
kn
-
Max. Lifting Height:
-
5.8m
-
Span:
-
5m * 0.3t 5.8m*0.8t
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Showroom Location:
-
none
-
Product name:
-
Crawler Jib Crane
-
Type:
-
1.2 T Spider Crane
-
Maximum working radius:
-
5m * 0.3t
-
Maximum ground lift:
-
5.8m*0.8t
-
Hook up speed:
-
0-8m/min
-
Wire Rope Specifications:
-
8mm * 35m
-
Boom form:
-
4 -section boom , U-shaped high-strength manganese
-
Boom length/time:
-
1.7 m- 5 m/2 2 sec
-
Boom angle/time:
-
0-7 5 °/13sec
-
Rotation angle/speed:
-
0-360° (continuous)/60sec
Products Description
Introduction of 1.2/3/8 Ton Electric Mini Narrow Space Lifting Crane Folding Crawler Spider Cranes Hydraulic Crane Lifting Equipment
Spider crane generally refers to lifting equipment with a lifting capacity of less than 8 t and is easy to transport and use. It has the advantages of general flexibility and can be folded. Such as the installation of indoor glass, the hoisting of indoor wall panels, or the transportation of various small-quality goods up and down floors. To a certain extent, spider cranes can make up for the application limitations of crane machinery, so for indoor work, spider cranes are becoming more and more popular.zmwm02
Product Paramenters
Parameters of 1.2/3/8 Ton Electric Mini Narrow Space Lifting Crane Folding Crawler Spider Cranes Hydraulic Crane Lifting Equipment
|
Specification
|
|
1.2t
|
|
|
Maximum working radius
|
|
5m * 0.3t
|
|
|
Maximum ground lift
|
|
5.8m*0.8t
|
|
|
Max underground lift
|
|
---
|
|
|
winch
|
Hook up speed
|
0-8m/min
|
|
|
|
Wire Rope Specifications
|
Φ8mm * 35m
|
|
|
Telescopic device
|
Boom form
|
4 -section boom , U-shaped high-strength manganese
|
|
|
|
Boom length/time
|
1.7 m- 5 m/2 2 sec
|
|
|
undulating device
|
Boom angle/time
|
0-7 5 °/13sec
|
|
|
gyratory device
|
Rotation angle/speed
|
0-360° (continuous)/60sec
|
|
|
outrigger
|
Outrigger Action Form
|
Manual unscrewing + hydraulic automatic support (two legs)
|
|
|
|
Maximum extension (mm)
|
3800 (L) X 3000 (Rear) 、 (Front)
|
|
|
walking device
|
way of walking
|
Hydraulic motor drive, two-speed
|
|
|
|
Walking speed
|
0-2.5km/h
|
|
|
|
Gradeability
|
20° (36%)
|
|
Details Images

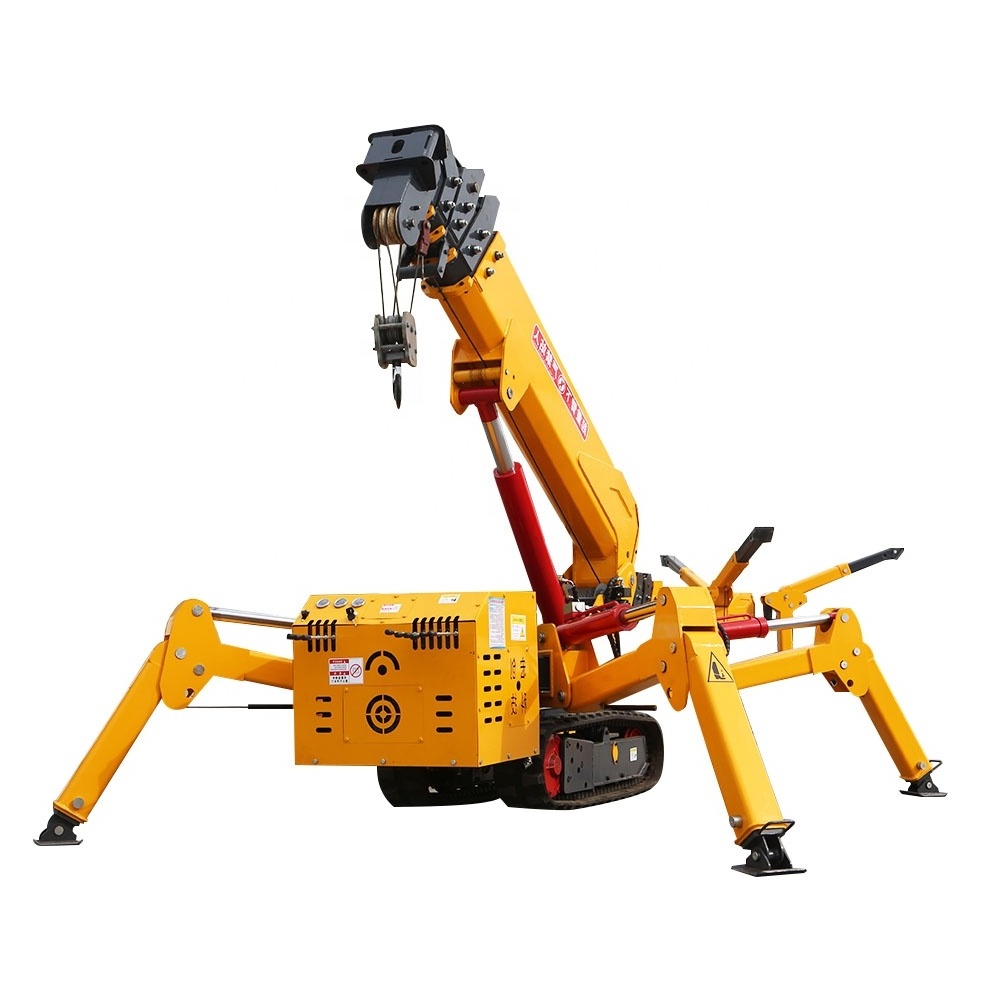

Photos of 1.2/3/8 Ton Electric Mini Narrow Space Lifting Crane Folding Crawler Spider Cranes Hydraulic Crane Lifting Equipment
FAQ
1.Factory
Q: Are you
Spider Crane
manufacturer?
A: We are the
Spider Crawler Crane
manufacturer. China Coal
Crawler Spider Crane
factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about
Electric Spider Crane
for sale?
A: Our
Lifting Crawler Crane
have a 12 months warranty after sale.
3. Packing
Q:What is the container size of
Spider Crane Hoist Crane
?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these
Spider Crawler Crane
, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
