Quick Details
-
Voltage:
-
220V/380V/440V/50HZ/60HZ
-
Dimension(L*W*H):
-
100*100*120, 100*100*120
-
Weight:
-
550, 550
-
Air capacity:
-
Customized
-
Gas Type:
-
biogas
-
HS:
-
8414809090
-
Color:
-
gray
-
KW:
-
11
-
Productivity:
-
500 pcs/month
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BW
-
Model Number:
-
CW-10/0.1-14, CW-10/0.1-14
-
Voltage:
-
220V/380V/440V/50HZ/60HZ
-
Dimension(L*W*H):
-
100*100*120, 100*100*120
-
Weight:
-
550, 550
-
Air capacity:
-
Customized
-
Gas Type:
-
biogas
-
HS:
-
8414809090
-
Color:
-
gray
-
KW:
-
11
-
Productivity:
-
500 pcs/month
-
Certification:
-
CE
|
Product Name
|

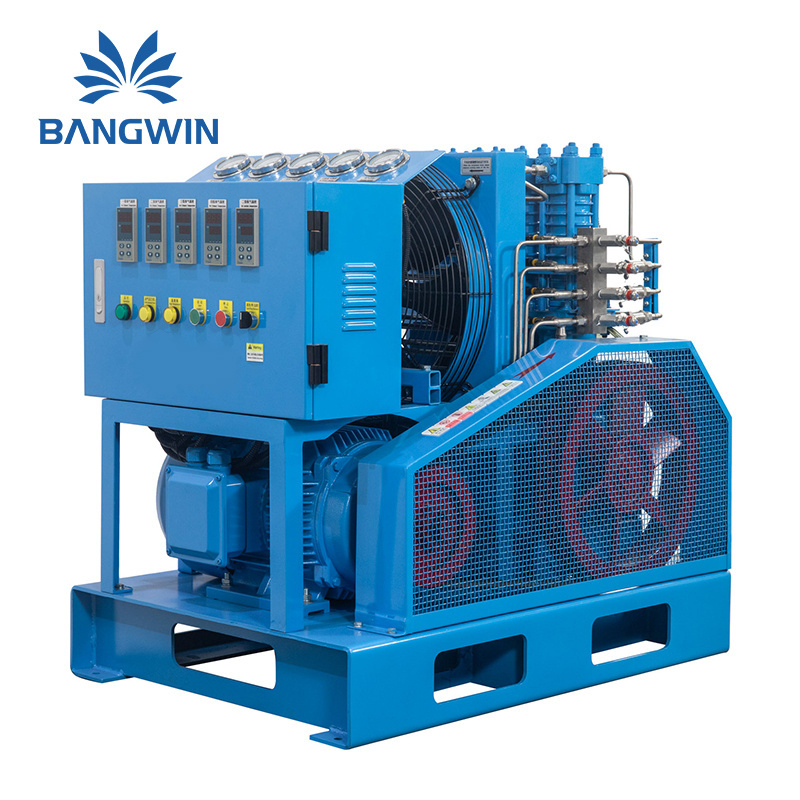

Oil-Free Booster Compressor
|
|
|
|
|||
|
Model No.
|
BW-3/5/10/15/20/30...
|
|
|
|
|||
|
Inlet Pressure
|
0.4Mpa( G )
|
|
|
|
|||
|
Exhaust Pressure
|
150/200Mpa( G )
|
|
|
|
|||
|
Type
|
High Pressure Oil Free
|
|
|
|
|||
|
Accessories
|
Filling Manifold, Piston ring, Etc
|
|
|
|
|||
|
Oilless High Pressure O2 Compressor Specification
|
|
|
|
|
|
|||||
|
NO.
|
Volume
|
Inlet pressure
|
Outlet pressure
|
Type
|
Cooling type
|
|||||
|
1
|
1-3m³
|
0.3-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
Wind
|
|||||
|
2
|
4-12m³
|
0.3-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
Wind
|
|||||
|
3
|
13-40m³
|
0.3-0.4MPa
|
15MPa
|
3 lines 3 stages W type
|
Water
|
|||||
|
4
|
13-60m³
|
0.2-0.4MPa
|
15MPa
|
2 lines 4 stages vertical type
|
Water
|
|||||
|
5
|
40-80m³
|
0.2-0.4MPa
|
15MPa
|
4 lines 4 stages S type
|
Water
|
|||||
|
6
|
80-120m³
|
0.2-0.4MPa
|
15MPa
|
4 lines 4 stages S type
|
Water
|
|||||
I
f you have compressor inquiry please tell us follows information when you send inquiry:
*Compressor working medium: If single gas ,how many purity ? if mixed gas , what’s gas content lit ?
*Suction pressure(gauge pressure):_____bar
*Exhaust pressure(gauge pressure):_____bar
*Flow rate per hour for compressor: _____Nm³/h
Compressor gas suction temperature:_____℃
Compressor working hours per day :_____hours
Compressor working site altitude :_____m
Environment temperature : _____℃
Has cooling water in the site or not ?______
Voltage and frequency for three phase :____________
Do not has water vapor or H2S in the gas ?______
Application for compressor?__________
