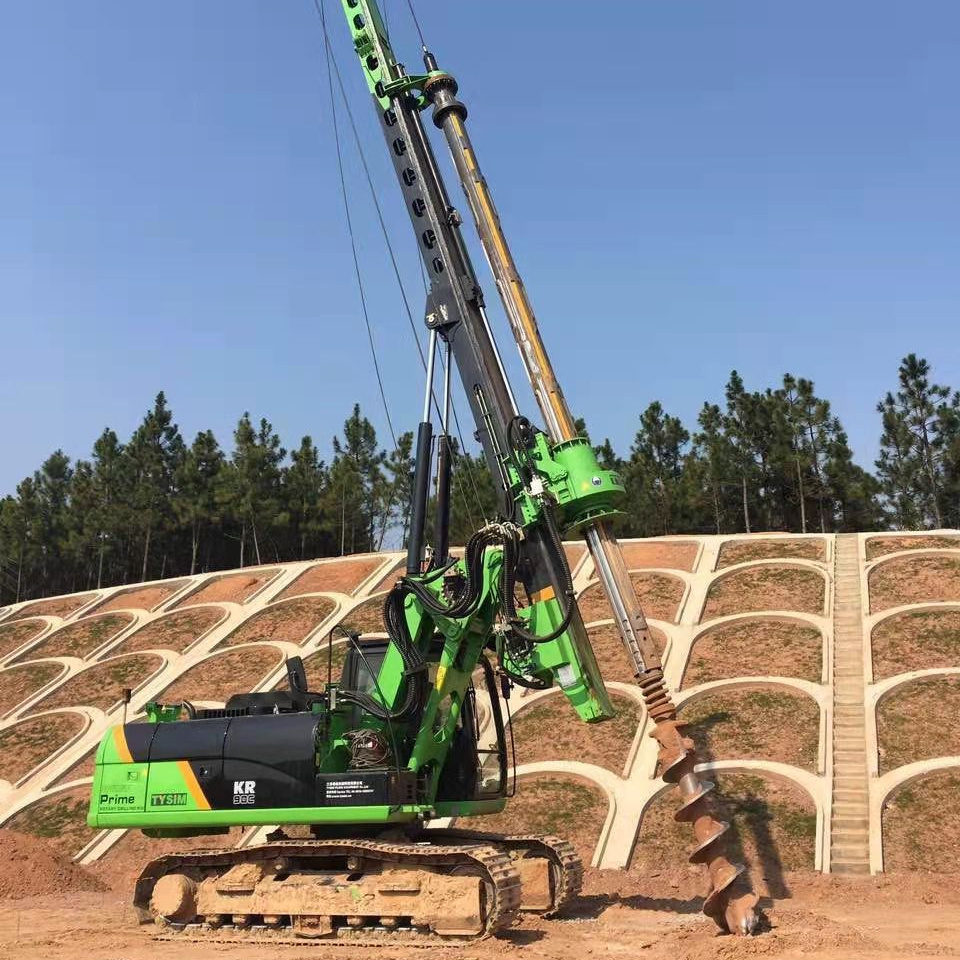

TYSIM Reliable Performance Hydraulic Drop Hammer Bore Pile Machine Rotary Drilling Rig

TYSIM Reliable Performance Hydraulic Drop Hammer Bore Pile Machine Rotary Drilling Rig

FOB Reference Price: Get Latest Price

≥1 Sets

US $244700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TYSIM

Weight:: 28000 kg

Dimension(L*W*H):: 13100*2600*3480mm

Main winch pull force:: 90kN

Main winch speed:: 75m/min

Auxiliary winch pull force:: 50kN

Auxiliary winch speed:: 40m/min

Max. torque:: 90kN.m

Max. drilling diamter:: 1000/1200mm

Max. drilling depth:: 36/28m

Working speed:: 8~30rpm

Max. cylinder pressure:: 90kN

Max. hoist capacity:: 120kN

Quick Details

Marketing Type:: New Product 2022

Efficiency:: 88/1800 kW/rpm

Place of Origin:: Jiangsu, China

Brand Name:: TYSIM

Weight:: 28000 kg

Dimension(L*W*H):: 13100*2600*3480mm

Main winch pull force:: 90kN

Main winch speed:: 75m/min

Auxiliary winch pull force:: 50kN

Auxiliary winch speed:: 40m/min

Max. torque:: 90kN.m

Max. drilling diamter:: 1000/1200mm

Max. drilling depth:: 36/28m

Working speed:: 8~30rpm

Max. cylinder pressure:: 90kN

Max. hoist capacity:: 120kN

Products Description

Technical Specification of KR90C Rotary Drilling Rig
Type	KR90C
Torque	90 kN.m
Max. drilling diameter	1000/1200 mm
Max. drilling depth	36/28m
Working speed	8~30 rpm
Max. cylinder pressure	90 kN
Max. hoist capacity	120 kN
Main winch pull force	90 kN
Main winch line speed	75m/min
Auxiliary winch pull force	50 kN
Auxiliary winch line speed	40 m/min
Max. cylinder trip	3500 mm
Mast side raking	±3°
Mast raking forward	4°
Max. operating pressure	35 MPa
Max. pilot pressure	3.9 MPa
Max. moving speed	2.8 km/h
Max. tractive force	156 kN
Operating height	14550 mm
Operating width	2600 mm
Transport height	3480 mm
Transport width	2600 mm
Transport length	13100 mm
Overall weight	28t

Construction Photos

Product packaging

Our Advantages

Obtained more than 40 patents and exported to more than 40 countries.

A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.

Customer Visit

Exhibition

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is an year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
