Quick Details
-
Production Capacity:
-
30-60bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)980*(w)680*(H)1850mm
-
Max roll film width:
-
320mm
-
Bag making length:
-
50-200mm
-
Bag making width:
-
40-150mm
-
Packing speed:
-
1500-2200 bags / hour
-
Machine weight:
-
400kg
-
Material:
-
304 stainless steel material
-
Weighing system:
-
Piston pump
-
working progress:
-
auto feeding weighing packing
-
Controller:
-
Micro Computer Control
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Paper, Plastic, Other
-
Production Capacity:
-
30-60bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)980*(w)680*(H)1850mm
-
Max roll film width:
-
320mm
-
Bag making length:
-
50-200mm
-
Bag making width:
-
40-150mm
-
Packing speed:
-
1500-2200 bags / hour
-
Machine weight:
-
400kg
-
Material:
-
304 stainless steel material
-
Weighing system:
-
Piston pump
-
working progress:
-
auto feeding weighing packing
-
Controller:
-
Micro Computer Control
-
After Warranty Service:
-
Video technical support

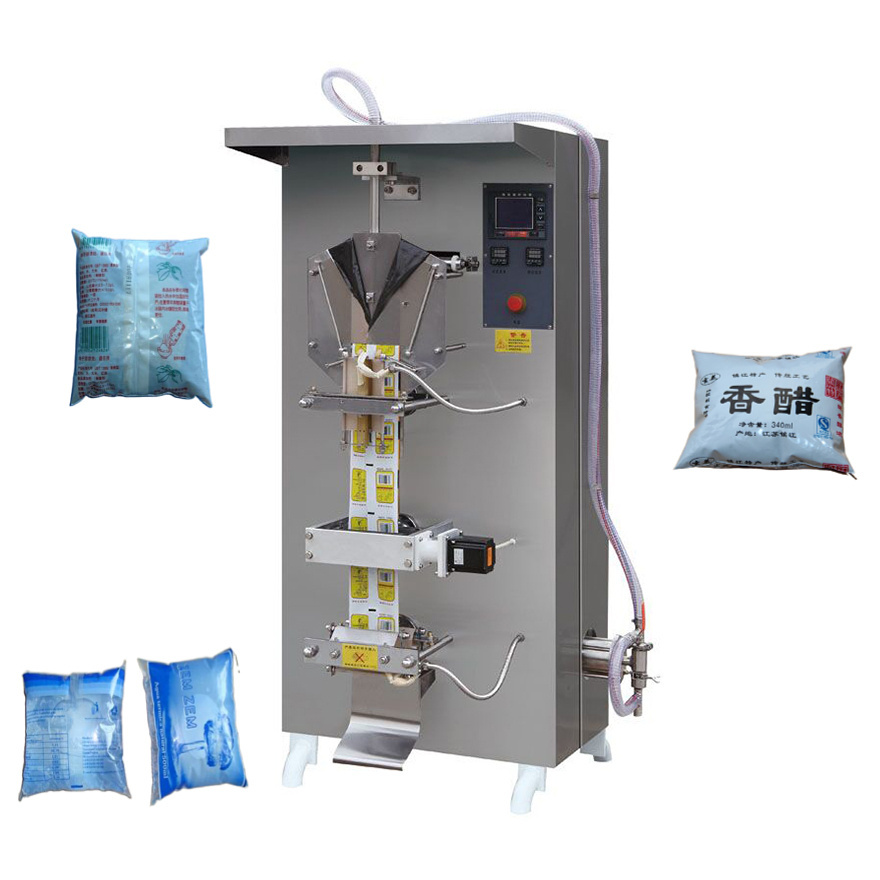

GOLDSEN Water packaging machine widely applied for various kinds of liquid , like Water, Milk, soy sauce.
1. Auto Film Feeding+ Vertical Forming Sealing + Horizontal Sealing + Quantitive Filling + Uv System + Date Coding / Counting
2. Frame and Liquid Contacting parts are S.S304. Equipped with water pump for the water filling purpose and motor and speed reducer control unit for the speed control of the film distribution system.
3. Film dispensing unit: is composed of film setting system, film guiding SS304 steel post, vertical thermal heating sealing rubber and the copper system, horizontal thermal sealing and cutting system. The film will be forming according to the film setting process, to make the bags ready for filling water.
4. Filling unit: is composed of water pump, inlet control valve, Quantities will be depending on the piston type filler.
5. Auto sealing system: is composed of the film inlet guiding post, wheel, and the thermal heating modular, thermal heating tube, temperature controller, and pressure adjusting spring valve.
6.Film output system: is composed of SS304 sliding rail plate.
7.Electrical control system: is composed of control panel, wiring, and the AC contactor system.
8.UV sterilizer and date coder is equipped on the machine
9.Data counting unit is equipped on the touch screen
| Model | GD-1000 | GD-2000 | GD-3000 |
| Production capacity | 1500-2200bag /hour | 1300-1800bags/hour | 1300-1500bags/hour |
| Max Roll film width | 320mm | 380mm | 450mm |
| Bag Length | 50-150mm | 50-250mm | 50-300mm |
| Bag width | 40-150mm | 40-175mm | 50-215mm |
| Dimension | 880*780*1800mm | 1050*850*2050mm | 1200*1100*2250mm |
| Power | 220v 1.6kw | 220v 2.5kw | 220v 3kw |
| Weight | 400kg | 450KG | 500KG |
