Quick Details
-
Voltage:
-
220v
-
Power:
-
1.8KW
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
Customized
-
Year:
-
2020
-
Name:
-
Cutting equipment
-
Usage:
-
Slicing fruit and vegetable
-
Material:
-
Stainless Steel
-
Package:
-
Wooden Case
-
Capacity:
-
Customized
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shouchuang
-
Type:
-
Fruit vegetable processing machine
-
Voltage:
-
220v
-
Power:
-
1.8KW
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
Customized
-
Year:
-
2020
-
Name:
-
Cutting equipment
-
Usage:
-
Slicing fruit and vegetable
-
Material:
-
Stainless Steel
-
Package:
-
Wooden Case
-
Capacity:
-
Customized
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support

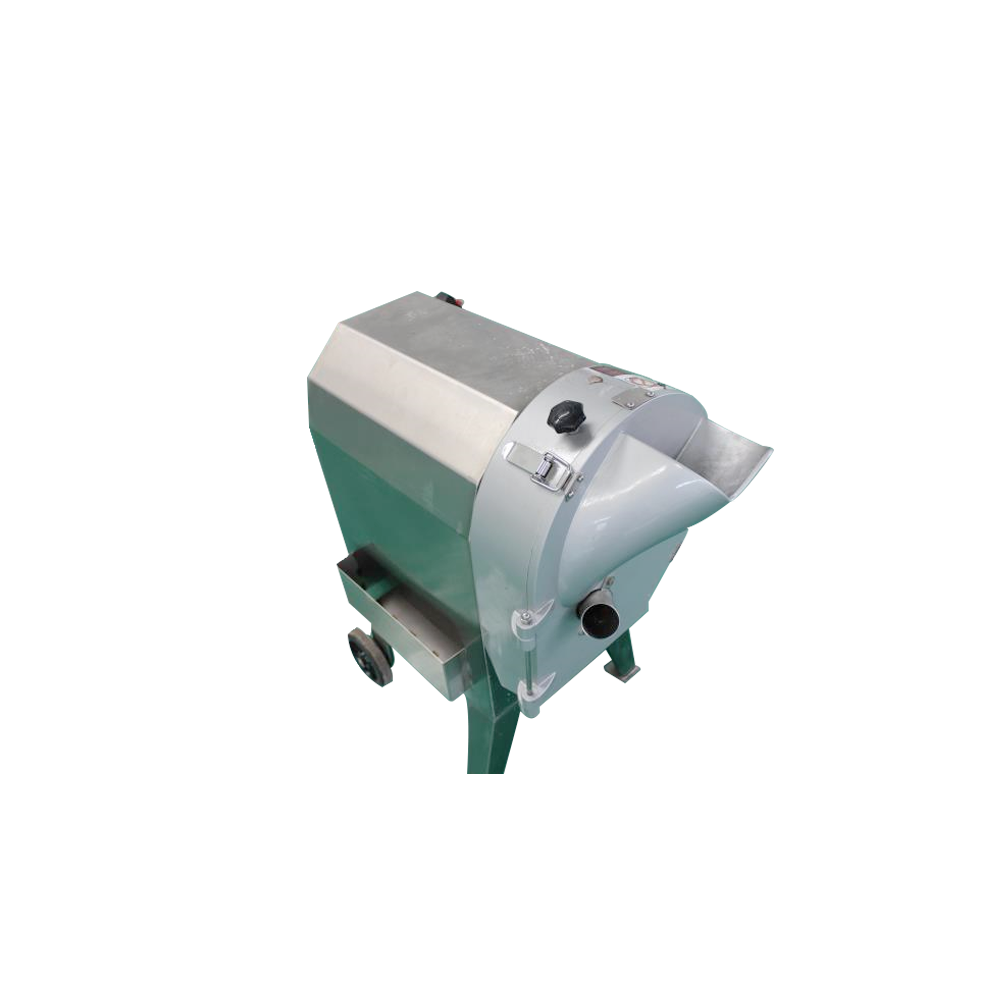

Description of vegetable cutting slicing machine
This machine is a multi-functional vegetable cutting machine developed according to the requirements of our customers through many experiments and improvements. The machine is small in size, high in efficiency, simple in structure and not easy to be damaged. It is an ideal machine for cutting and slicing.
The structure of vegetable cutting slicing machine
]
Features and functions
The barrel of this machine is made of stainless steel, clean and sanitary. Durable, suitable for small and medium-sized canteens, restaurants, hotels.
This machine can cut silk, slice, dice and cut stuffing. The processing specification can get the specification you need by changing the gasket. The slicing blade can be cut into pieces when working alone. The slicing cutter can be cut into wires when cutting. The cut silk can be cut into dices and fillings.
Cutting range
Slice: 2-10 mm
Cut wire: 2-10 mm
Cutting: 8mm, 10mm, 12mm, 15mm, 20mm
Specification
|
Model |
SCh3-8 |
|
voltage |
220/380V |
|
power |
1.5KW |
|
weight |
70kg |
|
size |
850*600*500 |
|
output |
600-1500kg |
Operation and instructions
1. The machine shall be placed on the horizontal work site stably;
2. Before use, check all parts, whether the switch and power line are damaged due to transportation, whether the fastener is loose, and whether there is any foreign matter in the slicing mechanism;
3. Turn on the power and check whether the steering direction of the dial is consistent with the indicated direction; if not, adjust the motor steering;
4. There should be no impact, vibration and any abnormal sound when the car is running empty, otherwise it should be checked and eliminated before use;
5. The slice thickness adjustment slice mechanism is used for slice of potato, radish and other melon and potato hard dishes, and the slice thickness can be adjusted between 1-10 mm according to the requirements.
The blade is fixed on the wall of the material barrel. The blade should have a gap of 0.5-1mm with the dial. The slice thickness can be obtained by adjusting the screws on both sides of the movable plate. After adjustment, tighten the nuts .
Certifications
Our customers
Our team
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacturer,we are factory, we provide perfect product and after-sale service.
Q:Where is your factory?
A:We are in Gaoping District,Nanchong City of Sichuan P.R.China.
Q: Can you send me the video to show how the machine works?
A: Yes,we can, we have made video of every machine.
Q:How long is the guarantee?
A:we promise guarantee as one year for non-human damage factor.
