Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
≥30T
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Return and Replacement, Field installation, commissioning and training, Free spare parts
-
Brand Name:
-
HOWO
-
Place of Origin:
-
Shanghai, China
-
Dimensions (L x W x H) (mm):
-
8300*3300*4340
-
Cargo Tank Dimension:
-
5500*3100*1800
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
≥30T
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Return and Replacement, Field installation, commissioning and training, Free spare parts
-
Brand Name:
-
HOWO
-
Place of Origin:
-
Shanghai, China
-
Dimensions (L x W x H) (mm):
-
8300*3300*4340
-
Cargo Tank Dimension:
-
5500*3100*1800
Product Overview

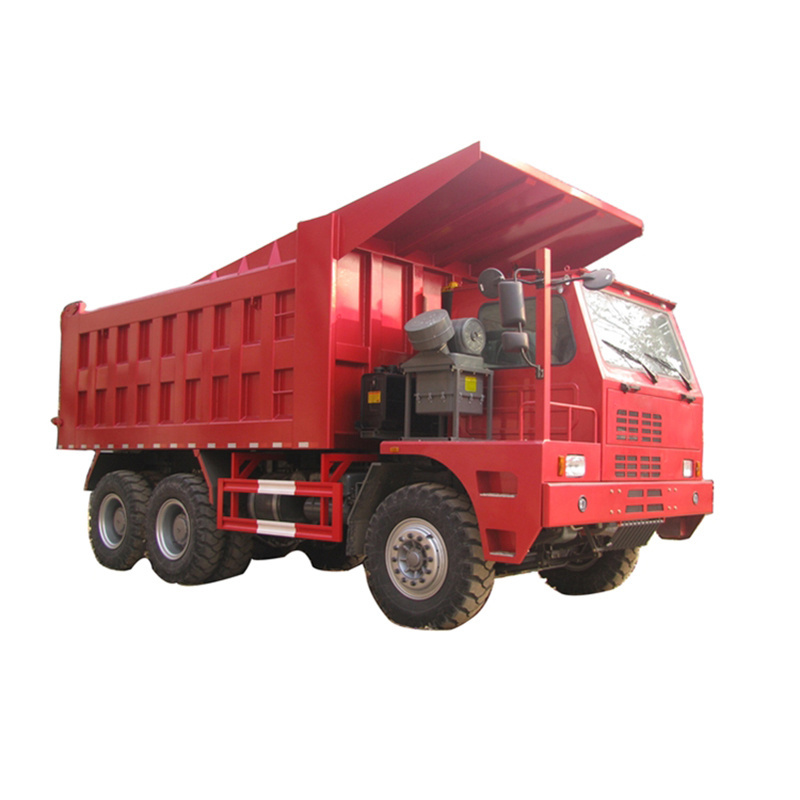

HOWO 70Ton Off-Highway Mining Dump Truck 371HP Price On Sale
The Howo Mine dump truck is an all new type of off-road vehicle developed by CNHTC for use in various harsh environments such as open-pit mines, steel mines, hydroelectric construction sites, and wharfs.
PRODUCT SPECIFICATIONS
|
Model
|
ZZ5707S3640AJ
|
ZZ5707S3840AJ
|
ZZ5707S4040AJ
|
ZZ5707S4840AJ
|
||||
|
Engine(Hp)
|
371
|
371
|
371
|
371
|
||||
|
Transmission
|
HW19710
|
HW19710
|
HW19710
|
HW19710
|
||||
|
Front axle
|
HF12
|
HF12
|
HF12
|
HF12
|
||||
|
Rear axle
|
AC26
|
AC26
|
AC26
|
AC26
|
||||
|
Steering
|
ZF8098
|
ZF8098
|
ZF8098
|
ZF8098
|
||||
|
Tyres
|
14.00-25(36PR)
|
14.00-25(36PR)
|
14.00-25(36PR)
|
14.00-25(36PR)
|
||||
|
Carriage Dimension
|
5500x3100x1800
|
5800x3100x1800
|
6200x3100x1800
|
7500x3100x2600
|
||||
|
Cubage (m3)
|
30.69
|
32.364
|
34.596
|
60.45
|
||||
|
Steel thickness of Carriage
|
Floor:14/Side:12
|
Floor:14/Side:12
|
Floor:14/Side:12
|
Floor:14/Side:12
|
||||
|
Hydraulic Lift of Carriage
|
Front Lift
|
Front Lift
|
Front Lift
|
Front Lift
|
||||
|
Overall Dimension
|
8300×3300×4340
|
8600×3300×4340
|
9000×3300×4340
|
10300×3300×4340
|
||||
|
Wheel base (mm)
|
3600+1500
|
3800+1500
|
4000+1500
|
4800+1500
|
||||
|
Cab
|
|
|
|
|
||||
|
SINOTRUK HW7D single side cab,no bunk,left driving,air conditioner
|
|
|
|
|
||||
|
Engine
|
|
|
|
|
||||
|
Model
|
WD615.47
|
|
|
|
||||
|
Horsepower
|
371
|
|
|
|
||||
|
Maximum output Kw/r/min
|
273/2200
|
|
|
|
||||
|
Type
|
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
|
|
|
|
||||
|
Bore x Stroke
|
126x130mm
|
|
|
|
||||
|
Valve
|
2
|
|
|
|
||||
|
Displacement
|
9.726L
|
|
|
|
||||
|
Make SINOTRUK (CNHTC), Euro 2 emission standard, Rigid fan.Option:Cold-start with electric-inlet-air heating System
|
|
|
|
|
||||
|
Transmission
|
|
|
|
|
||||
|
SINOTRUK HW19710 transmission,10 forward and 2 reverse with HW70 power takeoff
|
|
|
|
|
||||
|
Front Axle
|
|
|
|
|
||||
|
SINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes.
|
|
|
|
|
||||
|
Rear Axles
|
|
|
|
|
||||
|
SINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR
axle,ratio:10.47;Option:8.51 |
|
|
|
|
||||
|
Tyres
|
|
|
|
|
||||
|
Rims:10.0-25,12 hole-steel ;Tyres:14.00-25(36PR) Mining tyre with 1 Spare tire.Option:14.00R25 Mining radial tyre
|
|
|
|
|
||||
|
Oil Tank
|
|
|
|
|
||||
|
D type-500L Aluminum alloy fuel tank
|
|
|
|
|
||||
|
Optional
|
|
|
|
|
||||
|
Independent heating system
|
|
|
|
|
||||
