- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
50-60HZ
-
Welding Area:
-
Depend
-
Dimensions:
-
485x285x280 mm
-
Use:
-
banner welding
-
Weight (KG):
-
15 KG
-
Power:
-
800-1600W
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

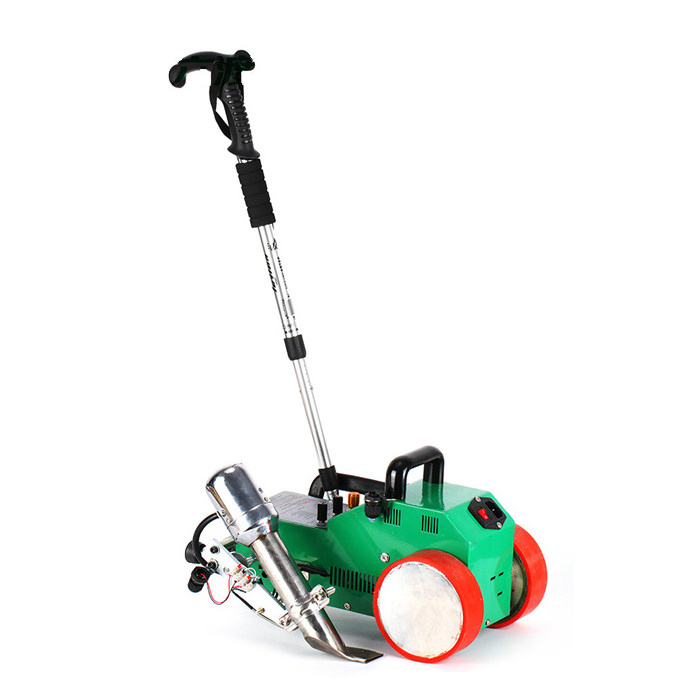

High Frequency PVC Flex Banner Hot Air Welder For Vinyl
-
Type:
-
welding machine
-
Quality:
-
Brand New & High Quality
-
MOQ:
-
1
-
Package:
-
by carton
-
Place of rigin:
-
China
-
Largest welding width:
-
3-4cm
-
Welding thickness:
-
0.2-1mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
None
-
Voltage:
-
220/230V
-
Frequency:
-
50-60HZ
-
Welding Area:
-
Depend
-
Dimensions:
-
485x285x280 mm
-
Use:
-
banner welding
-
Weight (KG):
-
15 KG
-
Power:
-
800-1600W
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
High Frequency PVC Flex Banner Hot Air Welder For Vinyl
-
Type:
-
welding machine
-
Quality:
-
Brand New & High Quality
-
MOQ:
-
1
-
Package:
-
by carton
-
Place of rigin:
-
China
-
Largest welding width:
-
3-4cm
-
Welding thickness:
-
0.2-1mm
Product Description
LC3000C-new is euipped with handle and red laser pointer. It is the advanced of the troditional model. It is more Humane and more reliable. It is also used the constand temperature techonology. The temperature Fluctuation can be controlled within ±1°C. Improted from Switzerland. Its lifetime is very long, during the using time, no need replace the heating element.
Advantages
1.Its used the digital temperature constant technology.
2.Its temperature fluctuation is within ±1℃.
3.Its equipped with AC motor,the wind is stronger and the lifetime is longer.
4.We have perfessional R&D department,we have all the key technology,the quality of the machine can be controlled.
2.Its temperature fluctuation is within ±1℃.
3.Its equipped with AC motor,the wind is stronger and the lifetime is longer.
4.We have perfessional R&D department,we have all the key technology,the quality of the machine can be controlled.
APPLICATION
The automatic welding machine is designed to weld plastic materials. The automatic welding machinecan weld advertising inkjet fabric, inkjet cloth, light box cloth, thick PVC cloth, mesh cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, Pp plastic materials that can be hot melted. It is small, light and easy to operate. It is equipped with temperature feedback sensor. The sensor can always monitoring the temperature of the outlet to keep a constant temperature. It uses advanced PID control technology, and adjust the power to make the temperature more constant automatically,the fluctuation is within 5 degrees. This function can make the welding result stronger. It also can avoid leakage. This machine is more suited to fast welding of large roofs.
ITEM
|
PARAMETER
|
|
Voltage
|
220/230V
|
|
Frequency
|
50-60Hz
|
|
Whole Power
|
800-1600W
|
|
Air volume
|
21m³/h
|
|
Air pressure
|
3000Pa
|
|
Temperature range
|
20-500℃
|
|
Welding speed
|
0.8-10 m/min
|
|
Welding thickness
|
0.2-1mm
|
|
Largest welding width
|
3-4cm
|
|
Net weight
|
15Kg
|
|
Outside dimensions
|
485×285×280 mm
|
|
Electric shock protection category
|
|
